High Precision Heavy Duty Horizontal Lathe Range of Spindle Speed r.p.m 3.15 315 r.p.m
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | AL-1250C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $48,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1400 Mm | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 Kw | Voltage: | 220/380V |
| Dimension(L*W*H): | 6020x1995x2325 Mm | Weight (KG): | 30000 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Heavy Duty Horizontal Lathe | Keyword: | Heavy Duty Horizontal Lathe |
| Workpiece Length: | 1400mm | Processing Capacity: | Heavy Duty |
| Spindle Bore: | 130 Mm | Name: | Horizontal Lathe |
| Product Name: | Tornos Horizontal | Color: | Customized Option |
| Main Motor Power: | 22 Kw | Loading Capacity: | 10000 Kg (opt: 12000) |
| Condition: | New | Showroom Location: | Egypt, Canada, United States, Germany, Indonesia, Russia, Thailand, Bangladesh, South Africa, Uzbekistan, Malaysia |
| Spindle Bore(mm): | 130 Mm | Max. Turned Length (mm): | 2800 Mm |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Core Components: | Bearing, Other |
| Port: | China Port | ||
Product Description
Products Description

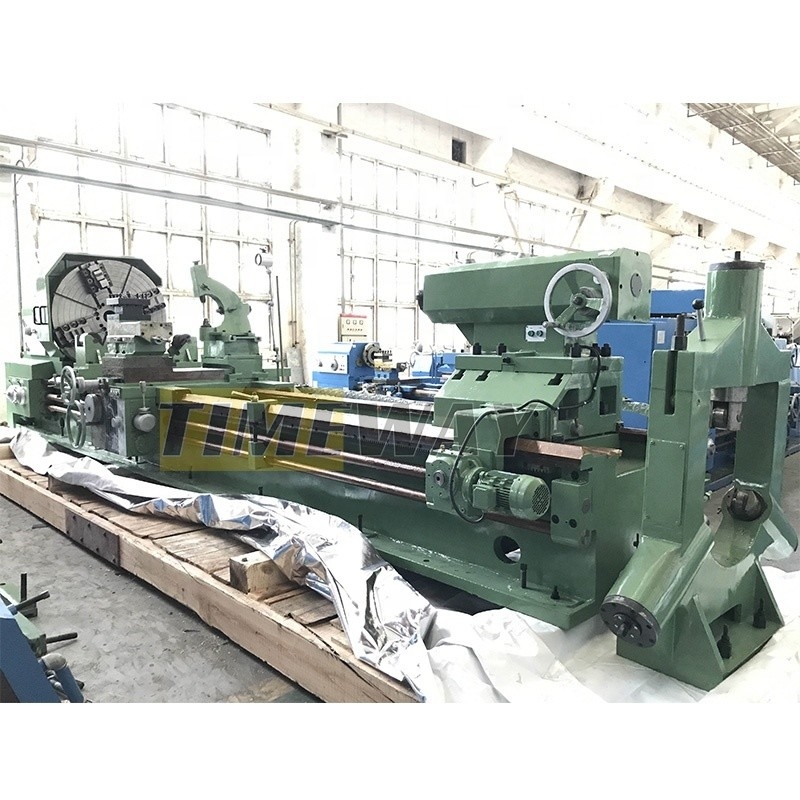

Heavy Duty Horizontal Lathe
Specification | Unit | AL-1250C | AL-1400C | AL-1600C | ||
Max. swing over bed | mm | 1250 | 1400 | 1600 | ||
Max. swing over cross slide | mm | 865 | 1010 | 1210 | ||
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- | ||||
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- | ||||
Bed width | mm | 970 | 970 | 970 | ||
Max. cutting force | N | 45000 | 45000 | 45000 | ||
Loading capacity | kg | 10000 (opt: 12000) | 10000 (opt: 12000) | 10000 (opt: 12000) | ||
Spindle bore | mm | 130 | 130 | 130 | ||
Main motor power | kw | 22 | 22 | 22 | ||
Machine length | mm | 6020/7020/8020/9020/11020/13020/15020/- | ||||
Machine width | mm | 1995 | 1995 | 1995 | ||
Machine height | mm | 2175 | 2325 | 2525 | ||
· 4-jaw heavy duty independent chuck, · Steady rest, · Follow rest, · Dead center, · 4-station tool post, · Cooling system, · Work lamp, · Electric moving tailstock, · Tools & tool-box, · Leveling wedge and bolts, · Operation manual (English) | · 2 or 3-axis DRO, · Chuck guard, · Tool-post guard, · Rear splash guard, · Roller support, · Grinding attachment. |
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
