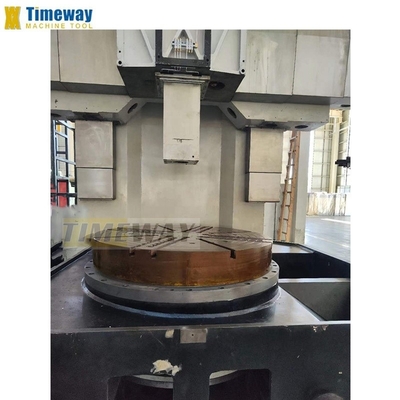

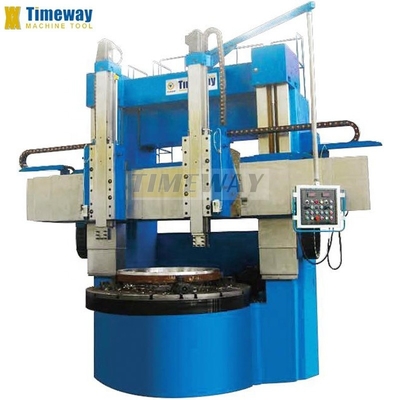

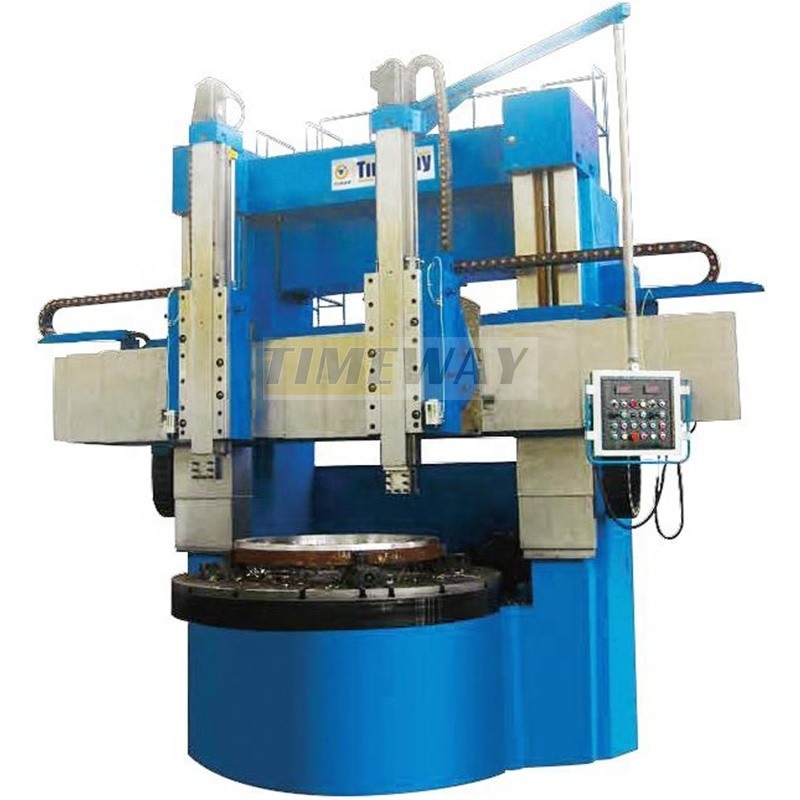

VDL Series Double Column Vertical Lathe with 32400 KG Weight 2500 mm Workpiece Length
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | VDL2500E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $81,000.00/sets 1-1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2500 Mm | Range Of Spindle Speed(r.p.m): | 2 - 63 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | VERTICAL |
| Spindle Motor Power(kW): | 55 Kw | Voltage: | 220/380V |
| Dimension(L*W*H): | 5040x4400x6200 Mm | Weight (KG): | 32400 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Double Column Vertical Lathe | Keyword: | Vertical Lathe |
| Model: | VDL2500E | Max. Turning Diameter: | 2500 Mm |
| Max. Processing Height Of Workpiece: | 1600/2000/2500 Mm | Max. Height Of Workpiece: | 12/16 T |
| Max. Torque Of Worktable: | 63 KN.m | Worktable Diameter: | 2250 Mm |
| Worktable Speed Range: | 2-63 Rpm (16 Step) | Tool-post Swivel Angle: | ±30° |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location: | Egypt, Canada, Turkey, United States, Italy, Germany, Philippines, Brazil, Peru, Indonesia, Russia | Core Components: | Bearing, Other, PLC |
| Spindle Bore(mm): | 69 | Max. Turned Length (mm): | 2250 Mm |
| Port: | China Port | ||
Product Description
Products Description
Specifications | Units | VDL2500E | VDL3150E | VDL3500E | VDL4000E |
Max. turning diameter | mm | 2500 | 3150 | 3500 | 4000 |
Max. processing height of workpiece | mm | 1600/2000/2500 | 1600/2000/2500 | 1600/2000/2500 | 1600/2000 |
Max. height of workpiece | t | 12/16 | 12/16 | 12/16 | 12/16 |
Max. cutting force of vertical tool-post | KN | 35(right)/30(left) | 35(right)/30(left) | 35(right)/30(left) | 35(right)/30(left) |
Max. torque of worktable | KN.m | 63 | 63 | 63 | 63 |
Worktable diameter | mm | 2250 | 2500/2830 | 2830/3150 | 3150/3600 |
Worktable speed range | rpm | 2-63 (16) | 2-63 (16) | 2-63 (16) | 2-63 (16) |
Tool-post feed speed range (stepless) | mm/min | 0.2-500 | 0.2-500 | 0.2-500 | 0.2-500 |
Tool-post rapid feed speed | mm/min | 3000 | 3000 | 3000 | 3000 |
Tool-post swivel angle | ° | ±30° | ±30° | ±30° | ±30° |
Tool-post cross travel | mm | 1400 | 1730 | 1920 | 2165 |
Ram vertical travel | mm | 1000/1250 | 1000/1250 | 1000/1250 | 1000/1250 |
Tool shank section | mm | 40x50 | 40x50 | 40x50 | 40x50 |
Main motor power | kw | 55 | 55 | 55 | 55 |
Machine dimensions (LxWxH) | cm | 504x440x620 | 639x465x560 | 746x540x620 | 795x752x620 |
Machine weight | t | 32.4/34.4/36.5 | 36/37/38 | 40.1/42.2/44.4 | 42/44 |
▪ Operating panel ▪ Manual pentagon tool post▪ Tool holder (1pc) ▪ Boring tool holder (1pc) ▪ Chuck jaws (4pcs) ▪ Hydraulic system ▪ Work lamp ▪ Lubrication system ▪ General tools ▪ Foundation bolts & leveling pads ▪ operation manual (English) | ▪ Side tool post ▪ 2-axes DRO |
