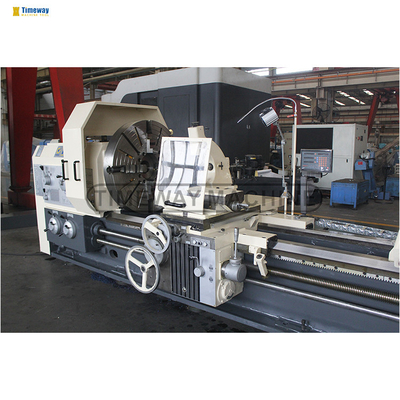

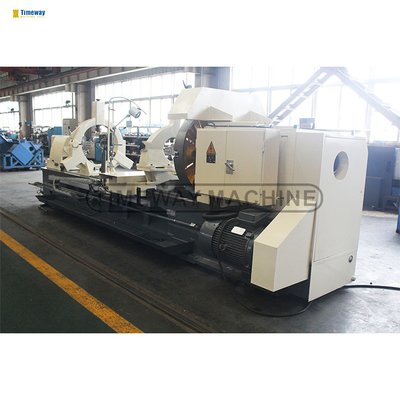

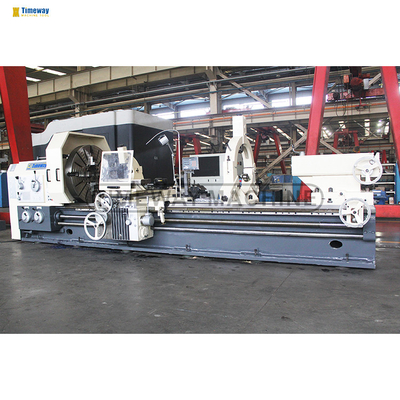

Horizontal Heavy Duty Lathe Machine for Max. Turned Length of 2800 mm in Production
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | AL-1000B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80,000.00/sets 1-2 sets |
| Packaging Details: | wooden case or plywood case |
| Supply Ability: | 50 Set/Sets per Month . |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 775 |
| Type: | Horizontal | Spindle Motor Power(kW): | 22 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 6100x2150x1820 Mm |
| Weight (KG): | 15000 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Workpiece Length: | 3000 Mm |
| Processing Capacity: | Heavy Duty | Max. Weight Of Workpiece: | 6 Or 8 Tons |
| Spindle Bore: | 130mm | Name: | Parallel Lathe |
| Color: | Optional | Processing: | Metal Working Lathe Machine |
| Distance Between Centers: | 1500-12000mm | CNC Or Not: | Nomal |
| After Selling Service: | Online Support | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Russia, South Africa | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel |
| Max. Turned Length (mm): | 2800 Mm | Year: | 2020 |
| Port: | China Port | ||
Product Description
Summary
1. This servies Horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals.
2. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal and external threads,such as metrical, inch, modulus and diametrical.
3. The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting;
4. When finished, the roundness error is not more than 0.01 mm, the cylindrical degree error is not more than 0.03 mm in the measuring length of 300 mm.
3. The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting;
4. When finished, the roundness error is not more than 0.01 mm, the cylindrical degree error is not more than 0.03 mm in the measuring length of 300 mm.
Products Description

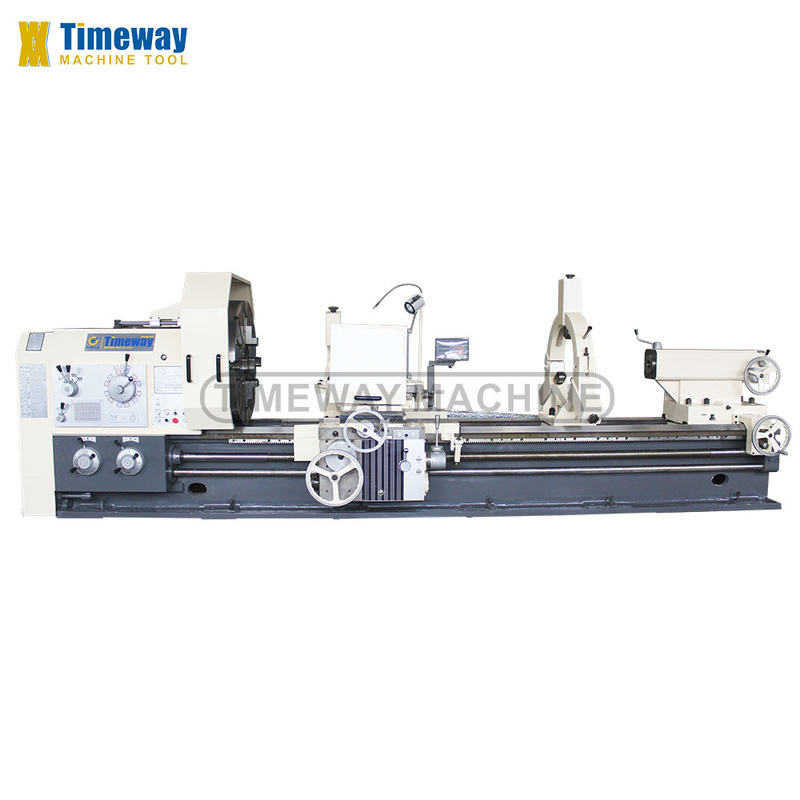

Heavy Duty Horizontal Lathe
Features:
1.The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. 2.The spindle box adopts a symmetrical structure to make the thermal deformation And avoid the offset of the center of the spindle. 3.To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. 4.The front end of the main shaft adopts a three-support structure of a two-row angular contact ball bearing,improving accuracy and increasing rigidity. 5.The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise.
Specification | Unit | AL-1000B | AL-1250B | AL-1400B | ||
Swing over bed | mm | 1000 | 1250 | 1400 | ||
Swing over cross slide | mm | 615 | 865 | 1015 | ||
Distance between centers | mm | 1500/2000/3000/4000/5000/6000/7000/8000 | ||||
Max.turning length | mm | 1350/1850/2850/3850/4850/5850/6850/7850 | ||||
Width of bed | mm | 775 | ||||
Max.weight of workpiece | kg | 6000(opt.: 8000) | ||||
Spindle speed(forward) | r/min | 3.15-315 | ||||
Spindle speed(reverse) | r/min | 3.5-291 | ||||
Longitudianl feed range | mm/r | 0.1-12 | ||||
Cross feed range | mm/r | 0.05-6 | ||||
Main motor power | kw | 22 | ||||
Machine dimensions(LxWxH) | mm | 5100-15100x2150 x1700 | 5100-15100x2150 x1825 | 5100-15100x2150 x1950 | ||

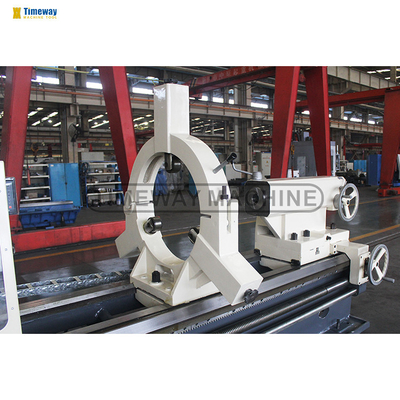

· 4-jaw independent chuck · Steady rest (over 3M length) · Follow rest · Manual moving tailstock · Dead center of tailstock · 4-station tool post · Cooling system · Work lamp · Tools & tool-box · Leveling wedge and bolts · Operation manual (English) | · Electric moving tailstock · 2 or 3-axis digital indicator · Chuck guard · Too-post guard · Rear splash guard · Grinding attachment |
Machine Details
Spindle box:
The heavy duty lathe have 18 steps forward spindle speed 6-750 r/min; and also have 6 steps reverse 10-775 r/min. Wide spindle speed meet various processing requirements.
Spindle & Lathe chuck:
The 3-jaws chuck comes standard for the horizontal lathe, and the 4-jaws chuck and the face plate comes optional. The lathe chuck adopts C11-type spindle nose connection, convenient and fast. Pull-push spindle guard comes optional, finish stopping the spindle when it is opened.
Tool-post guard (optional):
Foldable protection guard for the tool-post can effectively protect the safety of the worker, and does not hinder tool change.
2-axis/ 3-axis DRO:
Regarding to customers' requirement, the DRO is available to operate the lathe machine more directly.
