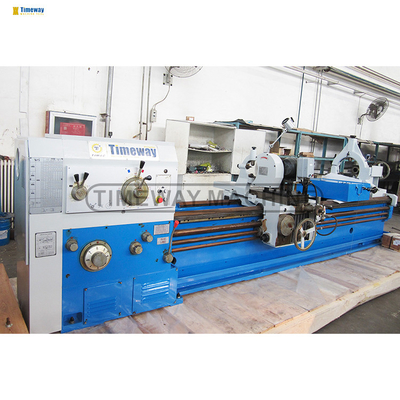

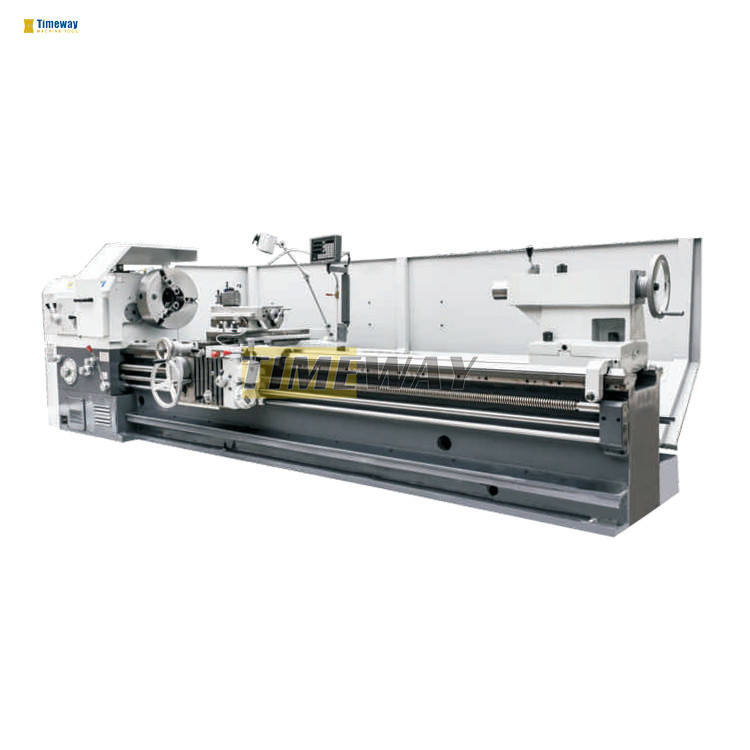

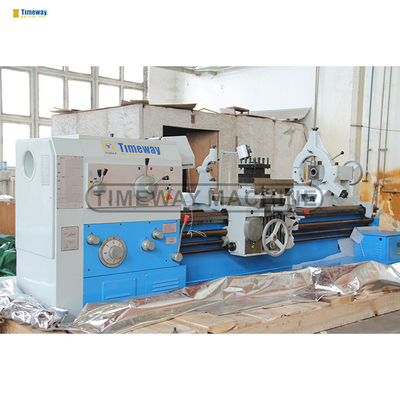

400V Voltage Giant Heavy Duty Horizontal Lathe Turning Machine for Large Workpieces
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | AL-800x8000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $69,999.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 10 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 8000 | Range Of Spindle Speed(r.p.m): | 6 - 750 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 600 |
| Type: | Horizontal | Spindle Motor Power(kW): | 11 |
| Voltage: | 220V, 380V, 400V | Dimension(L*W*H): | 9220*1730*1450mm |
| Weight (KG): | 4800 KG | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Horizontal Lathe: | Large Loading Capacity Heavy Duty Horizonal Lathe | Swing Over Bed: | 800mm |
| Swing Over Cross Slide: | 480mm | Max. Length Of Workpiece: | 8000mm |
| Processing Capacity: | Heavy Duty | Spindle Bore: | 100mm |
| Machine Type: | Horizontal Metal Turning Lathe Machine | After-sales Service Provided: | 1 Year (no Human-made Reason) |
| Color: | Customrized | Condition: | New |
| Spindle Bore(mm): | 100 | Showroom Location: | Canada, United Kingdom, United States, Brazil, Peru, Pakistan, Mexico, Russia, Spain, Chile, UAE, Australia |
| Max. Turned Length (mm): | 7850 Mm | Year: | 2022 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works , Other | Core Components: | Gear, Motor, Gearbox, Other |
Product Description
Products Description
heavy duty horizontal lathe
Features:
1. This series heavy-duty lathe adopts 1100mm wide rectangular induction hardened and ground bed guide ways, so of excellent stability, high rigidity, and with maximum bearing of 16 tons between centers.
2. The main spindle is of precision roller bearings 3-point supporting structure. Saddle guide ways with Teflon belt coated. Rotating tailstock quill structure to minimize frictioALn and heat generation.
3. These machines are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end surfaces, and turning of metric or inch threads, modular threads and diametrical pitch threads, etc.
4. Motorized short taper turning could be done by the top slide independently, and long taper’s motorized turning could be done by top slide combined with longitudinal feed. Further more, these machines can also carry out drilling, trepanning and boring processes, etc.
1. This series heavy-duty lathe adopts 1100mm wide rectangular induction hardened and ground bed guide ways, so of excellent stability, high rigidity, and with maximum bearing of 16 tons between centers.
2. The main spindle is of precision roller bearings 3-point supporting structure. Saddle guide ways with Teflon belt coated. Rotating tailstock quill structure to minimize frictioALn and heat generation.
3. These machines are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end surfaces, and turning of metric or inch threads, modular threads and diametrical pitch threads, etc.
4. Motorized short taper turning could be done by the top slide independently, and long taper’s motorized turning could be done by top slide combined with longitudinal feed. Further more, these machines can also carry out drilling, trepanning and boring processes, etc.
Specification | Unit | AL-800/8000 |
Swing over bed | mm | 800 |
Swing over cross slide | mm | 480 |
Max. length of workpiece | mm | 8000 |
Max. turning length | mm | 7850 |
Width of bed | mm | 600 |
Spindle nose | / | C11 |
Spindle bore | mm | 100 |
Spindle speed(forward) | rpm | 6~750 |
Spindle speed(reverse) | rpm | 10~775 |
Taper hole of tailstock quill | / | MT6 |
Main motor power | kw | 11 |
Max. weight of workpiece | kg | 3000 |
· 3-jaw chuck · Steady rest (over 2M length) · Dead center · 4-station tool post · Cooling system · Work lamp · Manual moving tailstock · Tools & tool-box · Leveling wedge and bolts · Operation manual (English) | · Face plate · 2 or 3-axis DRO · Chuck guard · Too-post guard · Rear splash guard · Roller support · Grinding attachment |
Detailed Images
Spindle Box:
The heavy duty lathe have 18 steps forward spindle speed 6-750 r/min; and also have 6 steps reverse 10-775 r/min. Wide spindle speed meet various processing requirements.
Spindle & Lathe Chuck:
The 4-jaws chuck comes standard for the horizontal lathe, The lathe chuck adopts C11-type spindle nose connection, convenient and fast. Pull-push spindle guard comes optional, finish stopping the spindle when it is opened.

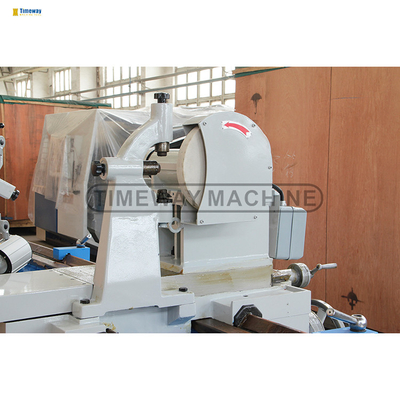

Tool-post Guard (optional):
Foldable protection guard for the tool-post can effectively protect the safety of the worker, and does not hinder tool change.
2-axis/ 3-axis DRO:
Regarding to customers' requirement, the DRO is available to operate the lathe machine more directly.
