755mm Width Normal CNC Heavy Duty Horizontal Lathe Turning Machine for Turning Work
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | AL-1400C; AL-1600C; AL-1800C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $72,999.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 10 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 755 |
| Type: | Horizontal | Spindle Motor Power(kW): | 22 |
| Voltage: | 220V, 380V, 400V | Dimension(L*W*H): | 6020*1995*2325mm |
| Weight (KG): | 18000 KG | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Horizontal Lathe: | Large Loading Capacity Heavy Duty Horizonal Lathe | Swing Over Bed: | 1400mm |
| Swing Over Cross Slide: | 1010mm | Max. Length Of Workpiece: | 3000mm |
| Processing Capacity: | Heavy Duty | Spindle Bore: | 130mm |
| Model: | AL-1400C | Machine Type: | Horizontal Metal Turning Lathe Machine |
| Distance Between Centers: | 3000mm | Condition: | New |
| Spindle Bore(mm): | 130 | Showroom Location: | Canada, United Kingdom, United States, Brazil, Peru, Pakistan, Mexico, Russia, Spain, Chile, UAE, Australia |
| Max. Turned Length (mm): | 4800 Mm | Year: | 2022 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works , Other | Core Components: | Motor, Gearbox, Other |
Product Description
Summary
This series horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals.It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal and external threads, such as metric, inch, modulus and diametrical.
Products Description

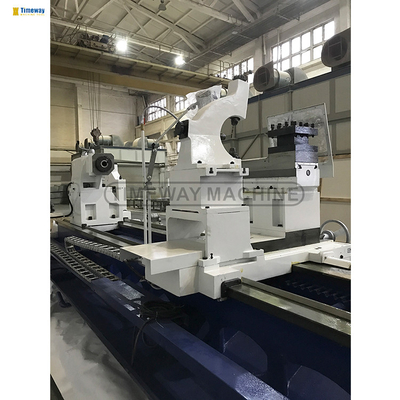

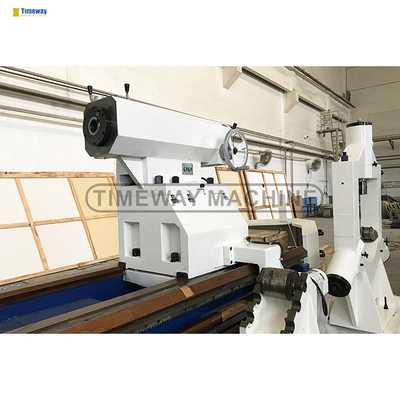

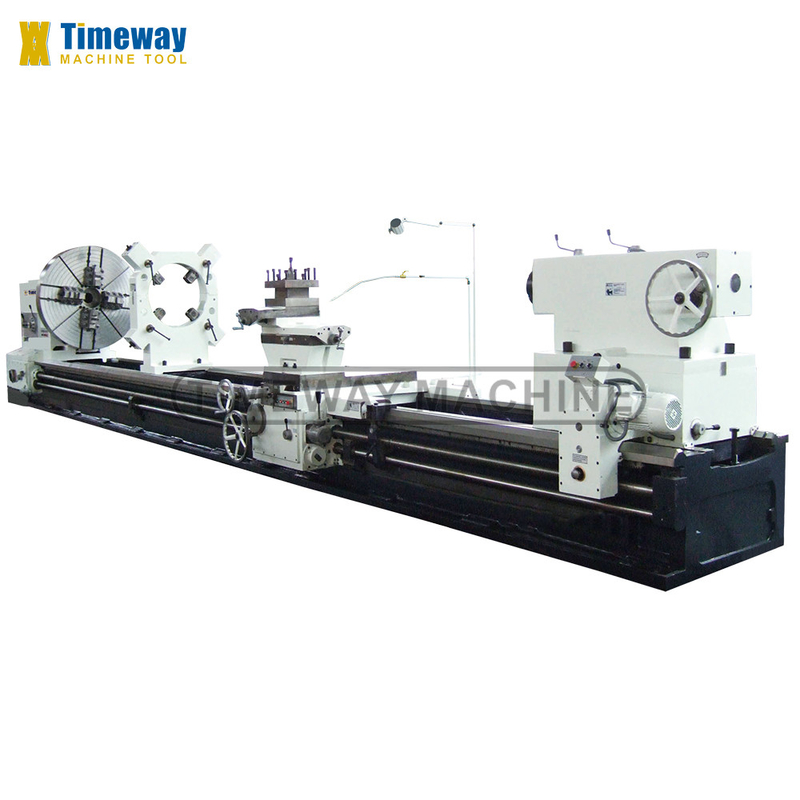

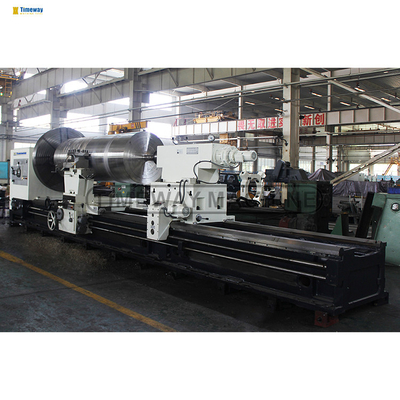

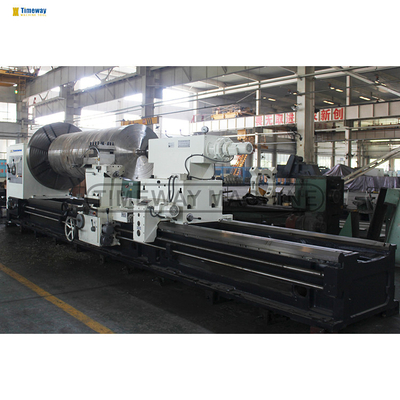

Heavy Duty Horizontal Lathe
Features:
1. The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting.
2.The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process.
3.The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle.
4.To reduce thermal deformation, the headstock is lubricated with an oil bath cycle.
Specification | Unit | AL-1250C | AL-1400C | AL-1600 | ||
Swing over bed | mm | 1250 | 1600 | 2000 | ||
Swing over cross slide | mm | 865 | 1250 | 1650 | ||
Max. length of workpiece | mm | 3000/4000/5000/6000/8000/- | ||||
Max. turning length | mm | 2800/3800/4800/5800/7800/- | ||||
Width of bed | mm | 970 | 970 | 970 | ||
Spindle nose | / | A2-15 | A2-15 | A2-15 | ||
Spindle bore | mm | 130 | 100 | 100 | ||
Main motor power | kw | 22 | 22 | 22 | ||
Max. weight of workpiece | kg | 10000 (optional: 12000) | ||||
· 4-jaw heavy-duty independent chuck · Steady rest (over 3M length) · Dead center · 4-station tool post · Cooling system · Work lamp · Electric moving tailstock · Tools & tool-box · Leveling wedge and bolts · Operation manual (English) | · 2 or 3-axis DRO · Chuck guard · Too-post guard · Rear splash guard · Roller support · Grinding attachment |
Machine Details
Spindle Box:
The heavy duty lathe have 18 steps forward spindle speed 6-750 r/min; and also have 6 steps reverse 10-775 r/min. Wide spindle speed meet various processing requirements.
Spindle & Lathe Chuck:
The 4-jaws chuck comes standard for the horizontal lathe, The lathe chuck adopts C11-type spindle nose connection, convenient and fast. Pull-push spindle guard comes optional, finish stopping the spindle when it is opened.
Tool-post Guard (optional):
Foldable protection guard for the tool-post can effectively protect the safety of the worker, and does not hinder tool change.
2-axis/ 3-axis DRO:
Regarding to customers' requirement, the DRO is available to operate the lathe machine more directly.
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
