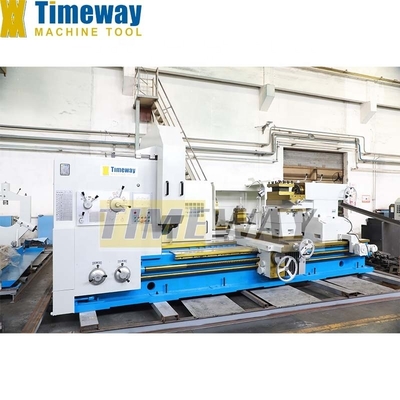

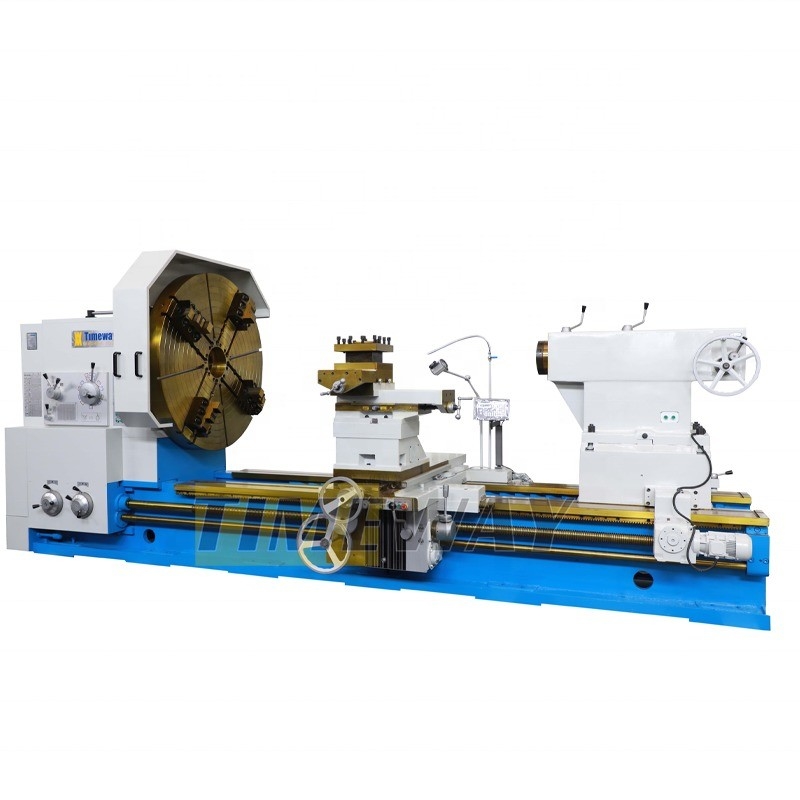

AL 2000 Lathe Machine for Industrial Manufacturing Max. Turned Length mm 2800 mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $73,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000mm | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 30 | Voltage: | 220/380V |
| Weight (KG): | 20500 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Lathe Machine |
| Keyword: | Universal Metal Lathe | Precision: | High Precision Machine |
| Spindle Hole: | 100mm | Function: | Metal Turning |
| Machine Type: | Horizontal Metal Turning Lathe Machine | Product Name: | Machine Lathe |
| Automatic Grade: | Normal | Color: | Customrized |
| Distance Between Centers: | 3000mm | Condition: | New |
| Showroom Location: | United Kingdom, United States, Brazil, Mexico, Russia, Spain, South Korea, Romania, South Africa | Core Components: | Bearing, Gear, Motor, Gearbox, Pressure Vessel |
| Spindle Bore(mm): | 100mm | Max. Turned Length (mm): | 2800 Mm |
| Year: | 2023 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Port: | China Port | ||
Product Description
Products Description
Specification | Unit | AL-1800 | AL-2000 | |
Max. swing over bed | mm | 1800 | 2000 | |
Max. swing over cross slide | mm | 1450 | 1650 | |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000 | ||
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800 | ||
Bed width | mm | 1100 | 1100 | |
Loading capacity | tons | 16 | 16 | |
Spindle nose | - | A2-15 | A2-15 | |
Spindle bore | mm | 100 | 100 | |
Spindle taper | - | Metric 140 | Metric 140 | |
Spindle speed range | r/min | CCW: 3.15-315, CW: 3.5-291 | CCW: 3.15-315, CW: 3.5-291 | |
Spindle speed step | steps | CCW: 21, CW: 12 | CCW: 21, CW: 12 | |
X/Z-axis feed kinds | kinds | 56 | 56 | |
Feed range | mm/r | Longitudinal:0.1-12; Cross:0.05-6; Top tool-post: 0.025-3 | ||
Metric threads range (kinds) | mm | 1-120 (44) | 1-120 (44) | |
Inch threads range (kinds) | TPI | 28-1/4 (31) | 28-1/4 (31) | |
Module threads range (kinds) | MP | 0.5-60 (45) | 0.5-60 (45) | |
Diametrical threads range (kinds) | DP | 1/2-56 (38) | 1/2-56 (38) | |
Distance from spindle center to tool base | mm | 53 | 53 | |
Tool post swivel angle | ° | ±90° | ±90° | |
Cross slide travel | mm | 900 | 900 | |
Top slide travel | mm | 360 | 360 | |
Tool section size | mm | 50x50 | 50x50 | |
Tool post feed per gar | mm | 0.05 | 0.05 | |
Tailstock quill diameter | mm | 260 | 260 | |
Tailstock quill travel | mm | 300 | 300 | |
Tailstock quill taper | - | Metric 80 | Metric 80 | |
Main motor power | kw | 30 | 30 | |
Machine length | mm | 6120/7120/8120/9120/11120/13120/15120 | ||
Machine width | mm | 2330 | 2430 | |
Machine height | mm | 2480 | 2580 | |

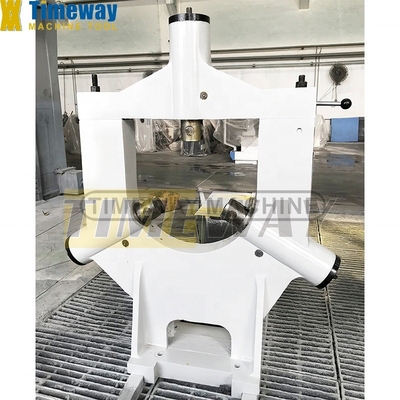

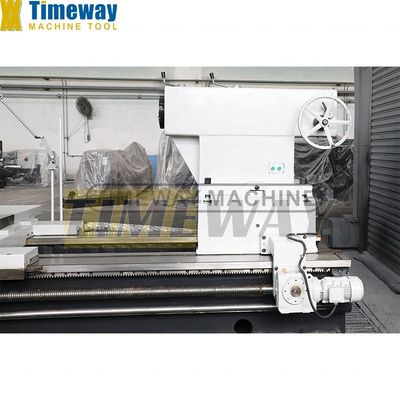

· 4-jaw heavy duty independent chuck · Steady rest · Dead center · 4-station tool post · Cooling system · Work lamp · Electric movingtailstock · Tools & tool-box · Leveling wedge and bolts · Operation manual (English) | · Face plate · 2 or 3-axis DRO · Chuck guard · Tool-post guard · Rear splash guard · Roller support · Grinding attachment |
