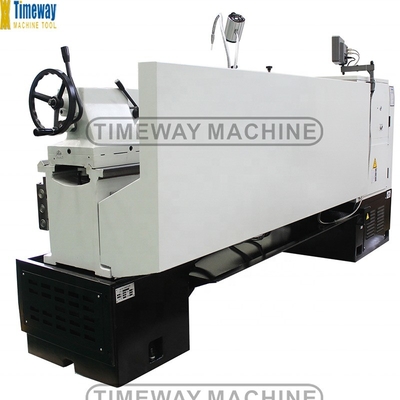

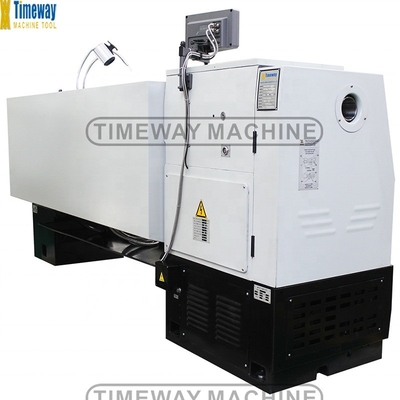

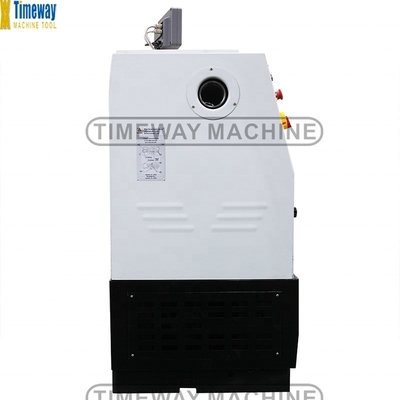

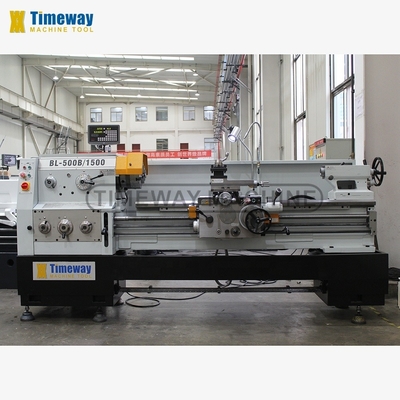

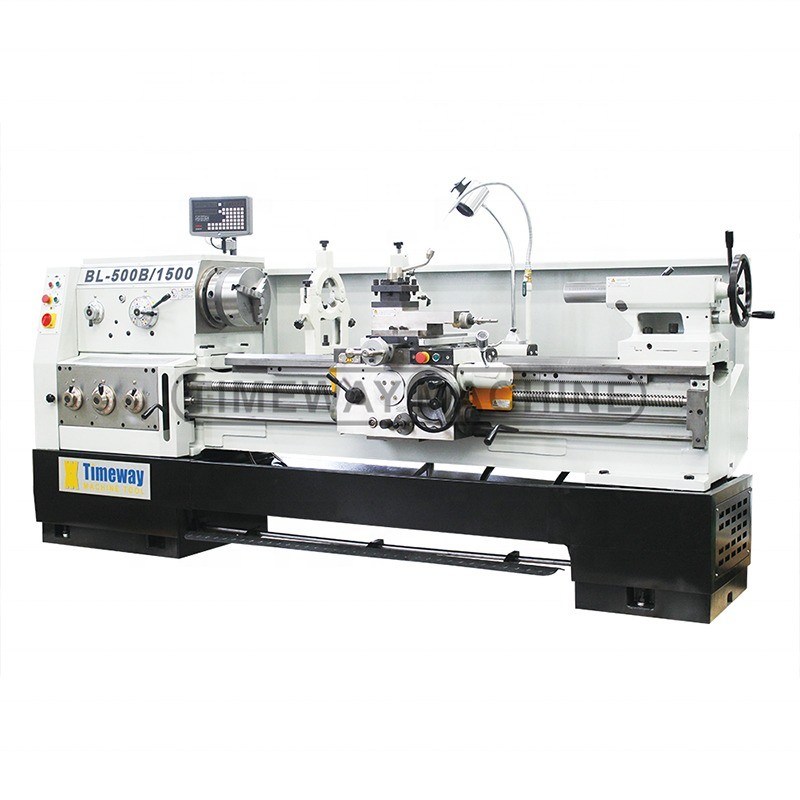

2023 Industrial Manufacturing BL 500B Gap-bed Lathe With Max. Turned Length mm 950 mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | BL-500B, BL-660B, BL-800B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $11,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 9 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Voltage: | 220V/380V/400V/415V/440V |
| Weight (KG): | 2100 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Horizontal Metal Turning Lathe Machine |
| Name: | Universal Lathe Machine | Keyword: | METAL PROCESSING HORIZONTAL LATHE MACHINE |
| After-sales Service Provided: | Online Support | Function: | Metal Turning |
| Precision: | High Precision Machine | CNC Or Not: | Nomal |
| Color: | Customrized | Spindle Hole: | 82mm |
| Center Distance: | 750mm/1000mm/1500mm/2000mm/3000mm | Condition: | New |
| Spindle Bore(mm): | 82 | Showroom Location: | Turkey, United Kingdom, United States, India, Russia, Spain, South Korea, South Africa |
| Max. Turned Length (mm): | 950 Mm | Year: | 2023 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Core Components: | Bearing, Gear, Gearbox, Other |
| Port: | China Port | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
horizontal gap bed lathe
Products Description
Specification | Unit | BL-500B | BL-660B | BL-800B |
Max. swing over bed | mm | 500 | 660 | 800 |
Max. swing over cross slide | mm | 300 | 420 | 560 |
Max. swing over gap | mm | 710 | 870 | 1000 |
Gap length | mm | 240 | 240 | 240 |
Distance between centers | mm | 750/1000/1500/2000/3000 | 750/1000/1500/2000/3000 | 2000/3000 |
Max. turning length | mm | 700/950/1450/1950/2950 | 700/950/1450/1950/2950 | 1850/2850 |
Spindle bore | mm | Φ82 | Φ82 | Φ82 |
Spindle taper | - | Φ90, 1:20 | Φ90, 1:20 | Φ90, 1:20 |
Spindle nose | - | ISO 702/II No.8 | ISO 702/II No.8 | ISO 702/II No.8 |
Spindle speed range (steps) | rpm | 9-1600 (24) | 9-1600 (24) | 8-1400 (24) |
Top slide travel | mm | 145 | 145 | 145 |
Cross slide travel | mm | 320 | 310 | 320 |
Tool section size | mm | 25x25 | 25x25 | 25x25 |
X-axis rapid feed speed | m/min | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed speed | m/min | 50HZ: 4.5; 60HZ: 5.4 | 50HZ: 4.5; 60HZ: 5.4 | 50HZ: 4.5; 60HZ: 5.4 |
X-axis feed range | mm/r | 0.012-2.73 (93) | 0.012-2.73 (93) | 0.012-2.73 (93) |
Z-axis feed range | mm/r | 0.028-6.43 (93) | 0.028-6.43 (93) | 0.028-6.43 (93) |
Metric threads range (kinds) | mm | 0.5-224 (48) | 0.5-224 (48) | 0.5-224 (48) |
Inch threads range (kinds) | TPI | 72-1/8 (46) | 72-1/8 (46) | 72-1/8 (46) |
Module threads range (kinds) | MP | 0.5-112 (42) | 0.5-112 (42) | 0.5-112 (42) |
Diametrical threads range (kinds) | DP | 56-1/4 (45) | 56-1/4 (45) | 56-1/4 (45) |
Tailstock quill diameter | mm | Φ75 | Φ75 | Φ90 |
Tailstock quill travel | mm | 150 | 150 | 150 |
Tailstock quill taper | - | MT5 | MT5 | MT5 |
Main motor power | kw | 7.5 | 7.5 | 7.5 |
Rapid feed motor power | kw | 0.3 | 0.3 | 0.3 |
Coolant pump motor power | kw | 0.12 | 0.12 | 0.12 |
Machine length | mm | 2382/2632/3132/3632/4632 | 2382/2632/3132/3632/4632 | 3365/4365 |
Machine width | mm | 975 | 975 | 1340 |
Machine height | mm | 1230 | 1270 | 1430 |
Machine weight | kg | 2050/2100/2300/2500/2900 | 2150/2200/2400/2600/3000 | 330/3700 |
3-jaw chuck | Living center |
4-jaw chuck | Taper turning attachment |
Face plate | Drill chuck |
Dead center | Quick change tool holder |
Thread chasing dial | 2/3 axis digital readout |
Splash guard | Chuck cover |
Oil gun | Leadscrew cover |
Work lamp | Tool post cover |
Cooling system | Driving plate |
Steady rest | |
Follow rest | |
Change gears | |
Reducing sleeve | |
Foot brake | |
Foundation bolts | |
Tool-box & tools | |
Operation manual |
Machine Details
The series gap bed lathe is suitable for all kinds of turning work, such as internal and external turning, taper turning, and other rotary parts turning, end face turning, also turning all kinds of common thread: Inch, Metric, Module and D.P; perform drilling, reaming, tapping and groove broaching.
===================================
>> Standard 3-jaw lathe chuck, quickly clamping workpiece;
===================================
>> The bed with ribs is made of high quality casting iron;
>> The guideway rails are hardened and ground, and the hardness up to be HRC52;
===================================
>> Automatic feed and rapid feed on the X/Z-axis by one handle.
>> USA-type, EUROPE-Type, Italian type quick change tool post for choice;
===================================
>> Steady rest and follow rest are standard equipped for the flat bed lathe.

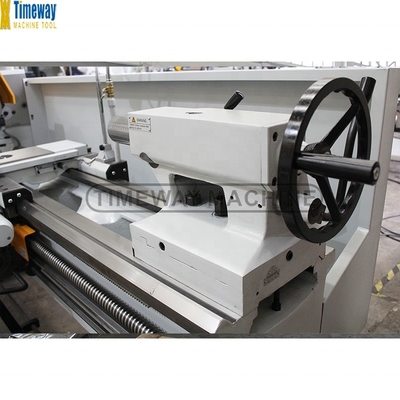

>> Manual tailstock can quickly lock and loosen.
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts (only for CNC horizontal lathe):
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
