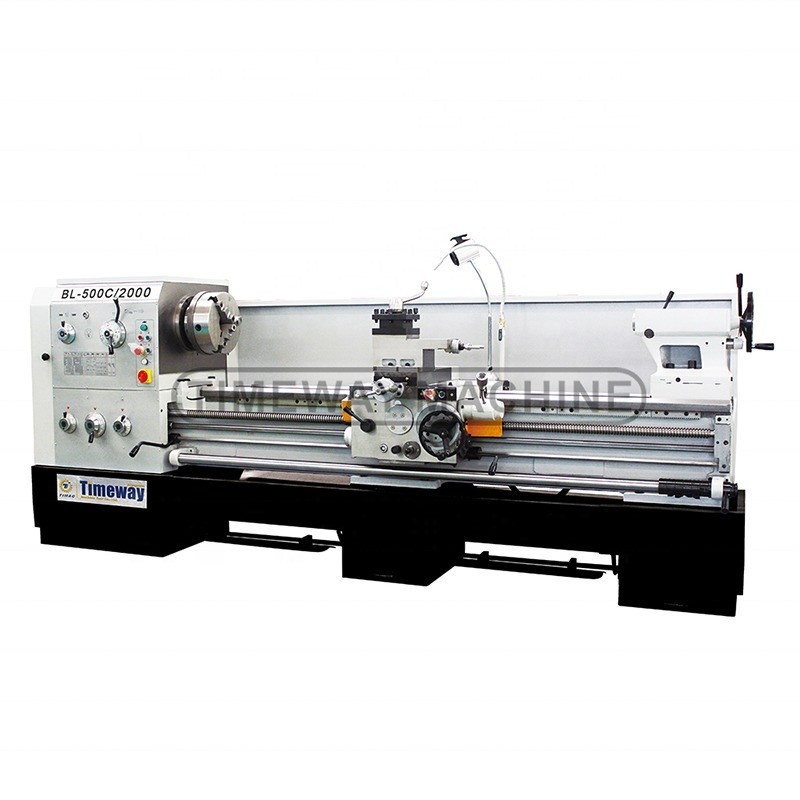

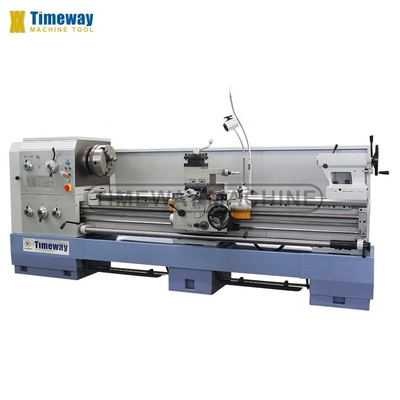

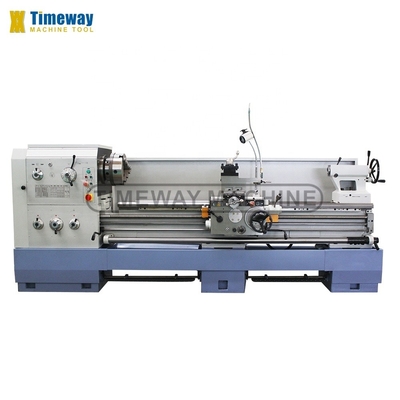

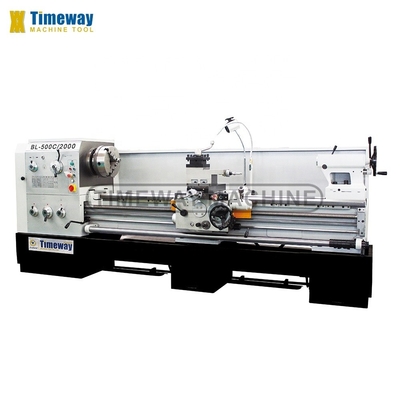

precision BL-500C Gap Bed Lathe Max Processing Dia 500mm for Industrial Manufacturing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | BL-500C, BL-660C, BL-800C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 36 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Voltage: | 220V/380V/400V/415V |
| Dimension(L*W*H): | 2632x975x1270mm | Weight (KG): | 2050 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Horizontal Metal Turning Lathe Machine | Keyword: | METAL PROCESSING HORIZONTAL LATHE MACHINE |
| Function: | Metal Turning | Precision: | High Precision Machine |
| Color: | Customrized | Distance Between Centers: | 750/1000/1500/2000/3000mm |
| Spindle Speed: | 36-1600 (12)rpm | Motor Power: | 7.5kw |
| Name: | Lathe Machine | Spindle Hole: | 105mm |
| Condition: | New | Spindle Bore(mm): | 105 |
| Showroom Location: | Canada, Turkey, United Kingdom, United States, Pakistan, India, Russia, Thailand, Nigeria, Japan | Max. Turned Length (mm): | 950 Mm |
| Year: | 2023 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Core Components: | Bearing, Gear, Gearbox, Other | Port: | China Port |
Product Description
Products Description
Specification | Unit | BL-500C | BL-660C | BL-800C |
Max. swing over bed | mm | 500 | 660 | 800 |
Max. swing over cross slide | mm | 300 | 420 | 560 |
Max. swing over gap | mm | 710 | 870 | 1000 |
Gap length | mm | 240 | 240 | 240 |
Distance between centers | mm | 750/1000/1500/2000/3000 | 750/1000/1500/2000/3000 | 2000/3000 |
Max. turning length | mm | 700/950/1450/1950/2950 | 700/950/1450/1950/2950 | 1850/2850 |
Spindle bore | mm | Φ105 | Φ105 | Φ105 |
Spindle taper | - | Φ113, 1:20 | Φ113, 1:20 | Φ113, 1:20 |
Spindle nose | - | ISO 702/II No.8 | ISO 702/II No.8 | ISO 702/II No.8 |
Spindle speed range (steps) | rpm | 36-1600 (12) | 36-1600 (12) | 30-1400 (12) |
Top slide travel | mm | 145 | 145 | 145 |
Cross slide travel | mm | 320 | 310 | 320 |
Tool section size | mm | 25x25 | 25x25 | 25x25 |
X-axis rapid feed speed | m/min | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed speed | m/min | 50HZ: 4.5; 60HZ: 5.4 | 50HZ:4.5; 60HZ: 5.4 | 50HZ: 4.5; 60HZ: 5.4 |
X-axis feed range | mm/r | 0.027-1.07 (65) | 0.027-1.07 (65) | 0.027-1.07 (65) |
Z-axis feed range | mm/r | 0.63-2.52 (65) | 0.63-2.52 (65) | 0.63-2.52 (65) |
Metric threads range (kinds) | mm | 1-14 (22) | 1-14 (22) | 1-14 (22) |
Inch threads range (kinds) | TPI | 28-2 (25) | 28-2 (25) | 28-2 (25) |
Module threads range (kinds) | MP | 0.5-7 (18) | 0.5-7 (18) | 0.5-7 (18) |
Diametrical threads range (kinds) | DP | 56-4 (24) | 56-4 (24) | 56-4 (24) |
Tailstock quill diameter | mm | Φ75 | Φ75 | Φ90 |
Tailstock quill travel | mm | 150 | 150 | 150 |
Tailstock quill taper | - | MT5 | MT5 | MT5 |
Main motor power | kw | 7.5 | 7.5 | 7.5 |
Rapid feed motor power | kw | 0.3 | 0.3 | 0.3 |
Coolant pump motor power | kw | 0.12 | 0.12 | 0.12 |
Machine length | mm | 2382/2632/3132/3632/4632 | 2382/2632/3132/3632/4632 | 3365/4365 |
Machine width | mm | 975 | 975 | 1340 |
Machine height | mm | 1270 | 1450 | 1490 |
Machine weight | kg | 2050/2100/2300/2500/2900 | 2150/2200/2400/2600/3000 | 3000/3200 |
3-jaw chuck | Chasing dial indicator |
4-jaw chuck | Liver center |
Face plate | Digital readout system (DRO) |
Steady rest | Quick change tool-post |
Follow rest | Taper turning attachment |
Changing gears | |
Dead center | |
Reduction sleeve | |
Oil gun | |
Coolant system | |
Working lamp | |
General tools | |
Operation manual |

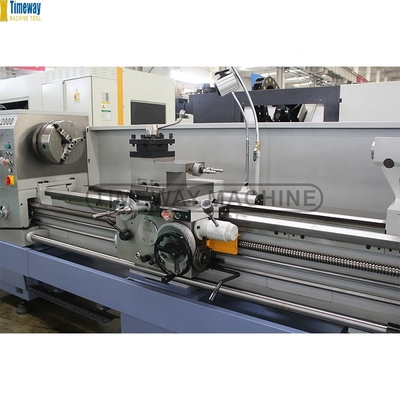

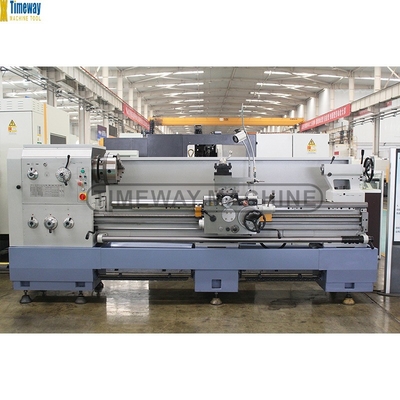

Machine Details
Why Choose Us
Renishaw laser interferometer (only for CNC horizontal lathe)：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
