Product Details:

Place of Origin: Henan, China
Brand Name: Timeway
Model Number: CL-510,CL-560

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $15,000.00/sets 1-2 sets
Packaging Details: Wooden cases(can be fumigated)
Supply Ability: 150 Set/Sets per Month
Get Best Price Contact Now

Detail Information
Max. Length Of Workpiece (mm): 1000 Range Of Spindle Speed(r.p.m): 25 - 2000 R.p.m
Machining Capacity: Medium Duty Type: Horizontal
Voltage: 380V, 220V Or Negotiable Dimension(L*W*H): 239/284/334/434x115x143mm
Weight (KG): 2550 KG Warranty: 1 Year
Key Selling Points: High Productivity Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Name: Lathe Machine
Machine Type: Horizontal Metal Turning Lathe Machine Keyword: METAL PROCESSING HORIZONTAL LATHE MACHINE
Function: Metal Turning Precision: High Precision Machine
Color: Customrized Power: 7.5 Kw
Swing Over Bed: 510mm Distance Between Centers: 1000/1500/ 2000/3000mm
Spindle Hole: 80mm Condition: New
Showroom Location: Turkey, United Kingdom, United States, India, Russia, Spain, Romania Core Components: Bearing, Gear, Gearbox
Spindle Bore(mm): 80mm Max. Turned Length (mm): 1000 Mm
Year: 2023 Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Other
Port: China Port

Product Description

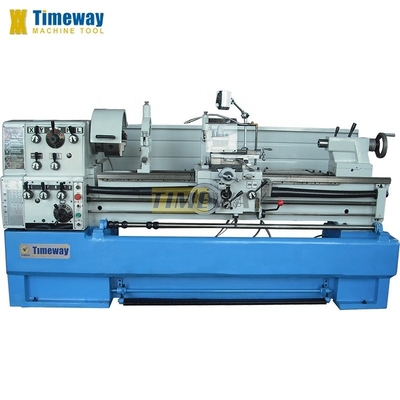

Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 0
Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 1
Products Description

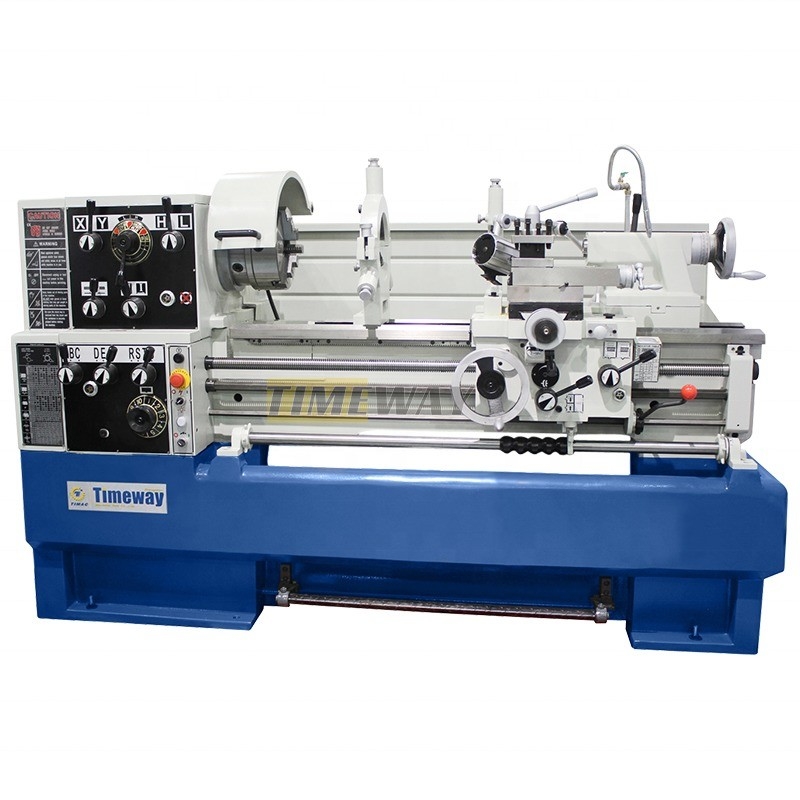

Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 2
Specification
Unit
CL-510
CL-560
Max. swing over bed
mm
510
560
Max. swing over cross slide
mm
305
355
Max. swing over gap
mm
735
785
Distance between centers
mm
1000/1500/ 2000/3000
1000/1500/ 2000/3000
Gap length
mm
170
170
Bed width
mm
350
350
Spindle nose
-
D1-8
D1-8
Spindle bore
mm
80
80
Spindle taper
-
MT7
MT7
Spindle speed range (steps)
rpm
25-2000 (12)
25-2000 (12)
Top slide travel
mm
130
130
Cross slide travel
mm
316
316
Tool section size
mm
25x25
25x25
Leadscrew
-
40x4T.P.I or pitch 6mm
40x4T.P.I or pitch 6mm
Longitudinal feed range
mm/rev
0.059-1.646 (32)
0.059-1.646 (32)
Cross feed range
mm/rev
0.02-0.573 (42)
0.02-0.573 (42)
Metric threads range (kinds)
mm
0.2-14 (47)
0.2-14 (47)
Inch threads range (kinds)
TPI
2-112 (60)
2-112 (60)
Diametrical threads range (kinds)
DP
4-112 (50)
4-112 (50)
Module threads range (kinds)
MP
0.1-7 (34)
0.1-7 (34)
Tailstock quill diameter
mm
75
75
Tailstock quill travel
mm
180
180
Tailstock quill taper
-
MT5
MT5
Main motor power
kw
7.5
7.5
Coolant pump power
kw
0.1
0.1
Machine dimensions (LxWxH)
cm
239/284/334/434x115x143
239/284/334/434x115x146
Packing size (LxWxH)
cm
245/290/340/440x119x174
245/290/340/440x119x174
Net weight
kg
2070/2160/2435/2805
2195/2285/2560/2930
Gross weight
kg
2460/2550/2840/3270
2600/2690/2980/3410
Machine height
mm
1230
1270
Machine weight
kg
2050/2100/2300/2500/2900
2150/2200/2400/2600/3000
Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 3
3-jaw chuck
Living center
4-jaw chuck
Taper turning attachment
Face plate
Drill chuck
Dead centers

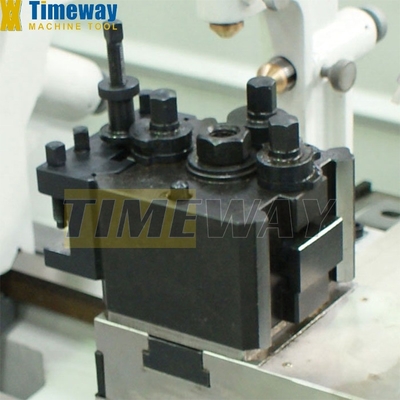

Quick change tool holder
Thread chasing dial

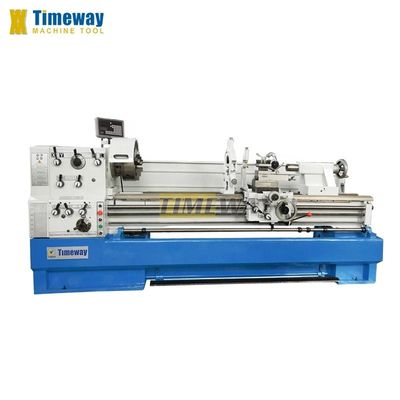

2/3 axis digital readout
Splash guard
Chuck cover
Oil gun
Leadscrew cover
Work lamp
Tool post cover
Cooling system
Driving plate
Steady rest
Delta frequency inverter
Follow rest
Change gears
Reducing sleeve
Foot brake
Foundation bolts
Toolbox & tools
Operator manual

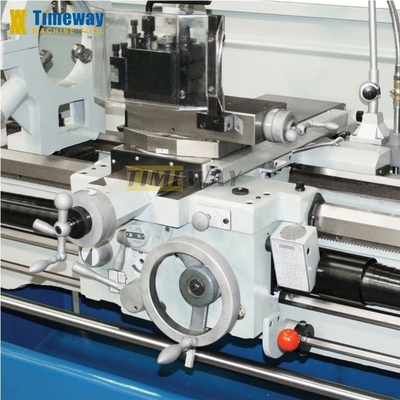

Machine Details
Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 4
Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 5
Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 6
Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 7
Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 8
Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 9
Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 10
Why Choose Us
Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 11
Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 12
Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 13
Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops 14
Renishaw laser interferometer (only for CNC horizontal lathe)：
Before the delivery, it adopts UK RENISHAW laser  to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
