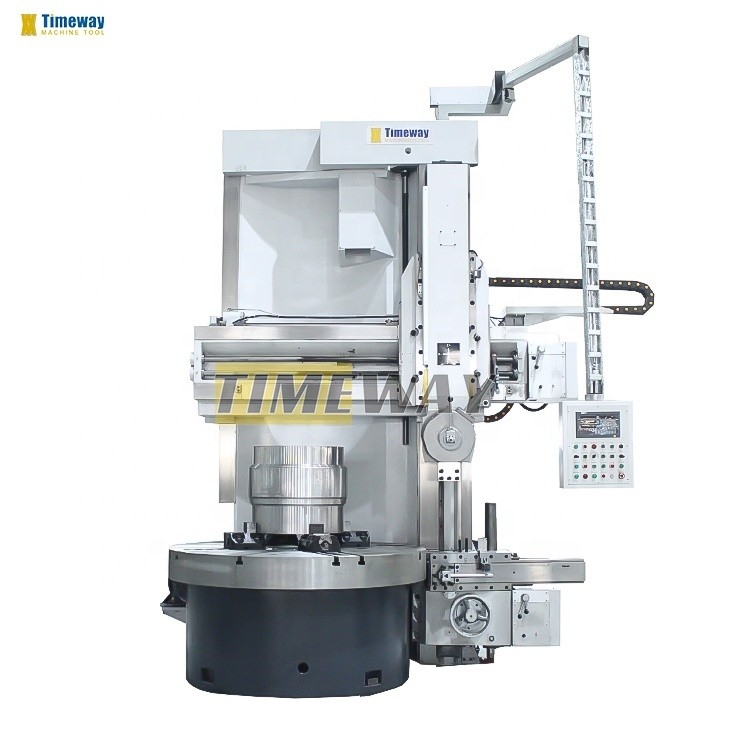

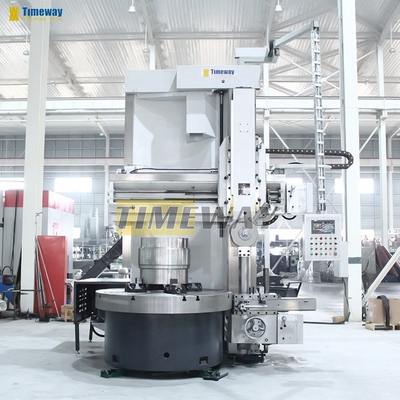

37kW Spindle Motor Power VTL Dia. 2000mm Single Column Vertical Lathe Machine for Heavy Duty
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | VL2000E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $72,643.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1600mm | Range Of Spindle Speed(r.p.m): | 4 - 125 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | VERTICAL |
| Spindle Motor Power(kW): | 37 | Voltage: | As Customer's Requirements |
| Dimension(L*W*H): | 3210*2970*4200 Mm | Weight (KG): | 17800 KG |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Turning Diameter: | 2000mm | Max. Height Of Workpiece: | 1600mm |
| Max. Weight Of Workpiece: | 12000kg | Worktable Diameter: | 1800mm |
| Max. Cutting Force Of Tool-post: | 25KN | Max. Torque Of Worktable: | 32KN.m |
| Worktable Speed: | 4-125rpm | Tool Post Feed Speed: | 0.8-86mm/min |
| Vertical Travel Of Tool Post: | 1000mm | Cross Travel Of Tool Post: | -65~1150mm |
| Condition: | New | Showroom Location: | Canada, United Kingdom, United States, Italy, France, Brazil, Peru, Indonesia, Pakistan, Russia, Chile, UAE, Australia |
| Core Components: | Bearing, Motor, Gearbox, PLC, Engine | Spindle Bore(mm): | Other |
| Max. Turned Length (mm): | 1600 Mm | Year: | 2023 |
| Applicable Industries: | Manufacturing Plant, Other | ||
Product Description
Products Description
Specification | Unit | VL2000E |
Max. Turning diameter | mm | 2000 |
Max. Height of workpiece | mm | 1250/1600 |
Max. Weight of workpiece | kg | 12000 |
Worktable diameter | mm | 1800 |
Max. Cutting force of tool-post | KN | 25 |
Max. Torque of worktable | KN.m | 32 |
Worktable speed | rpm | 4-125 (16) |
Tool post feed speed | mm/min | 0.8-86 (12) |
Tool-post rapid feed speed | mm/min | 1800 |
Swiveling angle of tool-post | ° | ±30 |
Cross travel of tool-post | mm | -65~1150 |
Vertical travel of tool-post | mm | 800/1000 |
Main motor power | kw | 37 |
Worktable guideway type | - | rolling |
Tool-post guideway type | - | sliding |
Machine weight | kg | 17500/17800 |
Machine dimension(L×W×H) | mm | 3210×2970×4200 |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
