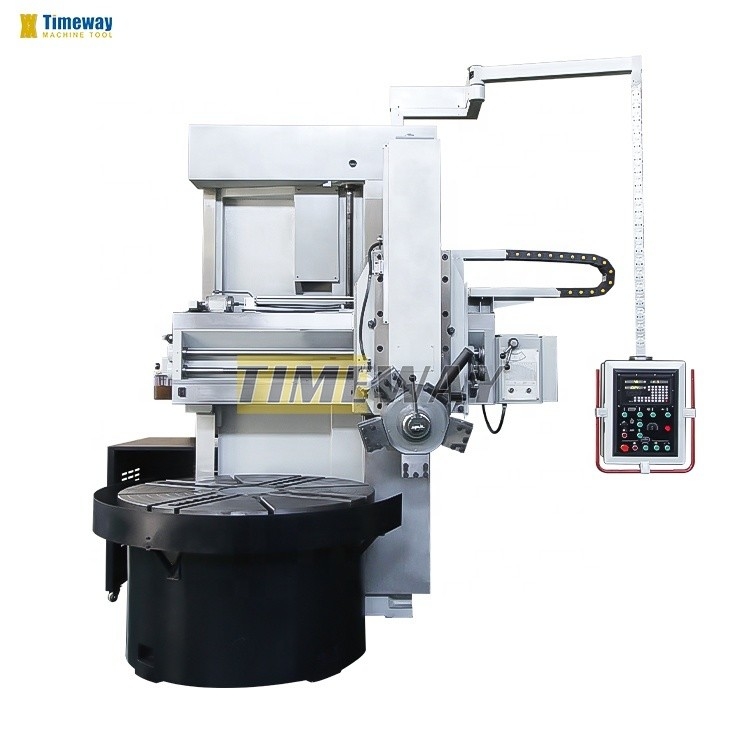

17800 KG Weight Conventional Single Column Vertical Lathe Machine VL Series
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | VL2000E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $58,643.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1600mm | Range Of Spindle Speed(r.p.m): | 4 - 125 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | VERTICAL |
| Spindle Motor Power(kW): | 37 | Voltage: | As Customer's Requirements |
| Dimension(L*W*H): | 3210*2970*4200 Mm | Weight (KG): | 17800 KG |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Turning Diameter: | 2000mm | Max. Height Of Workpiece: | 1600mm |
| Max. Weight Of Workpiece: | 12000kg | Worktable Diameter: | 1800mm |
| Max. Cutting Force Of Tool-post: | 25KN | Max. Torque Of Worktable: | 32KN.m |
| Worktable Speed: | 4-125rpm | Tool Post Feed Speed: | 0.8-86mm/min |
| Vertical Travel Of Tool Post: | 1000mm | Cross Travel Of Tool Post: | -65~1150mm |
| Condition: | New | Showroom Location: | Canada, United Kingdom, United States, France, Brazil, Peru, Indonesia, Pakistan, Russia, Spain, Chile, UAE, Malaysia, Australia |
| Core Components: | Bearing, Motor, Gearbox, PLC, Engine | Spindle Bore(mm): | Other |
| Max. Turned Length (mm): | 1600 Mm | Year: | 2023 |
| Applicable Industries: | Manufacturing Plant, Other | Port: | China Port |
Product Description
Products Description
vertical lathe
Specification | Unit | VL1250E | VL2000E |
Max. Turning diameter | mm | 1250 | 2000 |
Max. Height of workpiece | mm | 1000/1250/1400 | 1250/1600 |
Max. Weight of workpiece | kg | 5 | 12000 |
Worktable diameter | mm | 1010 | 1800 |
Max. Cutting force of tool-post | KN | 20 | 25 |
Max. Torque of worktable | KN.m | 17.5 | 32 |
Worktable speed | rpm | 6.3-200(16) | 4-125 (16) |
Tool post feed speed | mm/min | 0.8-86(12) | 0.8-86 (12) |
Tool-post rapid feed speed | mm/min | 1800 | 1800 |
Swiveling angle of tool-post | ° | ±30 | ±30 |
Cross travel of tool-post | mm | -28~733 | -65~1150 |
Vertical travel of tool-post | mm | 650/800 | 800/1000 |
Main motor power | kw | 22 | 37 |
Worktable guideway type | - | rolling | rolling |
Tool-post guideway type | - | sliding | sliding |
Machine weight | kg | 8300/8600/8900 | 17500/17800 |
Machine dimension(L×W×H) | mm | 2360x2870x3870 | 3210×2970×4200 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
