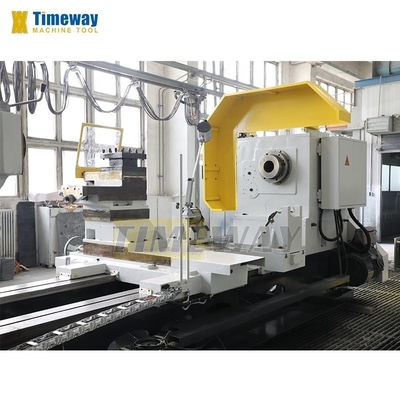

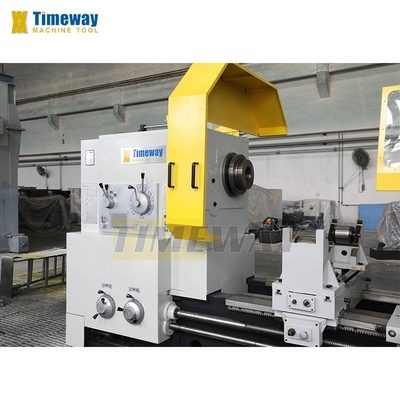

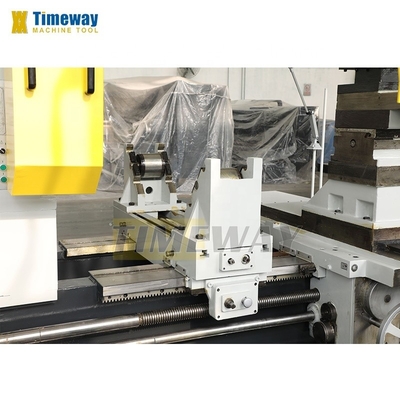

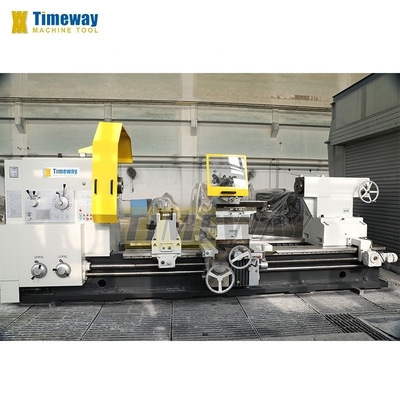

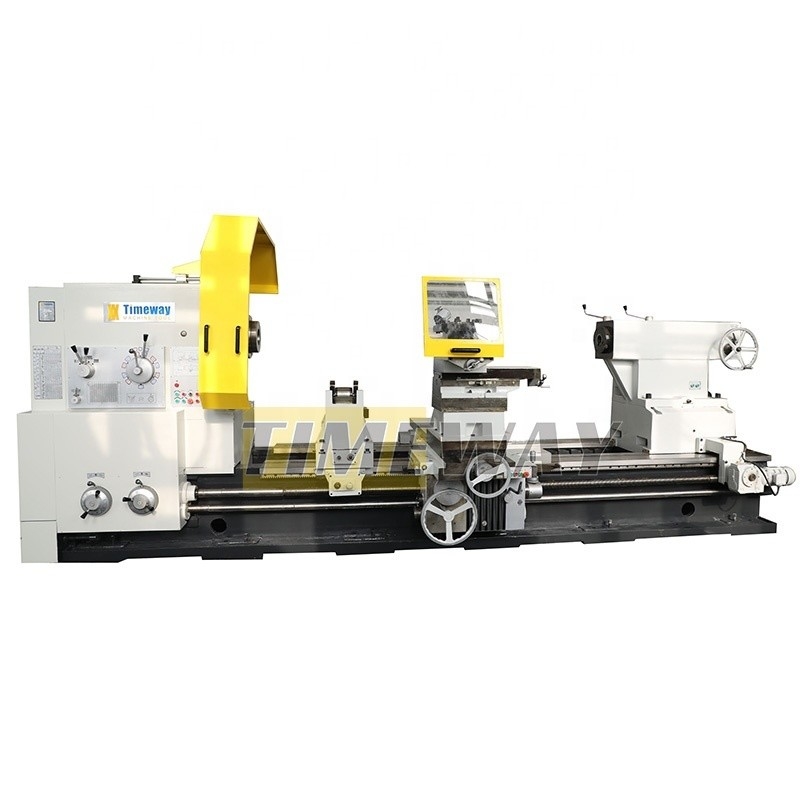

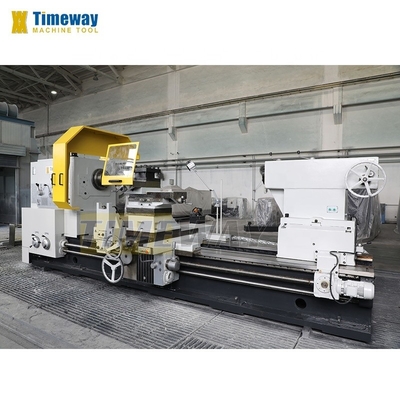

1600 KG Heavy Duty Horizontal Lathe with and Range of Spindle Speed 3.15 315 r.p.m
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $44,500.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2000 Mm | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 30 Kw | Voltage: | 220/380 V |
| Dimension(L*W*H): | 6120*2430*2580 Mm | Weight (KG): | 1600 KG |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Heavy Duty Horizontal Lathe | Keyword: | Lathe |
| Max. Swing Over Bed: | 2000 Mm | Distance Between Centers: | 3000 Mm |
| Max. Turning Length: | 2800 Mm | Loading Capacity: | 16 Tons |
| Spindle Bore: | 100 Mm | Tool Section Size: | 50x50 Mm |
| Main Motor Power: | 30 Kw | Machine Size: | 6120*2430*2580 Mm |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Canada, Germany, Philippines, Saudi Arabia, Indonesia, Russia, Thailand, South Korea, Colombia, Nigeria, Uzbekistan | Spindle Bore(mm): | 100 Mm |
| Max. Turned Length (mm): | 2000 Mm | Core Components: | Bearing, Gear, Other |
| Port: | China Port | ||
Product Description
Products Description
Specification | Unit | AL-2000 |
Max. swing over bed | mm | 2000 |
Max. swing over cross slide | mm | 1650 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 1100 |
Loading capacity | tons | 16 (opt: 20) |
Spindle nose | - | A2-15 |
Spindle bore | mm | 100 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | Forward: 3.15-315, Reverse: 3.5-291 |
Spindle speed step | steps | Forward: 21, Reverse: 12 |
X/Z-axis feed kinds | kinds | 56 |
Feed range | mm/r | Longitudinal:0.1-12; Cross:0.05-6; Top tool-post: 0.025-3 |
Metric threads range (kinds) | mm | 1-120 (44) |
Inch threads range (kinds) | TPI | 28-1/4 (31) |
Module threads range (kinds) | MP | 0.5-60 (45) |
Diametrical threads range (kinds) | DP | 1/2-56 (38) |
Distance from spindle center to tool base | mm | 53 |
Tool post swivel angle | ° | ±90° |
Cross slide travel | mm | 740 |
Top slide travel | mm | 360 |
Tool section size | mm | 50x50 |
Tool post feed per gar | mm | 0.05 |
Tailstock quill diameter | mm | 260 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | Metric 80 |
Main motor power | kw | 30 |
Machine length | mm | 6120/7120/8120/9120/11120/13120/15120/- |
Machine width | mm | 2430 |
Machine height | mm | 2580 |
* 4-jaw heavy duty independent chuck * Steady rest * Dead center * 4-station tool post * Cooling system * Work lamp * Electric moving tailstock * Tools & tool-box * Leveling wedge and bolts * Operation manual (English). | * Face plate * 2 or 3-axis DRO * Chuck guard * Tool-post guard * Rear splash guard * Roller support * Grinding attachment. |
