AL Series Heavy Duty Manual Lathe Machine Metal Turning with 6000 kg Loading Capacity
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-1250B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,790.00/sets 1-2 sets |
| Packaging Details: | wooden box |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1250 Mm | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 Kw | Voltage: | 220/380V |
| Dimension(L*W*H): | 4600*2150*1825 Mm | Weight (KG): | 6000 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Heavy Duty Horizontal Lathe | Keyword: | Horizontal Lathe |
| Model: | AL-1250B | Max. Swing Over Bed: | 1250 Mm |
| Distance Between Centers: | 1500 Mm | Max. Turning Length: | 1300 Mm |
| Loading Capacity: | 6000 Kg | Spindle Bore: | 130 Mm |
| Main Motor Power: | 22 Kw | Machine Size: | 4600*2150*1825 Mm |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Canada, Italy, Germany, Peru, Indonesia, Russia, Thailand, South Africa, Uzbekistan | Spindle Bore(mm): | 130 Mm |
| Max. Turned Length (mm): | 1300 Mm | Core Components: | Bearing, Motor, Other |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Products Description

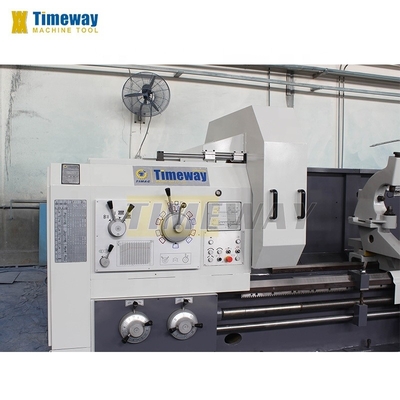

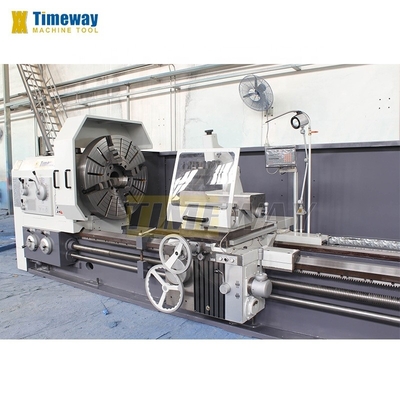

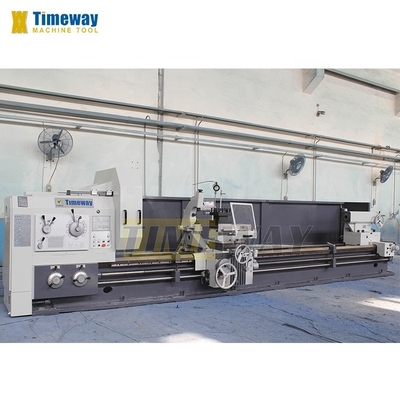

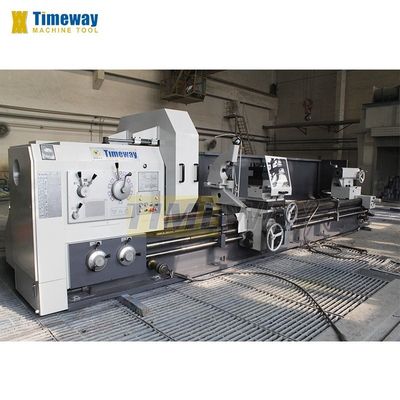

heavy duty horizontal lathe
Specification | Unit | AL-1250B |
Max. swing over bed | mm | 1250 |
Max. swing over cross slide | mm | 865 |
Distance between centers | mm | 1500/2000/3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 1300/1800/2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 755 |
Loading capacity | kg | 6000(opt: 8000) |
Spindle nose | - | A2-15 (8xM22) |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | Forward: 3.15-315, Reverse: 3.5-291 |
Spindle speed step | steps | Forward: 21, Reverse: 12 |
X/Z-axis feed kinds | kinds | 56/56 |
Feed range | mm | Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3 |
Metric threads range (kinds) | mm | 1-120 (44) |
Inch threads range (kinds) | TPI | 28-1/4 (31) |
Module threads range (kinds) | MP | 0.5-60 (45) |
Diametrical threads range (kinds) | DP | 1/2-56 (38) |
Distance spindle center to tool base | mm | 48 |
Tool post swivel angle | ° | ±90° |
Cross slide travel | mm | 580 |
Top slide travel | mm | 300 |
Tool section size | mm | 45x45 |
Rapid feed speed | mm/min | Longitudinal: 3740; Cross: 1870; Top tool-post: 935 |
Tailstock quill diameter | mm | 160 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | MT6 |
Main motor power | kw | 22 |
Machine length | mm | 4600/5100/6100/7100/8100/9100/11100/13100/15100/- |
Machine width | mm | 2150 |
Machine height | mm | 1825 |

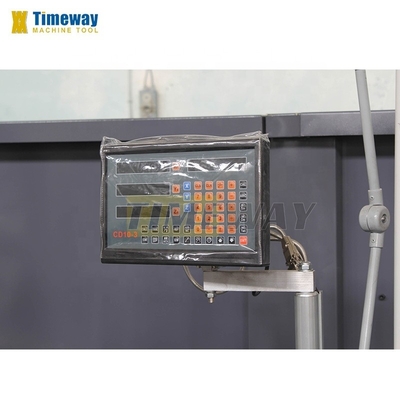

*4-jaw independent chuck * Steady rest (over 3M length) * Follow rest * Manual moving tailstock * Dead center * 4-station tool post * Cooling system * Work lamp * Tools & tool-box * Leveling wedge and bolts * Operation manual (English). | * 2 or 3-axis DRO * Chuck guard * Tool-post guard * Rear splash guard * Electric moving tailstock * Grinding attachment. |
