Horizontal Lathe Machine with 550mm Bad Width and Manual Operation at Affordable
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | AL-940B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $32,450.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 6 - 800 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 11 | Voltage: | 220V/380V |
| Weight (KG): | 3900 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Length Of Work Piece(mm): | 1500mm |
| Processing Capacity: | Heavy Duty | Spindle Bore: | 100 |
| Max. Swing Over Bed: | 940 | Max. Swing Over Cross Slide: | 660 |
| Main Motor Power: | 11kw | Diameter Of Tailstock Quill: | 100mm |
| Bad Width: | 550 | Name: | AL-940B |
| Keyword: | Lathe Machine For Mental | Condition: | New |
| Spindle Bore(mm): | 100 | Applicable Industries: | Garment Shops, Manufacturing Plant, Construction Works |
| Showroom Location: | France, Saudi Arabia, Russia, Thailand, Chile | Core Components: | Bearing, Gearbox, Engine |
| Max. Turned Length (mm): | 1350 Mm | Year: | 2022 |
| Port: | China Port | ||
Product Description
Summary
1. This series lathes are suitable for turning inner and outer cylindrical surfaces, conical surfaces and other rotating parts. They can process all kinds of commonly used metric, inch, modulus and diametrical threads, and can cut oil grooves and keyways.
2. It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
3. Adopt split type bed structure, the guide rail surface adopt double V-flat rails, 550mm bed width and the loading capacity can be up to 2000kg.
4. Spindle standard through the hole for the Ф100mm large hole; Large speed range with 18 speeds for machining a wide variety of workpieces.
3. Adopt split type bed structure, the guide rail surface adopt double V-flat rails, 550mm bed width and the loading capacity can be up to 2000kg.
4. Spindle standard through the hole for the Ф100mm large hole; Large speed range with 18 speeds for machining a wide variety of workpieces.
Product Description

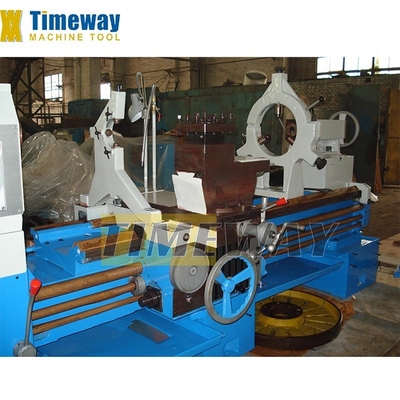

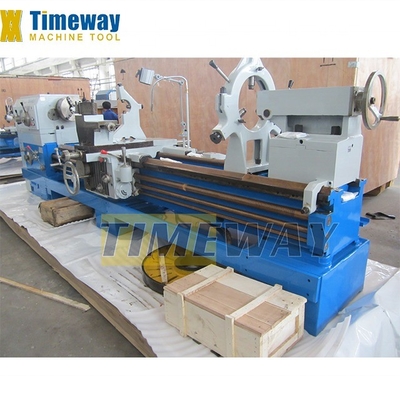

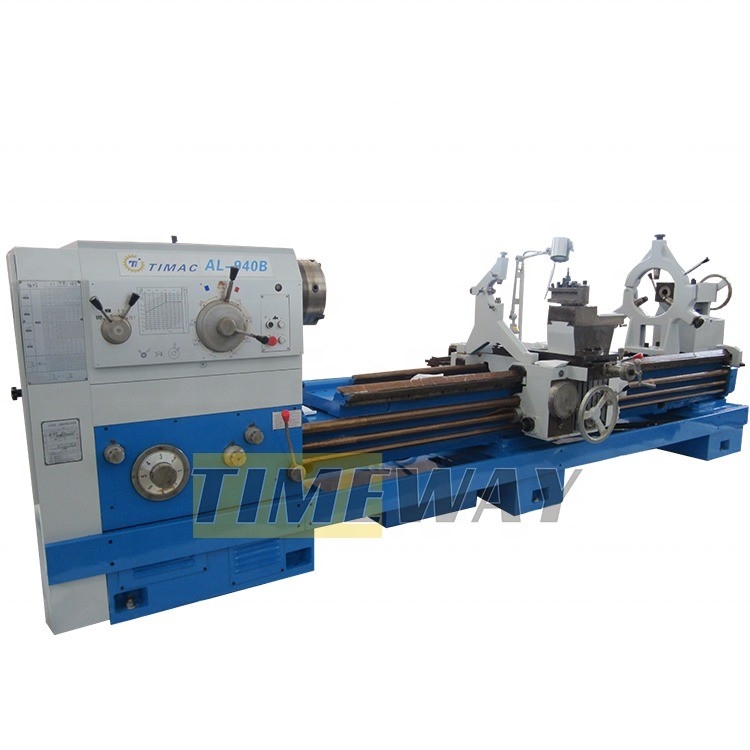

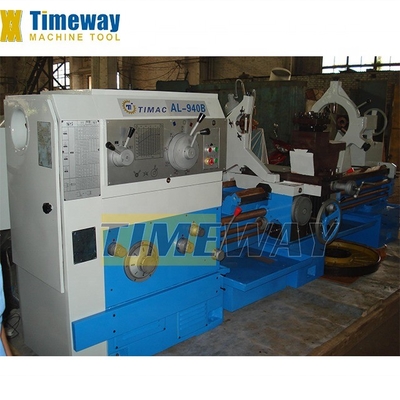

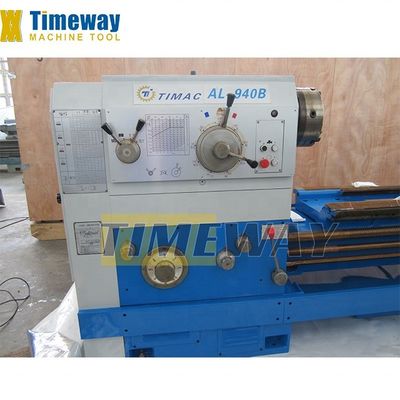

Heavy Duty Horizontal Lathe AL-940B
Specification
Item | Unit | AL-630B | AL-800B | AL-940B | |||
Capacities | Swing over bed | mm | 630 | 800 | 940 | ||
Swing over carriage | mm | 350 | 520 | 660 | |||
Max. length of workpiece | mm | 750, 1000, 1500, 2000, 3000, 4000, 5000, 6000, 7000, 9000, 10000, - | |||||
Max. turning length | mm | 600, 850, 1350, 1850, 2850, 3850, 4850, 5850, 6850, 8850, 9850, - | |||||
Span of guideway | mm | 550 | 550 | 550 | |||
Spindle | Spindle nose | C11 | |||||
Spindle hole | mm | 110 | |||||
Taper hole of spindle | 1:20/120 | ||||||
Range of spindle speeds | r/min | 7.5~1000 | 6~800 | 6~800 | |||
Number of spindle speeds | 18kinds | ||||||
Feed motion | Longitudinal and cross | r/min | 64; 0.1~24.32 | ||||
Cross-to-longitudinal feed rate | 1/2 | ||||||
Screw pitch of leadscrew | mm | 12 | |||||
Number and range of metric thread | mm | 50; 1~240mm | |||||
Number and range of inch thread | T.P.I | 26; 14~1 | |||||
Number and range of module thread | mm | 53; 0.5~120mm | |||||
Number and range of diametrical pitch thread | T.P.I | 24; 28~1 | |||||
Rapid traverse speed of carriage | mm/min | 4000 | |||||
Max. travel of cross slide | mm | 440 | 540 | 570 | |||
Max. travel of top slide | mm | 200 | |||||
Section of tool shank | mm | 32 | |||||
Machine overall dimension | Length | mm | 2958, 3275, 3725, 4225, 5225, 6275, 7355, 8355, 9275, 11275, 12275,- | ||||
Width | mm | 1393 | 1437 | 1430 | |||
Height | mm | 1537 | 1622 | 1690 | |||
Standard accessories:
3-jaw chuck
Steady rest (over 2M length)
Follow rest
Manual moving tailstock
Dead center
4-station tool post
Cooling system
Work lamp
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)
Steady rest (over 2M length)
Follow rest
Manual moving tailstock
Dead center
4-station tool post
Cooling system
Work lamp
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)
Optional accessories:
4-jaw independent chuck,
Face plate
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Quick changing tool post
Grinding attachment
Face plate
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Quick changing tool post
Grinding attachment
