Max. Turned Length mm 3000 mm Heavy-Duty Horizontal Lathe AL-1000B for High Precision
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | AL-1000B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $40,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | Other | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 | Voltage: | 110V/220V |
| Dimension(L*W*H): | 4600*2150*1700 | Weight (KG): | 20500 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Key Word: | Heavy Duty Horizontal Lathe | Spindle Bore: | 130mm |
| Max. Swing Over Bed: | 1000mm | Max. Swing Over Cross Slide: | 615mm |
| Distance Between Centers: | 1500/2000/3000/4000/5000/6000/8000/10000/12000mm | Max. Turning Length: | 1300/1800/2800/3800/4800/5800/7800/9800/11800mm |
| Bed Width: | 755mm | Loading Capacity: | 6000kg |
| Cross Slide Travel: | 520mm | Top Slide Travel: | 300mm |
| Condition: | New | Spindle Bore(mm): | 130 |
| Applicable Industries: | Home Use, Retail, Construction Works | Showroom Location: | Saudi Arabia, Indonesia, Morocco, South Korea, Chile, Colombia |
| Core Components: | Bearing, Pump, Gear, Motor, PLC | Max. Turned Length (mm): | 3000 Mm |
| Year: | 2023 | Port: | China Port |
Product Description
Product Description

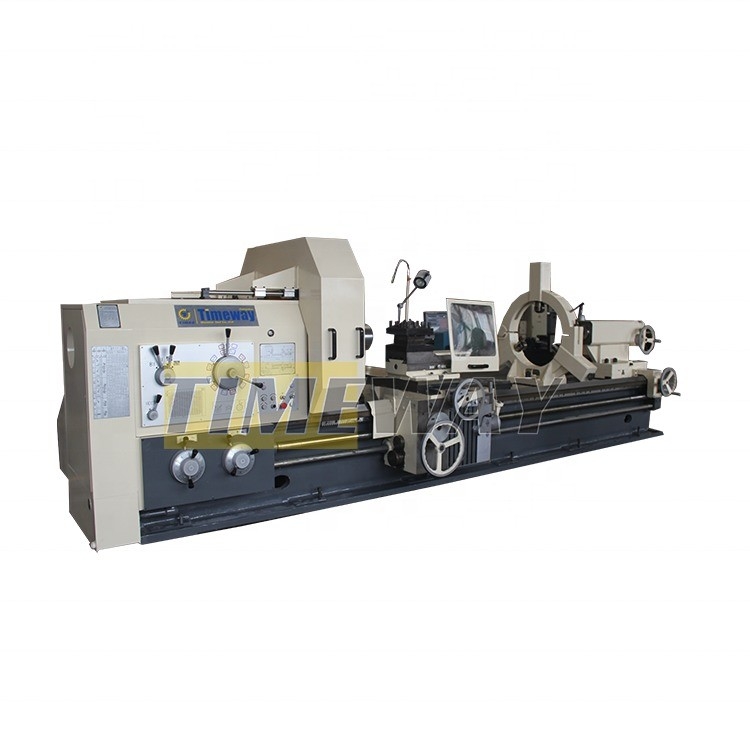

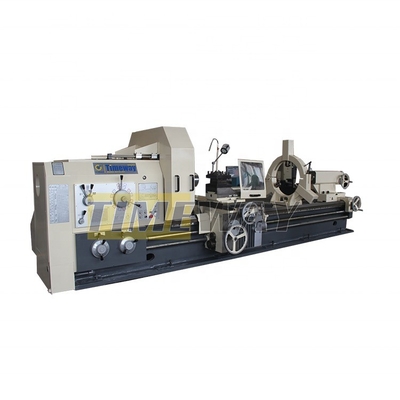

Heavy Duty Horizontal Lathe AL-1000B
Features:
1.This servies Horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal and external threads, such as metrical, inch, modulus and diametrical.
2.The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting; When finished, the roundness error is not more than 0.01mm, the cylindrical degree error is not more the 0.03mm in the measuring length of 300mm.
3.The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
Specification
Specification | Unit | AL-1000B |
Max. swing over bed | mm | 1000 |
Max. swing over cross slide | mm | 615 |
Distance between centers | mm | 1500/2000/3000/4000/5000/6000/8000/10000/12000 |
Max. turning length | mm | 1300/1800/2800/3800/4800/5800/7800/9800/11800 |
Bed width | mm | 755 |
Loading capacity | kg | 6000 |
Spindle nose | - | A2-15 (8xM22) |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | CCW: 3.15-315, CW: 3.5-291 |
Spindle speed step | steps | CCW: 21, CW: 12 |
Main motor power | kw | 22 |
Machine length | mm | 4600/5100/6100/7100/8100/9100/11100/13100/15100 |
Machine width | mm | 2150 |
Machine height | mm | 1700 |
Standard accessories:
* 4-jaw independent chuck
* Steady rest (over 3M length)
* Follow rest (over 3M length)
* Manual moving tailstock
* Dead center of tailstock
* 4-station tool post
* Cooling system
* Work lamp
* Tools & tool-box
* Leveling wedge and bolts
* Operation manual (English)
* Steady rest (over 3M length)
* Follow rest (over 3M length)
* Manual moving tailstock
* Dead center of tailstock
* 4-station tool post
* Cooling system
* Work lamp
* Tools & tool-box
* Leveling wedge and bolts
* Operation manual (English)
Optional accessories:
* 2 or 3-axis DRO
* Chuck guard
* Tool-post guard
* Rear splash guard
* Electric moving tailstock
* Grinding attachment
Machine Details

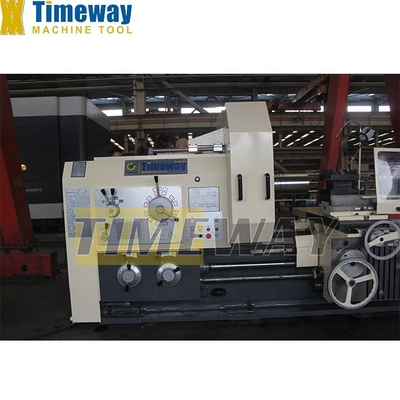

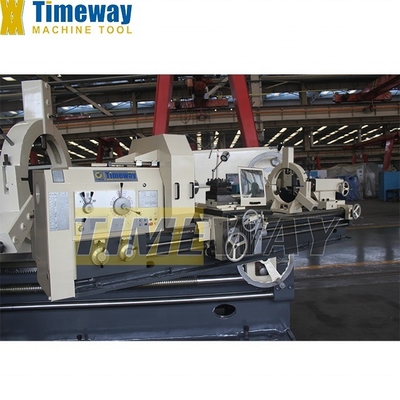

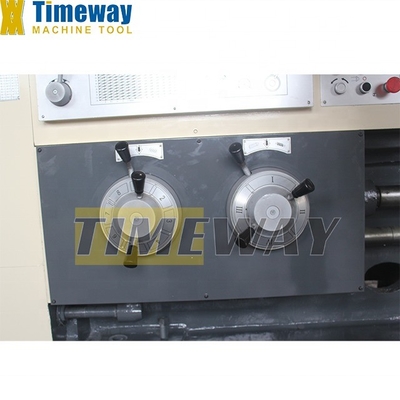

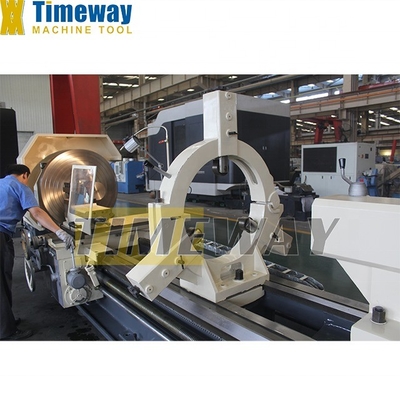

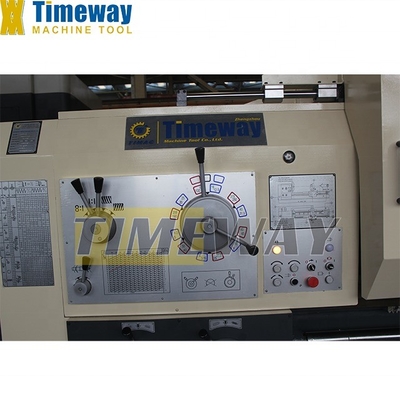

The above pictures are the detailed view of the machine.
