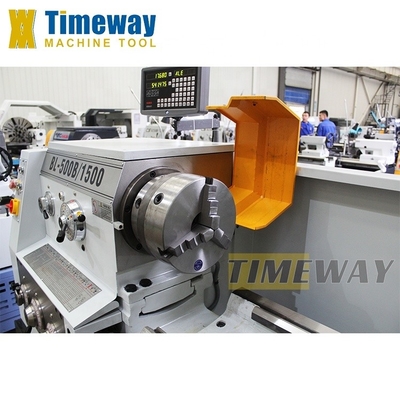

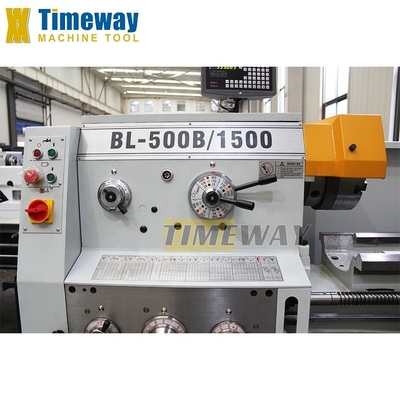

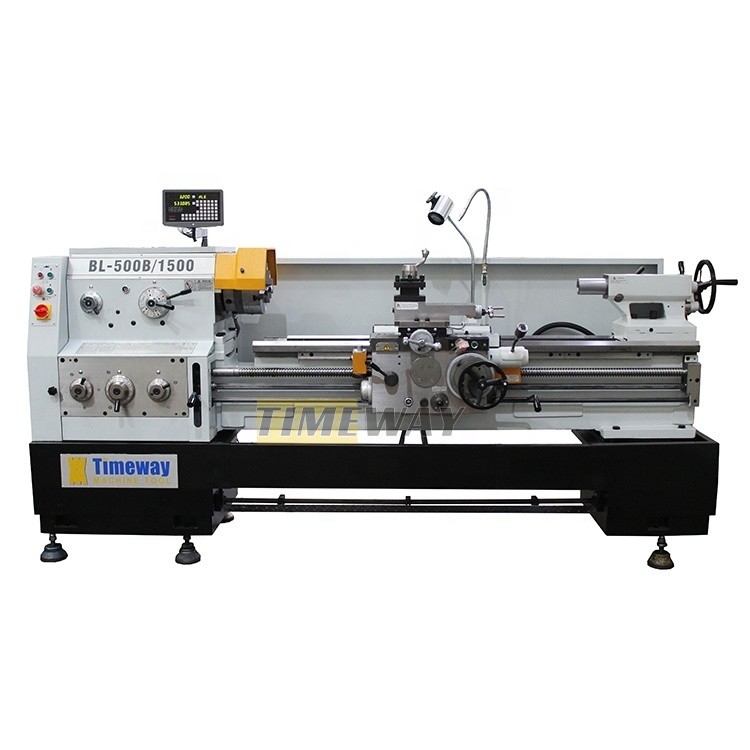

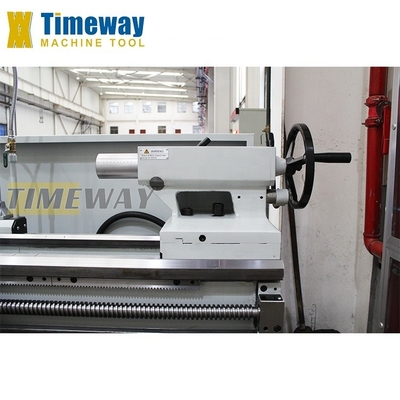

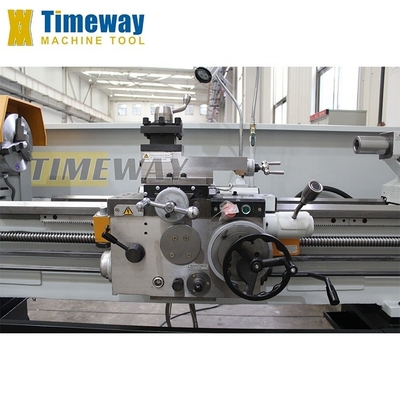

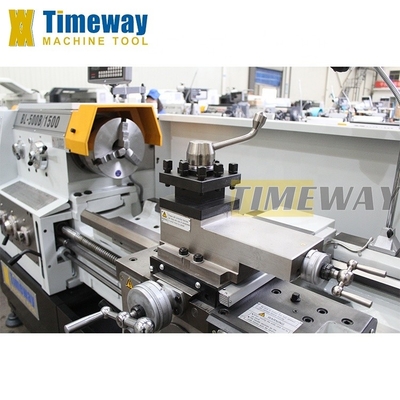

Machining Capacity Light Duty BL-500B Gap Bed Lathe with Max. Turning Length of 700mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | BL-500B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 700 | Range Of Spindle Speed(r.p.m): | 9 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Voltage: | 220V/380V/400V/415V |
| Dimension(L*W*H): | 2382*975*1230 | Weight (KG): | 2050 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Keyword: | Gap Bed Lathe Machine | Max. Swing Over Bed: | 500mm |
| Max. Swing Over Cross Slide: | 300mm | Gap Length: | 710mm |
| Distance Between Centers: | 750mm | Max. Turning Length: | 700mm |
| Spindle Bore: | 82mm | Cross Slide Travel: | 320mm |
| Main Motor Power: | 7.5kw | Rapid Feed Motor Power: | 0.3kw |
| Condition: | New | Spindle Bore(mm): | 82 |
| Showroom Location: | United States, Germany, Philippines, Saudi Arabia, Pakistan, Russia, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh, Japan | Core Components: | Bearing, Gear, Motor, Gearbox, Engine |
| Max. Turned Length (mm): | 700 Mm | Year: | 2021 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other | Port: | China Port |
Product Description
Product Description
This is a Gep-bed Lathe with high accuracy and high speed . BL-500B has many models for you to choose.
Specification
SPECIFICATION | UNIT | BL-500B |
Spindle bore | mm | 82 |
Machine weight | kg | 2050 |
Max. swing over bed | mm | 500 |
Max. swing over cross slide | mm | 300 |
Gap length | mm | 240 |
Distance between centers | mm | 750/1000/1500/2000/3000 |
Max. turning length | mm | 700/950/1450/1950/2950 |
Cross slide travel | mm | 320 |
Main motor power | kw | 7.5 |
Rapid feed motor power | kw | 0.3 |
Machine length | mm | 2380/2632/3132/3632/4632 |
Machine width | mm | 975 |
Machine height | mm | 1230 |
STANDARD ACCESSORIES
3-jaw chuck
4-jaw chuck
Face plate
Dead center
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Leveling wedge
Tool-box
Operation manuals
OPTIONAL ACCESSORIES
Quick change tool post
2/3-axis digital readout
Living center
Taper turning attachment
Chuck guard
Leadscrew guard
Tool post guard
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized andcentralized , then they will be shipped to your designated place
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibitions
Some exhibitions about us
Certifications
Some certifications about us
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
Positive Comments From Customers
Some positive comments about us
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
