Sell 130mm Spindle Bore Heavy Duty Horizontal Lathe Machine with 755mm Bed Width
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AL-1000B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $42,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty, Heavy Duty | Width Of Bed (mm): | 350 |
| Type: | Horizontal | Spindle Motor Power(kW): | 22 |
| Voltage: | As Required | Dimension(L*W*H): | 4600*2150*1700 |
| Weight (KG): | 6000 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Heavy Duty Lathe Machine |
| Keyword: | Metal Turning Lathe | Product Type: | Horizontal Heavy Lathe |
| Max. Length Of Workpiece: | 1500mm | Spindle Bole: | 130mm |
| Max. Swing Diameter: | 1000mm | Distance Between Centers: | 1500mm |
| Bed Width: | 755mm | Color: | Customizable |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining |
| Showroom Location: | Canada, Turkey, United Kingdom, United States, Italy, France, Germany, India, Mexico, Russia, Spain, Japan, Malaysia | Core Components: | Engine |
| Spindle Bore(mm): | 130mm | Max. Turned Length (mm): | 1300 Mm |
| Year: | 2021 | Port: | China Port |
Product Description
Product Description

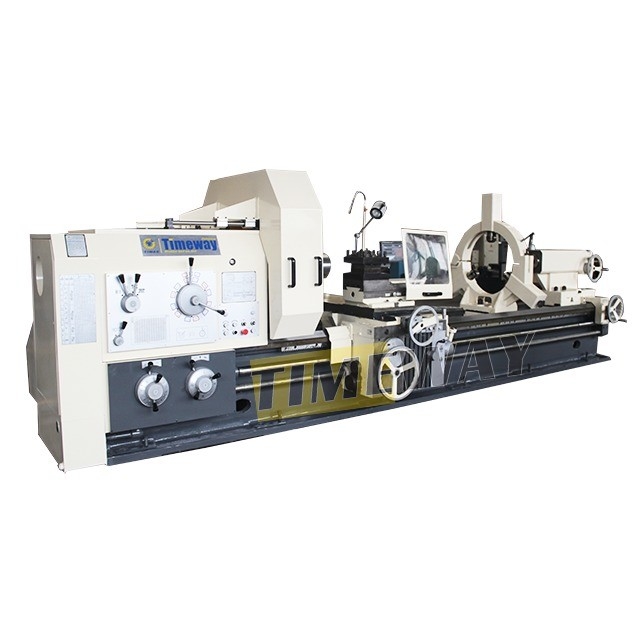

Heavy Duty Horizontal Lathe
Features:
1. This servies Horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals.
2. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal and
external threads,such as metrical, inch, modulus and diametrical.
3. The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful
cutting;
1. This servies Horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals.
2. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal and
external threads,such as metrical, inch, modulus and diametrical.
3. The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful
cutting;
Technical Parameter
Specifications | Unit | AL-1000B | AL-1250B | AL-1400B | AL-1600B | |||
Swing over bed | mm | 1000 | 1250 | 1400 | 1640 | |||
Swing over carriage | mm | 615 | 865 | 1015 | 1250 | |||
Max. length of workpiece | mm | 1500/2000/3000/4000/5000/6000/8000/10000/12000 | ||||||
Max. turning length | mm | 1300/1800/2800/3800/4800/5800/7800/9800/11800 | ||||||
Span of guideway | mm | 755 | 755 | 755 | 755 | |||
Max. weight of workpiece | kg | 6000 | 6000 | 6000 | 6000 | |||
Spindle nose | - | A2-15 | A2-15 | A2-15 | A2-15 | |||
Spindle bore | mm | 130 | 130 | 130 | 130 | |||
Taper hole of spindle | Metric 140 | Metric 140 | Metric 140 | Metric 140 | ||||
Range of spindle speeds | r/min | foreward:3.15-315, reversal：3.5-291 | foreward:3.15-315, reversal：3.5-291 | foreward:3.15-315, reversal：3.5-291 | foreward:3.15-315, reversal：3.5-291 | |||
No. of spindle speeds | steps | foreward:21, reversal：12 | foreward:21, reversal：12 | foreward:21, reversal：12 | foreward:21, reversal：12 | |||
No. of longitudinal and cross | kinds | 56/56 | 56/56 | 56/56 | 56/56 | |||
Feed per revolution | mm | long longitudinal:0.1-12, Cross:0.05-6, top tool-post：0.025-3 | ||||||
No. and range of metric thread | mm | 1-120 (44) | 1-120 (44) | 1-120 (44) | 1-120 (44) | |||
No. and range of inch thread | TPI | 28-1/4 (31) | 28-1/4 (31) | 28-1/4 (31) | 28-1/4 (31) | |||
No. and range of module thread | MP | 0.5-60 (45) | 0.5-60 (45) | 0.5-60 (45) | 0.5-60 (45) | |||
No. and range of dia. thread | DP | 1/2-56 (38) | 1/2-56 (38) | 1/2-56 (38) | 1/2-56 (38) | |||
Distance of spindle and tool plane | mm | 48 | 48 | 48 | 48 | |||
Tool post swing range | ° | ±90 | ±90 | ±90 | ±90 | |||
Max. travel of cross slide | mm | 520 | 580 | 580 | 630 | |||
Max. travel of top slide | mm | 300 | 300 | 300 | 300 | |||
Section of tool shank | mm | 45x45 | 45x45 | 45x45 | 45x45 | |||
Rapid travel speeds | mm/min | longitudinal: 1870, Cross: 3740, top tool-post: 935 | ||||||
Dia. of tailstock quill | mm | 160 | 160 | 160 | 160 | |||
Travel of tailstock quill | mm | 300 | 300 | 300 | 300 | |||
Taper hole of tailstock quill | - | MT6 | MT6 | MT6 | MT6 | |||
Main motor power | kw | 22 | 22 | 22 | 22 | |||
Length | mm | 4600/5100/6100/7100/8100/9100/11100/13100/15100 | ||||||
Width | mm | 2150 | 2150 | 2150 | 2150 | |||
Height | mm | 1700 | 1825 | 1950 | 2150 | |||

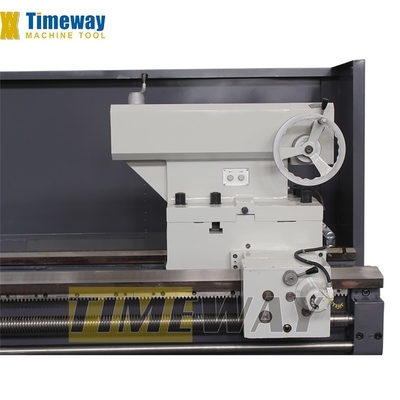

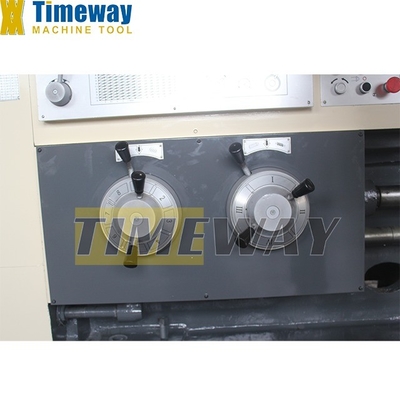

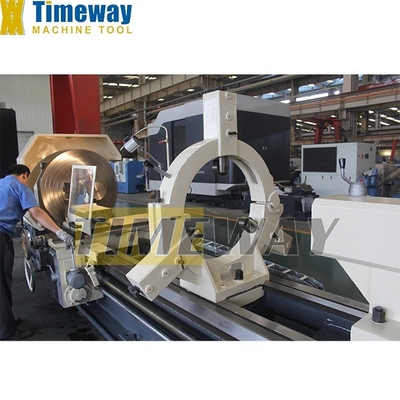

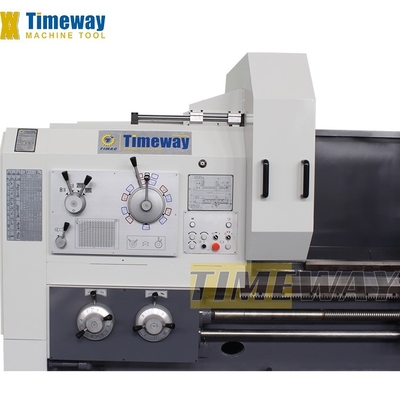

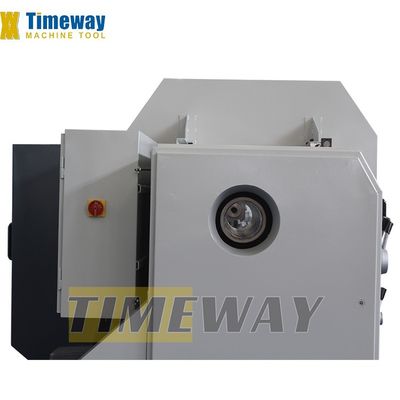

Detail Images
Company Profile
*Business Range: lndustrial Equipment & Components, Manufacturing & Processing Machinery
*Main Products: Lathe, Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , ShearingMachine，Press Brakes ， Rolling Machine， Forklift Truck ， Vehicle Machine
*Management System Certification:ISO 9001,ISO 14001
