Gap-bed Lathe CL-460 /Horizontal with 460mm Swing Over Bed and 2000mm Max. Length of Workpiece
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | CL-460 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $8,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2000 | Range Of Spindle Speed(r.p.m): | 25 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 5.5 | Dimension(L*W*H): | 3300x1120x1620mm |
| Weight (KG): | 1965 KG | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Swing Over Bed: | 460mm |
| Max.swing Over Cross Slide: | 270mm | Distance Between Centers: | 2000mm |
| Spindle Bore: | 58mm | Main Motor: | 5.5kw |
| Machine Dimesion(L*W*H): | 3250*108*137 | Tool Section Size: | 25*25mm |
| Coolant Pump Motor: | 0.1kw | Packing Size (LxWxH): | 3300x1120x1620mm |
| Gross Weight: | 2295kg | Condition: | New |
| Spindle Bore(mm): | 58 | Applicable Industries: | Hotels, Home Use, Construction Works |
| Showroom Location: | France, Russia, Morocco | Core Components: | Bearing, Pump, Gear |
| Max. Turned Length (mm): | 2000 Mm | Year: | 2022 |
Product Description
Features:
1. Inductive hardened, polished grey cast-iron machine bed.
2. Easy, smooth and precisely adjustable speed and feed settings.
3. Hardened, polished gears and shafts, also in feed gear unit.
4. Centrally located, logical switches for feeds and threads with leadscrew and feed rod.
5. Head stock gears are made of high quality steel ground and hardened more than HRC 48°.
2. Easy, smooth and precisely adjustable speed and feed settings.
3. Hardened, polished gears and shafts, also in feed gear unit.
4. Centrally located, logical switches for feeds and threads with leadscrew and feed rod.
5. Head stock gears are made of high quality steel ground and hardened more than HRC 48°.
Product Description

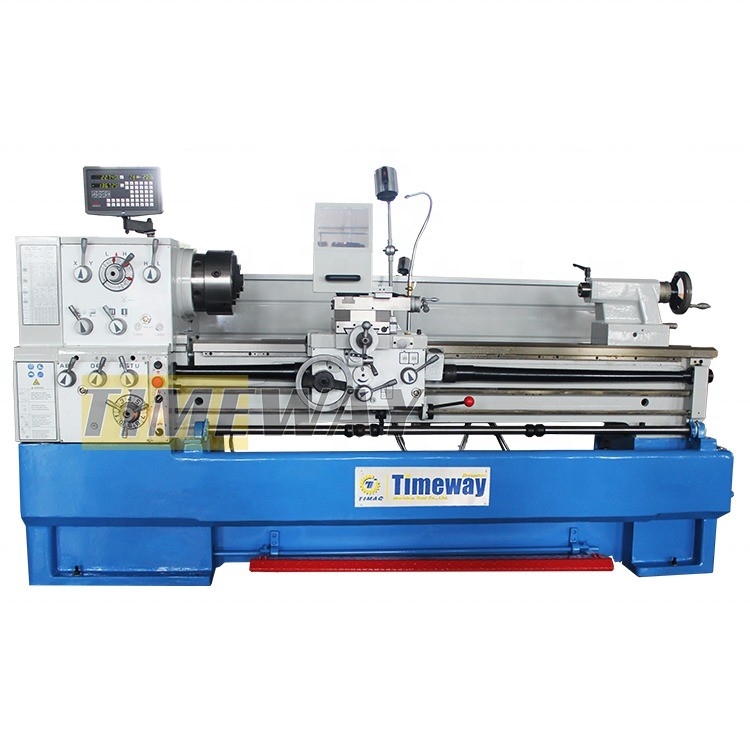

Gap-Bed Lathe CL-460
Specification
Specifications | Unit | CL-410 | CL-460 |
Swing over bed | mm | 410 | 460 |
Swing over cross slide | mm | 220 | 270 |
Swing diameter in gap | mm | 640 | 690 |
Distance between centers | mm | 1000/1500/ 2000 | 1000/1500/ 2000 |
Valid length of gap | mm | 165 | 165 |
Width of bed | mm | 300 | 300 |
Spindle nose | - | D1-6 | D1-6 |
Spindle bore | mm | 58 | 58 |
Taper of spindle bore | - | MT6 | MT6 |
Range of spindle speed | rpm | 25-2000 (12) | 25-2000 (12) |
Compound rest travel | mm | 128 | 128 |
Cross slide travel | mm | 285 | 285 |
Max section of tool | mm | 25x25 | 25x25 |
Lead screw thread | - | 40x4T.P.I or pitch 6mm | 40x4T.P.I or pitch 6mm |
Quill taper | - | MT4 | MT4 |
Main motor power | kw | 5.5 | 5.5 |
Coolant pump motor | kw | 0.1 | 0.1 |
Overall dimension (LxWxH) | cm | 220/275/325x108x134 | 220/275/325x108x137 |
Packing size (LxWxH) | cm | 225/280/330x112x162 | 225/280/330x112x162 |
Net weight | kg | 1580/1745/1900 | 1645/1810/1965 |
Gross weight | kg | 1844/2049/2229 | 1910/2115/2295 |
Accessories
Standard accessories:
3-jaw chuck
4-jaw chuck
Taper turning attachment
Face plate
Dead centers
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system

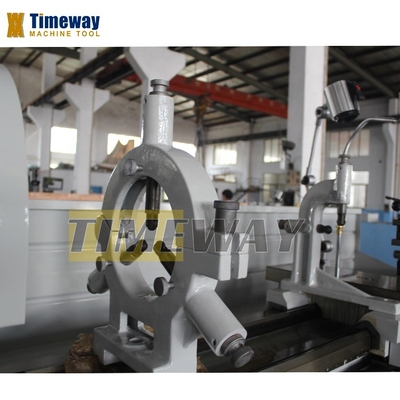

Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Foundation bolts
Tool-box & tools
Operation manual
4-jaw chuck
Taper turning attachment
Face plate
Dead centers
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Foundation bolts
Tool-box & tools
Operation manual
Optional accessories:
Living center
Taper turning attachment
Drill chuck
Quick change tool holder
2/3 axis digital readout
Chuck cover
Leadscrew cover
Tool post cover
Driving plate

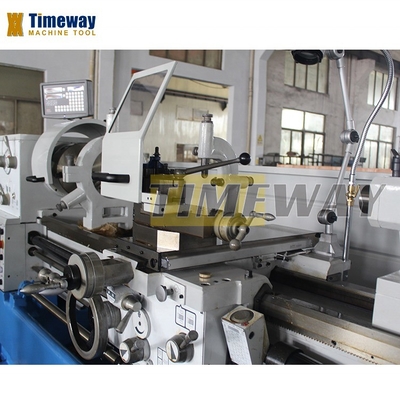

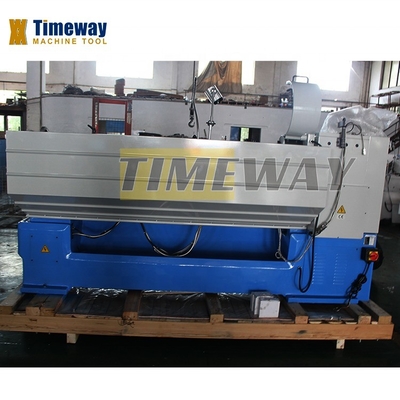

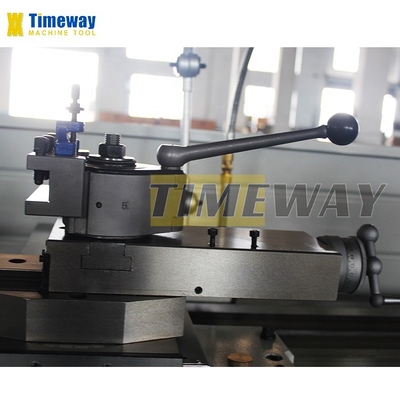

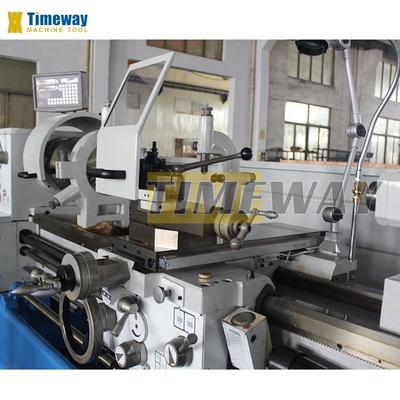

Machine Details
