1000mm Distance Manual Precision Gear Head Engine Lathe with 330mm Max. Swing Over Bed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | T-1340A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 70 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 1.5 | Voltage: | 380V/50HZ |
| Dimension(L*W*H): | 1940*760*1520 | Weight (KG): | 560 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max.swing Over Bed: | 330mm | Max.swing Over Cross Slide: | 198mm |
| Max.swing In Gap: | 450mm | Distance Between Centers: | 1000mm |
| Spindle Bore: | 38mm | Spindle Speed: | 70-2000(8steps)rpm |
| Main Motor: | 1.5kw | Net Weight/Gross Weight: | 560/600kg |
| Packing Dimension: | 1940*760*1520mm | Key Words: | China Engine Lathe |
| Condition: | New | Spindle Bore(mm): | 38 |
| Showroom Location: | United States, Germany, Philippines, Saudi Arabia, Pakistan, Russia, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh, Japan | Core Components: | Bearing, Gear, Motor, Gearbox, Engine |
| Max. Turned Length (mm): | 1000 Mm | Year: | 2022 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other | Port: | China Port |
Product Description
Product Description

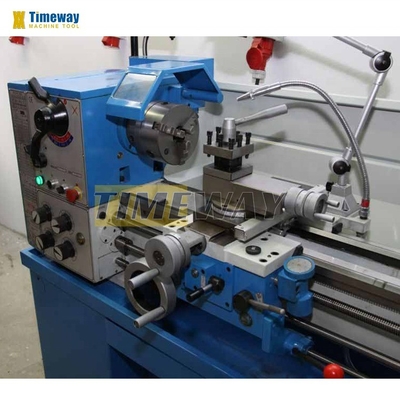

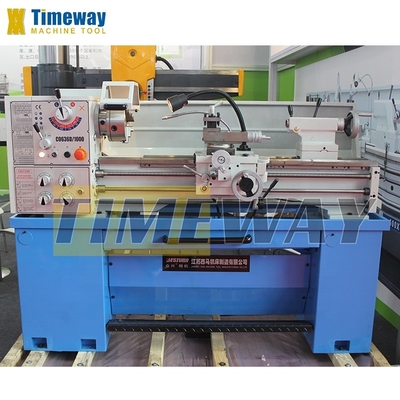

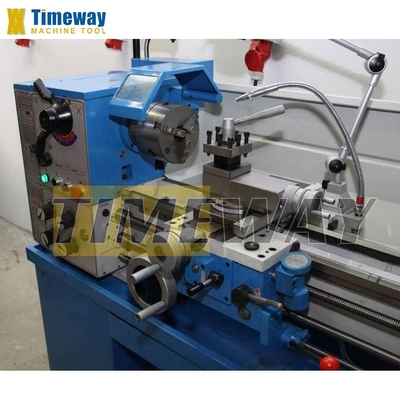

Engine lathe T-1340A
Specification
Specification | Unit | T-1340A |
Max.swing over bed | mm | 330 |
Max.swing over cross slide | mm | 198 |
Max.swing in gap | mm | 450 |
Distance between centers | mm | 1000 |
Spindle bore | mm | 38 |
Spindle speed | rpm | 70-2000(8steps) |
Main motor | kw | 1.5 |
Net weight/Gross weight | kg | 560/600 |
Packing dimension | mm | 1940×760×1520 |
Accessories
Standard accessories:
* 3 jaw chuck, 4 jaw chuck
* Face plate, steady rest
* Follow rest, oil gun
* Dead center
* Changing gears
* Reduction sleeve
* Chasing dial indicator
* Working light
* Coolant system
* Tools and tool box
* Operator manual
* Face plate, steady rest
* Follow rest, oil gun
* Dead center
* Changing gears
* Reduction sleeve
* Chasing dial indicator
* Working light
* Coolant system
* Tools and tool box
* Operator manual
Optional accessories:
* Foot brake system
* Digital readout system (DRO)
* Quick change tool post & holders
* Taper turning attachment
* Digital readout system (DRO)
* Quick change tool post & holders
* Taper turning attachment
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field. Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibitions
This is a picture of clients visiting our company when we hold exhibitions around the world.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
