T Series High Speed Precision Lathe Machine for Metal Turning 1000mm Max. Turned Length
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | T-1340B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,200.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 70 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 187 |
| Type: | Horizontal | Spindle Motor Power(kW): | 1.5KW |
| Voltage: | 220V/380V/400V/415V | Dimension(L*W*H): | 1940*760*1520 |
| Weight (KG): | 495 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max.swing Over Bed: | 300mm |
| Max.swing In Gap: | 476mm | Longitudinal Feed Range: | 0.067-1.019mm/rev |
| Cross Feed Range: | 0.018-0.275mm/rev | Metric Threads: | 0.45-10mm |
| Inch Threads: | 31/2-80T.P.I | Spindle Nose: | D4 |
| Spindle Bore: | 38mm | Spindle Bore Taper: | M.T.#5 |
| Key Word: | China Engine Lathe | Condition: | New |
| Spindle Bore(mm): | 38 | Showroom Location: | United States, Germany, Philippines, Saudi Arabia, Pakistan, Russia, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh, Japan |
| Core Components: | Bearing, Gear, Motor, Gearbox, Engine | Max. Turned Length (mm): | 1000 Mm |
| Year: | 2021 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other |
| Port: | China Port | ||
Product Description
Product Description

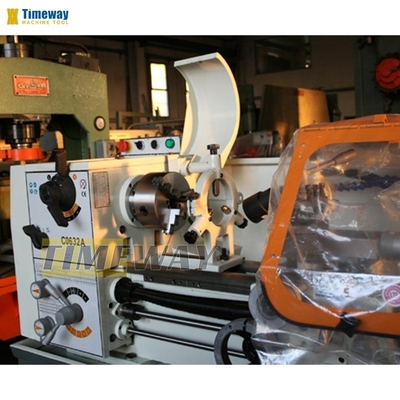

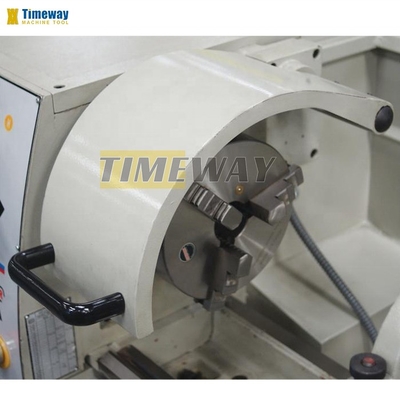

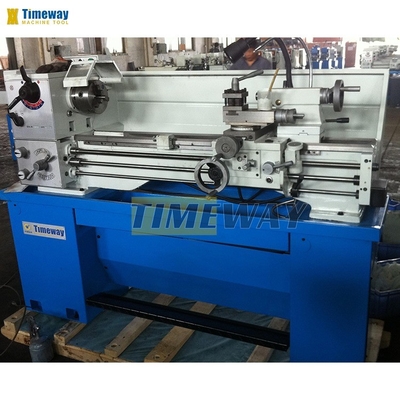

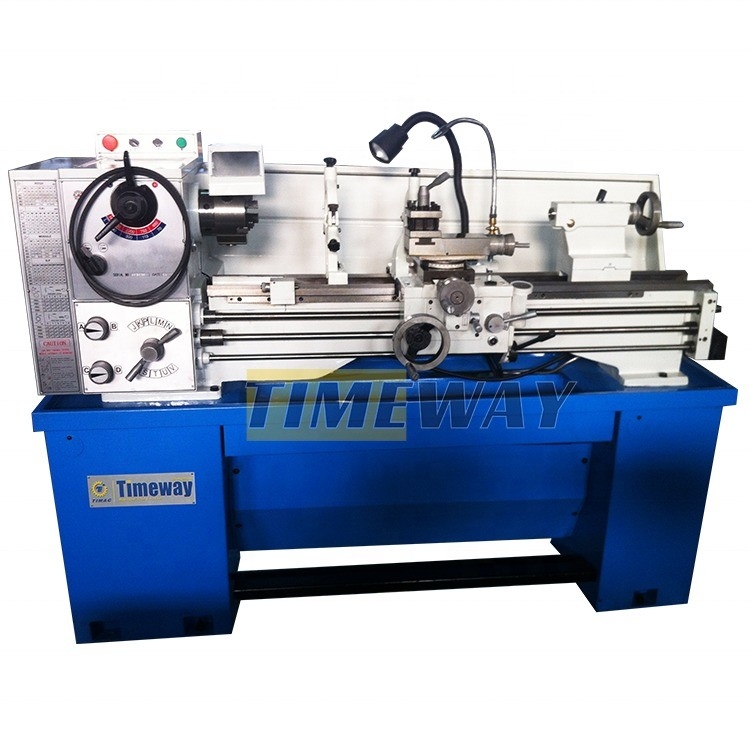

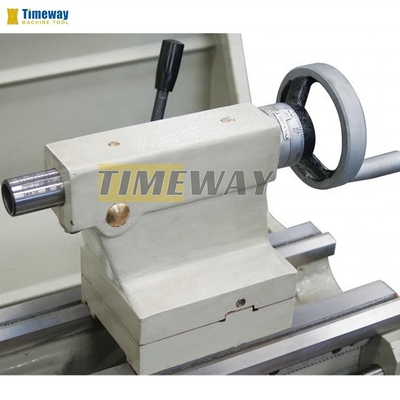

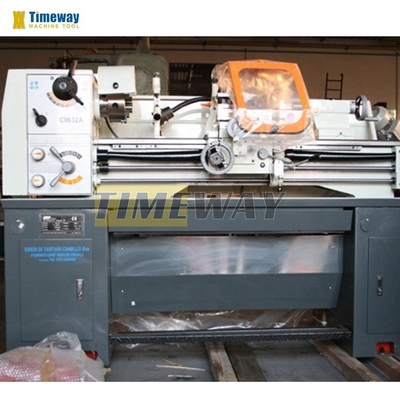

Engine Lathe Machine T-1340B
Feature:
* Precision ground and supersonic frequency hardened bed ways.
* The spindle is supported with precision roller bearing;
* Headstock gears are made of high quality steel, ground and hardened;
* Removable gap is provided for larger diameter work;
* Easy operating gear box has various feeds and thread cutting function
* The spindle is supported with precision roller bearing;
* Headstock gears are made of high quality steel, ground and hardened;
* Removable gap is provided for larger diameter work;
* Easy operating gear box has various feeds and thread cutting function
Specification
Specification | Unit | T-1340B |
Max.swing over bed | mm | 300 |
Max.swing in gap | mm | 476 |
Longitudinal feed range | mm/rev | 0.067-1.019 |
Cross feed range | mm/rev | 0.018-0.275 |
Metric Threads | mm | 0.45-10 |
Inch threads | T.P.I | 31/2-80 |
Spindle nose | - | D4 |
Spindle bore | mm | 38 |
Spindle bore taper | - | M.T.#5 |
Standard accessories：
3 jaw chuck
4 jaw chuck
Face plate
Steady rest
Follow rest
Oil gun
Dead center
Changing gears
Reduction sleeve
Chasing dial indicator
Optional accessories：
Coolant system
Working light
Foot brake system
Digital readout system (DRO)
Quick change tool post & holders
Taper turning attachment
Packing & Delivery
Wooden cases(can be fumigated)
