Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | T-1440B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,990.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 45 - 1800 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 0 |
| Type: | Horizontal | Spindle Motor Power(kW): | 1.5 |
| Voltage: | 380v 50hz | Dimension(L*W*H): | 1940*760*1520mm |
| Weight (KG): | 750 KG | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Center Height: | 178mm |
| Max.swing Over Bed: | 356mm | Max.swing Over Cross Slide: | 220mm |
| Max.swing In Gap: | 506mm | Distance Between Centers: | 1000mm |
| Spindle Nose: | D4 | Spindle Bore: | 38mm |
| Packing Dimension: | 1940*760*1520mm | Main Motor: | 1.5kw |
| Spindle Bore Taper: | M.T.#3 | Condition: | New |
| Spindle Bore(mm): | 38 | Applicable Industries: | Manufacturing Plant, Retail, Construction Works |
| Showroom Location: | France, Germany, Viet Nam, Peru, Saudi Arabia | Core Components: | Bearing, Pump, Gear, Motor, Other, Engine |
| Max. Turned Length (mm): | 1000 Mm | Year: | 2022 |
Product Description
Features:
1) Precision ground and supersonic frequency hardened bed ways.
2) The spindle is supported with precision roller bearing.
3) Headstock gears are made of high quality steel, ground and hardened
4) Removable gap is provided for larger diameter work

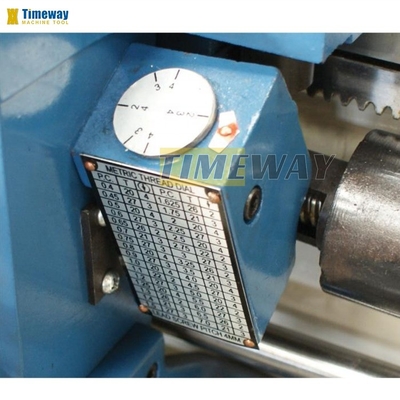

5) Easy operating gear box has various feeds and thread cutting function
2) The spindle is supported with precision roller bearing.
3) Headstock gears are made of high quality steel, ground and hardened
4) Removable gap is provided for larger diameter work
5) Easy operating gear box has various feeds and thread cutting function
Product Description

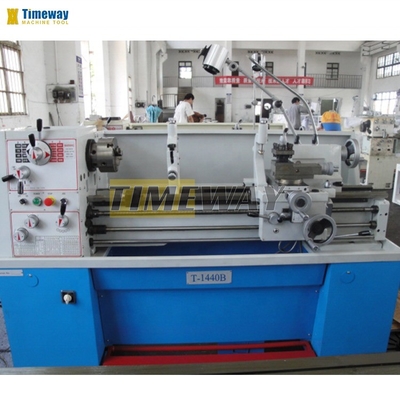

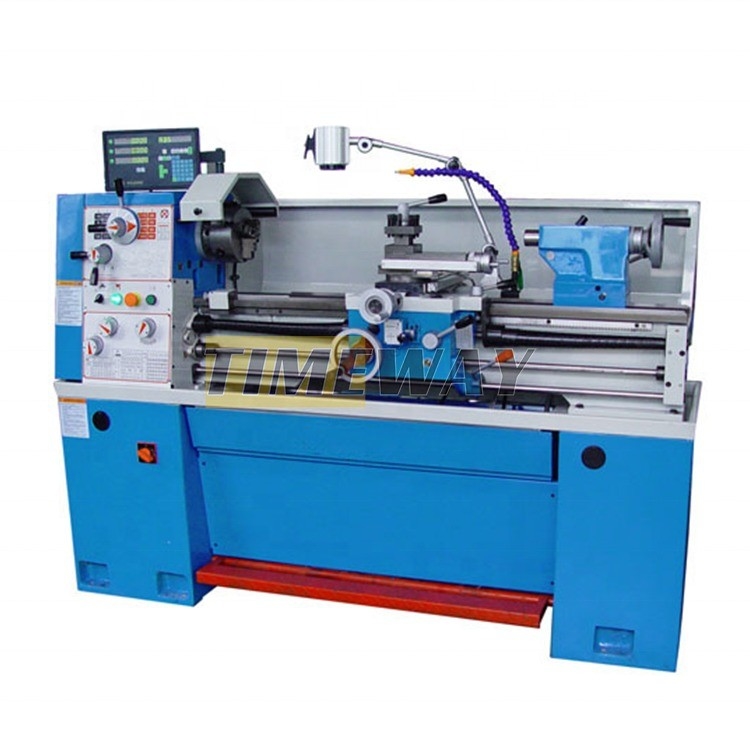

Engine lathe machine T-1440B
Specification
Specification | Unit | T-1440B |
Max.swing over bed | mm | 356 |
Max.swing in gap | mm | 506 |
Longitudinal feed range | mm/rev | 0.043-0.653 |
Cross feed range | mm/rev | 0.015-0.220 |
Metric Threads | mm | 0.4-7 |
Inch threads | TPI | 4-112 |
Max.swing over cross slide | mm | 220 |
Spindle nose | - | D4 |
Spindle bore | mm | 38 |
Spindle bore taper | - | M.T.#3 |
Standard accessories：

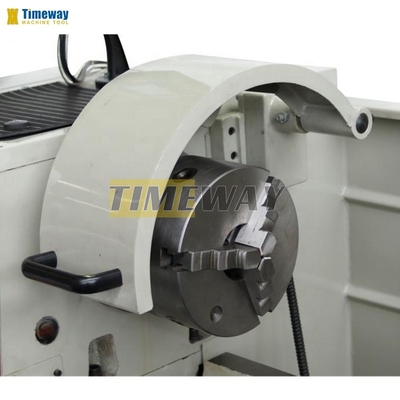

3 jaw chuck,
changing gears
dead centers
reductions sleeve
oil gun
coolant system
working light.
Optional accessories：

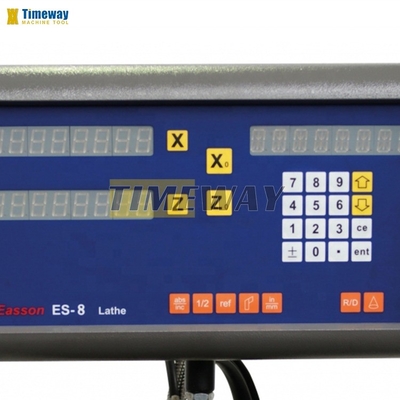

digital readout system(DRO)
quick change tool post & holders
taper turning attachment.
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition&Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
