Gap-bed Lathe Machine with Distance between Centers 1000mm and Max. Sawing Over Bed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | BL-500B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 750/1000/1500/2000/3000 | Range Of Spindle Speed(r.p.m): | 9 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 300 |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Voltage: | 220V/380V | Dimension(L*W*H): | 2382*975*1230 |
| Weight (KG): | 2050 KG | Warranty: | 2 Years |
| Key Selling Points: | Easy To Operate | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Distance Between Centers: | 750/1000/1500/2000/3000 |
| Processing Capacity: | Medium Duty | Spindle Bole: | 82 |
| Name: | Manual Lathe | Machine Type: | Horizontal Metal Turning Lathe Machine |
| Keyword: | Turning Machine | Precision: | High Precision Machine |
| CNC Or Not: | Nomal | Application: | Precision Metal Turning |
| Color: | Customrized | Condition: | New |
| Spindle Bore(mm): | 82 | Applicable Industries: | Manufacturing Plant, Retail, Construction Works |
| Showroom Location: | Canada, Turkey, United Kingdom, Italy, Philippines, India, Spain | Core Components: | Bearing, Gear, Motor, Gearbox |
| Max. Turned Length (mm): | 700 Mm | Year: | 2019 |
| Port: | China Port | ||
Product Description
Product Description

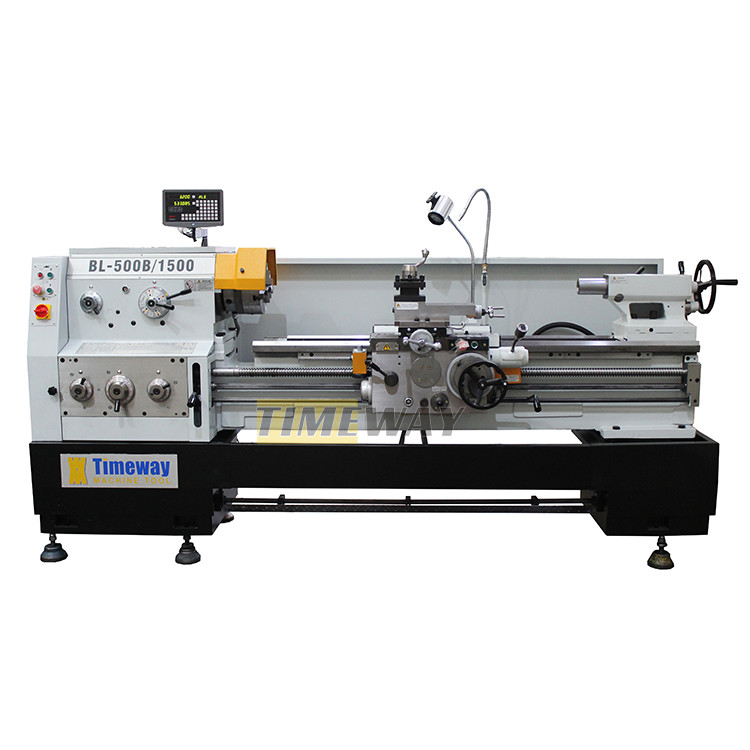

Conventional Gap-bed Lathe
The series gap bed lathe is suitable for all kinds of turning work, such as internal and external turning, taper turning, and
other rotary parts turning, end face turning, also turning all kinds of common thread: Inch, Metric, Module and D.P; perform
drilling, reaming, tapping and groove broaching.
other rotary parts turning, end face turning, also turning all kinds of common thread: Inch, Metric, Module and D.P; perform
drilling, reaming, tapping and groove broaching.
Specification
Specification | Unit | BL-500B | BL-660B |
Max. swing over bed | mm | 500 | 660 |
Max. swing over cross slide | mm | 300 | 420 |
Max. swing over gap | mm | 710 | 870 |
Gap length | mm | 240 | 240 |
Distance between centers | mm | 750/1000/1500/2000/3000 | 750/1000/1500/2000/3000 |
Max. turning length | mm | 700/950/1450/1950/2950 | 700/950/1450/1950/2950 |
Spindle bore | mm | Φ82 | Φ82 |
Spindle taper | - | Φ90, 1:20 | Φ90, 1:20 |
Spindle nose | - | ISO 702/II No.8 | ISO 702/II No.8 |

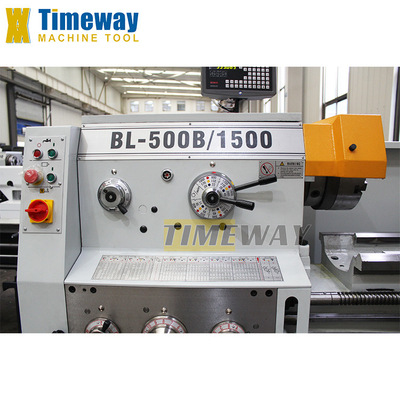

Spindle speed range (steps) | rpm | 9-1600 (24) | 9-1600 (24) |

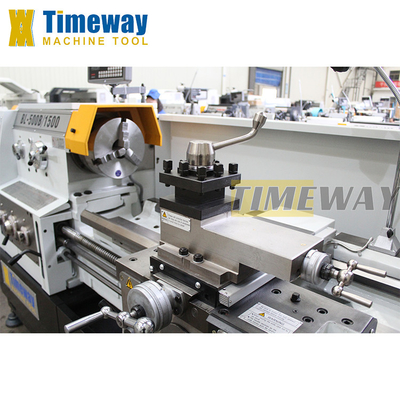

Top slide travel | mm | 145 | 145 |

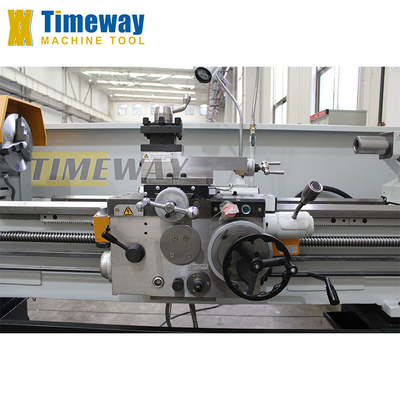

Cross slide travel | mm | 320 | 310 |
Tool section size | mm | 25x25 | 25x25 |
X-axis rapid feed speed | m/min | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed speed | m/min | 50HZ: 4.5; 60HZ: 5.4 | 50HZ: 4.5; 60HZ: 5.4 |
X-axis feed range | mm/r | 0.012-2.73 (93) | 0.012-2.73 (93) |
Z-axis feed range | mm/r | 0.028-6.43 (93) | 0.028-6.43 (93) |
Metric threads range (kinds) | mm | 0.5-224 (48) | 0.5-224 (48) |
Inch threads range (kinds) | TPI | 72-1/8 (46) | 72-1/8 (46) |
Module threads range (kinds) | MP | 0.5-112 (42) | 0.5-112 (42) |
Diametrical threads range (kinds) | DP | 56-1/4 (45) | 56-1/4 (45) |

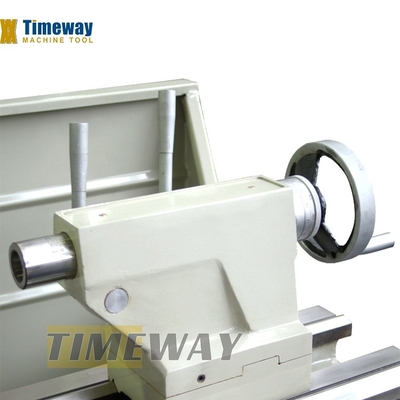

Tailstock quill diameter | mm | Φ75 | Φ75 |
Tailstock quill travel | mm | 150 | 150 |
Tailstock quill taper | - | MT5 | MT5 |
Main motor power | kw | 7.5 | 7.5 |
Rapid feed motor power | kw | 0.3 | 0.3 |
Coolant pump motor power | kw | 0.12 | 0.12 |
Machine length | mm | 2382/2632/3132/3632/4632 | 2382/2632/3132/3632/4632 |
Machine width | mm | 975 | 975 |
Machine height | mm | 1230 | 1270 |
Machine weight | kg | 2050/2100/2300/2500/2900 | 2150/2200/2400/2600/3000 |
Packing & Delivery
Company Profile

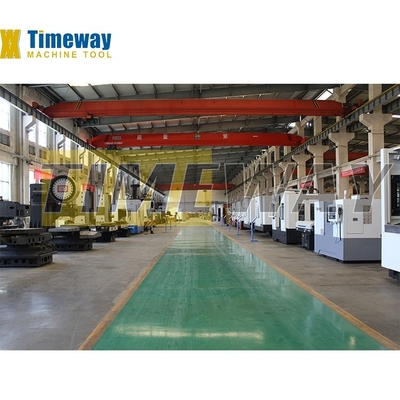

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
