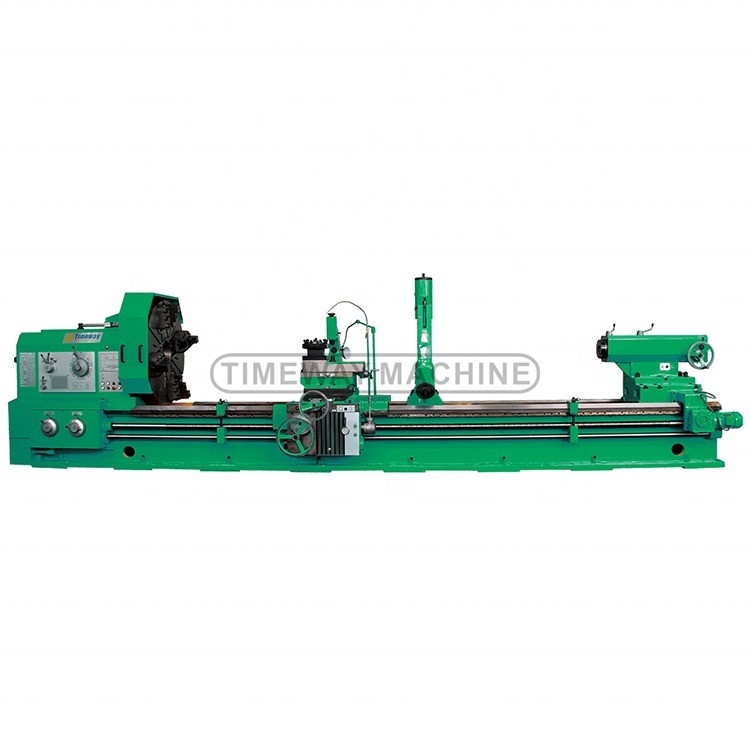

0mm Width of Bed AL-1600C Heavy Duty Metal Horizontal Lathe Machine with Competitive
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | AL-1600C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $71,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 5000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 0 |
| Type: | Horizontal | Spindle Motor Power(kW): | 22kw |
| Voltage: | 380V | Dimension(L*W*H): | 8020*1995*2325 |
| Weight (KG): | 10000 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max.swing Over Bed: | 1600mm |
| Max. Swing Over Cross Bed: | 1210mm | Distance Between Centers: | 3000/4000/5000/6000/8000/10000/12000/mm |
| Max.turning Length: | 2800/3800/4800/5800/7800/9800/11800mm | Bed Width: | 970mm |
| Max.cutting Force: | 45000N | Loading Capacity: | 10000kg |
| Spindle Nose: | A2-15 | Spindle Bore: | 130mm |
| Keyword: | Heavy Duty Horizontal Lathe | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining |
| Showroom Location: | Germany, Viet Nam, Peru, Indonesia, Thailand, Morocco | Core Components: | Engine |
| Max. Turned Length (mm): | 5000 Mm | Year: | 2021 |
| Port: | China Port | ||
Product Description
Recommend Products
CNC Lathe | CNC Milling Machine |
Grinding Machine | Machining Center |
Oil Country Lathe | Back to Home |
Summary
This series horizontal lathe is suitable for processing large and meduim-sized parts of casting ,steels and non-ferrous metals.
Product Description
Heavy Duty Horizontal Lathe
Specification | Unit | AL-1250C | AL-1400C | AL-1600C | AL-1800C | |||
Max.swing over bed | mm | 1250 | 1400 | 1600 | 1800 | |||
Max. swing over cross bed | mm | 865 | 1010 | 1210 | 1410 | |||
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/ | ||||||
Max.turning length | mm | 2800/3800/4800/5800/7800/9800/11800 | ||||||
Bed width | mm | 970 | 970 | 970 | 970 | |||
Max.cutting force | N | 45000 | 45000 | 45000 | 45000 | |||
Loading capacity | kg | 10000 | 10000 | 10000 | 10000 | |||
Spindle nose | - | A2-15 | A2-15 | A2-15 | A2-15 | |||
Spindle bore | mm | 130 | 130 | 130 | 130 | |||
Machine length | mm | 6020/7020/8020/9020/11020/13020/15020 | ||||||
Machine width | mm | 1995 | 1995 | 1995 | 2665 | |||
Machine height | mm | 2175 | 2325 | 2525 | 2680 | |||
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized andcentralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition&Training
This is a picture of clients visiting our company when we hold exhibitions around the world
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
