VL2000E Vertical Turret Lathe Machine Year 2023 Cross Travel of Tool Post -65-1150mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
| Model Number: | VL2000E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $58,640.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1250/1600mm | Range Of Spindle Speed(r.p.m): | 4 - 125 R.p.m, 4 - 125 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | VERTICAL |
| Spindle Motor Power(kW): | 37 | Voltage: | 220V/380V, 220/380 |
| Dimension(L*W*H): | 321*297*420 | Weight (KG): | 17500 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Manual Lathe Machine | Machine Type: | Metal Work Lathe |
| Product Name: | Manual Metal Lathe Machine | Keyword: | Metal Working Machine |
| Automatic Grade: | Normal | Precision: | High Precision |
| Vertical Travel Of Tool Post: | 1000mm | Cross Travel Of Tool Post: | -65~1150mm |
| Condition: | New | Spindle Bore(mm): | 38 |
| Applicable Industries: | Building Material Shops, Manufacturing Plant | Showroom Location: | Italy, Peru, India, Kenya |
| Core Components: | Motor | Max. Turned Length (mm): | 2000 Mm |
| Year: | 2023 | Port: | China Port |
Product Description
Summary
This machine is suitable for mechanical processing of all industries. It can be used for rough and finish processing of inside and outside cylinder, cone surface.
Product Description

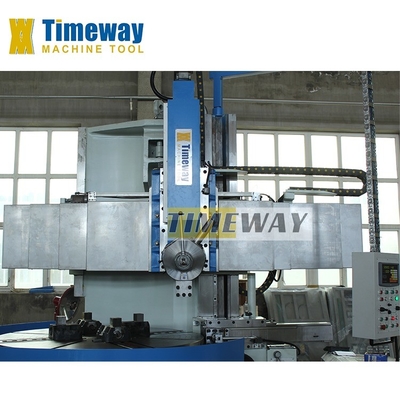

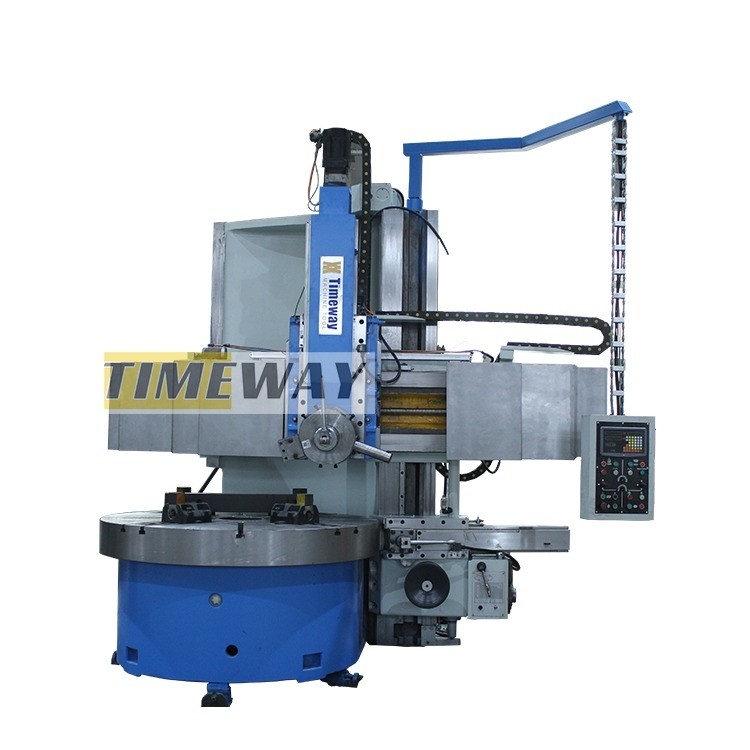

Vertical Lathe VL2000E
Specification
Specification | Unit | VL1250E | VL2000E |
Max. Turning diameter | mm | 1250 | 2000 |
Max. Height of workpiece | mm | 1000/1250/1400 | 1250/1600 |
Max. Weight of workpiece | kg | 5 | 12000 |
Worktable diameter | mm | 1010 | 1800 |
Max. Cutting force of tool-post | KN | 20 | 25 |
Max. Torque of worktable | KN.m | 17.5 | 32 |
Worktable speed | rpm | 6.3-200(16) | 4-125 (16) |
Tool post feed speed | mm/min | 0.8-86(12) | 0.8-86 (12) |
Tool-post rapid feed speed | mm/min | 1800 | 1800 |
Machine weight | kg | 8300/8600/8900 | 17500/17800 |
Machine dimension(L×W×H) | mm | 2360x2870x3870 | 3210×2970×4200 |
Packing & Delivery
Wooden cases(can be fumigated)
