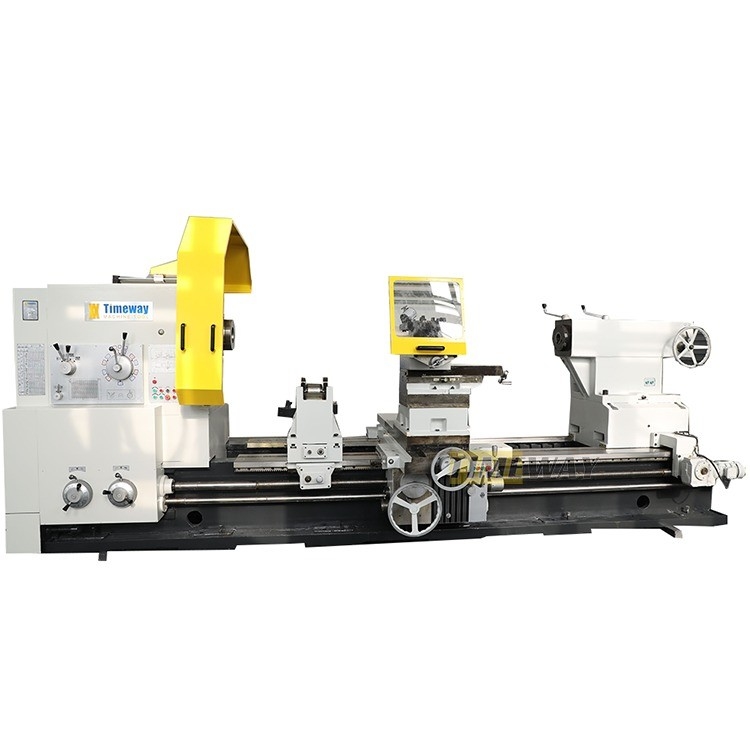

1100mm Bed Width Heavy Duty Manual Lathe Machine for Steel Sturdy Construction
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | AL-1800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-1 sets |
| Packaging Details: | in wooden case (can be fumigated) or plywood case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 4000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 1100 |
| Type: | Horizontal | Spindle Motor Power(kW): | 30 |
| Voltage: | 220V, 380V, 400V, 415V, 440V | Dimension(L*W*H): | 7120x2430x2580 Mm |
| Weight (KG): | 17000 KG | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Swing Diameter Over Bed: | 2000 Mm |
| Max. Swing Diameter Over Cross Slide: | 1650 Mm | Cross Travel: | 900 Mm |
| Carriage Longitudinal Travel: | 4000 Mm | Top Tool-post Travel: | 360 Mm |
| Max. Weight Of The Workpiece: | 16tons (20tons) | Spindle Nose: | A2-15 |
| Spindle Taper: | Metric 140 | Tailstock Quill Taper: | Metric 80 |
| Tailstock Quill Diameter: | 300 Mm | Condition: | New |
| Spindle Bore(mm): | 100 | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Canada, United States, Italy, Germany, Mexico, Russia, Spain, South Africa, Australia | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel |
| Max. Turned Length (mm): | 3800 Mm | Year: | 2020 |
| Port: | China Port | ||
Product Description
Products Description
Heavy Duty Horizontal Lathe AL-2000
Technical Parameter
Specification | Unit | AL-1800 | AL-2000 | |
Max. swing over bed | mm | 1800 | 2000 | |
Max. swing over cross slide | mm | 1450 | 1650 | |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- | ||
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- | ||
Bed width | mm | 1100 | 1100 | |
Loading capacity | tons | 16 | 16 | |
Spindle nose | - | A2-15 | A2-15 | |
Spindle bore | mm | 100 | 100 | |
Spindle taper | - | Metric 140 | Metric 140 | |
Spindle speed range | rpm | Forward: 3.15-315, Reverse: 3.5-291 | ||
Spindle speed step | steps | Forward: 21, Reverse: 12 | ||
X/Z-axis feed kinds | kinds | 56 | 56 | |
Feed range | mm/r | Longitudinal:0.1-12; Cross:0.05-6; Top tool-post: 0.025-3 | ||
Metric threads range (kinds) | mm | 1-120 (44) | 1-120 (44) | |
Inch threads range (kinds) | TPI | 28-1/4 (31) | 28-1/4 (31) | |
Module threads range (kinds) | MP | 0.5-60 (45) | 0.5-60 (45) | |
Diametrical threads range (kinds) | DP | 1/2-56 (38) | 1/2-56 (38) | |
Distance from spindle center to tool base | mm | 53 | 53 | |
Tool post swivel angle | ° | ±90° | ±90° | |
Cross slide travel | mm | 900 | 900 | |
Top slide travel | mm | 360 | 360 | |
Tool section size | mm | 50x50 | 50x50 | |
Tool post feed per gar | mm | 0.05 | 0.05 | |
Tailstock quill diameter | mm | 260 | 260 | |
Tailstock quill travel | mm | 300 | 300 | |
Tailstock quill taper | - | Metric 80 | Metric 80 | |
Main motor power | kw | 30 | 30 | |
Machine length | mm | 6120/7120/8120/9120/11120/13120/15120/- | ||
Machine width | mm | 2330 | 2430 | |
Machine height | mm | 2480 | 2580 | |
Standard accessories: Optional accessories:
· 4-jaw independent chuck · Steady rest (over 3M length) · Follow rest (over 3M length) · Electric moving tailstock · Dead center of tailstock · 4-station tool post · Cooling system · Work lamp · Tools & tool-box · Leveling wedge and bolts Operation manual (English) | · Face plate · 2 or 3-axis digital indicator · Chuck guard · Tool-post guard · Rear splash guard Quick changing tool post |

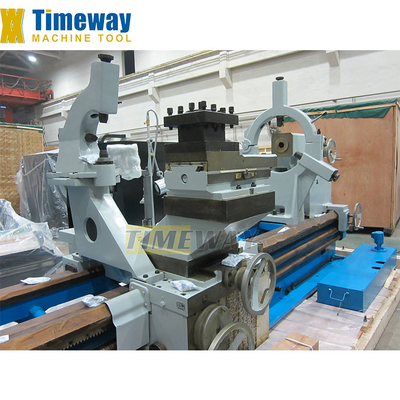

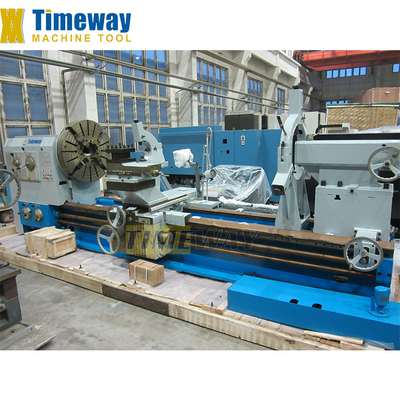

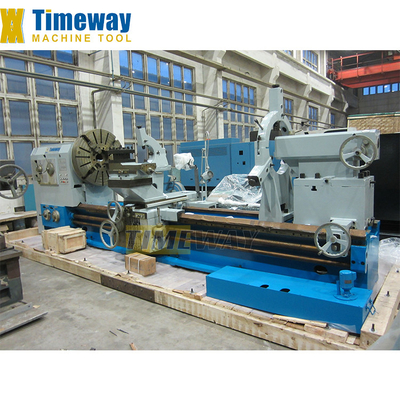

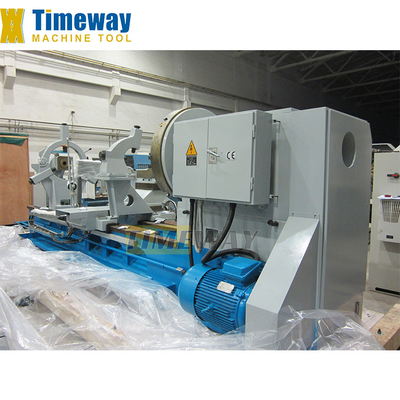

Detail Images
