**These lathes are suitable for turning inner and outer cylindrical surfaces, conical surfaces and other rotating parts. They can process all kinds of commonly used metric, inch, modulus and radial threads, and can cut oil grooves and keyways.
**The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting;When finished, the roundness error is not more than 0.01mm, the cylindrical degree error is not more than 0.03mm in the measuring length of 300mm.
 |

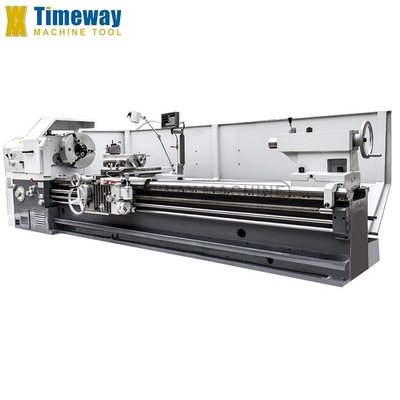

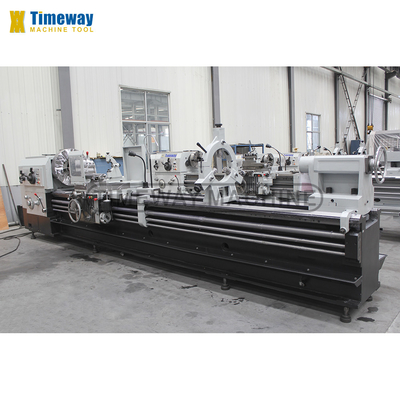

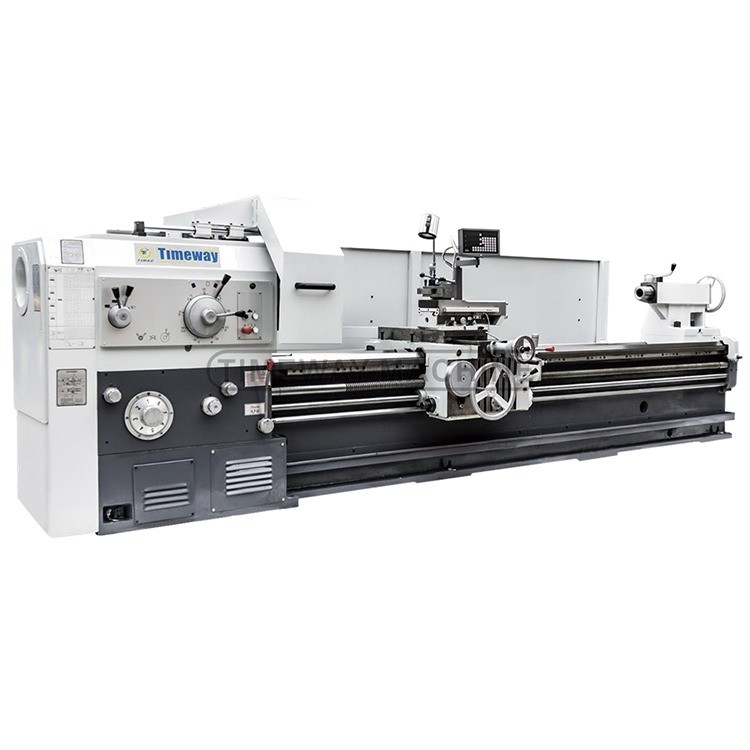

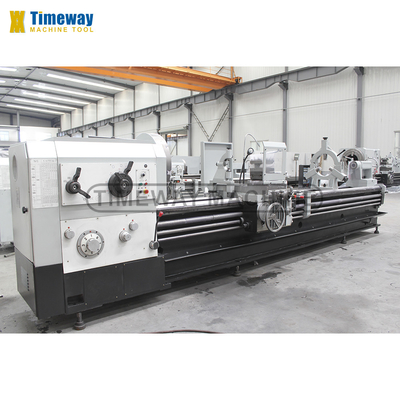

Max.swing over cross slide 480mm High Productivity Heavy Duty Horizontal Lathe by TIMEWAY
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC/Timeway |
| Model Number: | AL-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $44,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 4000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Type: | Horizontal | Spindle Motor Power(kW): | 11 |
| Dimension(L*W*H): | 6220*1730*1450 | Weight (KG): | 8000 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Heavy Duty Horizontal Lathe Machine | Machine Type: | Horizontal Metal Turning Lathe Machine |
| CNC Or Not: | Normal Lathe Machine | Distance Between Centers: | 4000mm |
| Max. Swing Over Bed: | 800mm | Max.swing Over Cross Slide: | 480mm |
| Bed Width: | 600mm | Color: | Customers' Request |
| Spindle Speed: | 750mm | Model: | AL-800 |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Home Use, Retail, Construction Works | Showroom Location: | Canada, Turkey, Italy, France, Germany, Peru, Pakistan, Nigeria |
| Core Components: | Bearing, Pump, Gear, Motor, Engine | Max. Turned Length (mm): | 3850 Mm |
| Port: | China Port | ||
Product Description
Product Description
Heavy Duty Horizontal Lathe
Features:
Specification
Specifications | Unit | AL-800 | AL-1000 |
Swing over bed | mm | 800 | 1000 |
Swing over carriage | mm | 480 | 680 |
Max. length of workpiece | mm | 1500-6000 | 1500-6000 |
Max. turning length | mm | 1350-5850 | 1350-5850 |
Span of guideway | mm | 600 | 600 |
Max. weight of workpiece | kg | 3000 | 3000 |
Spindle nose | - | C11 (C15 optional) | C11 (C15 optional) |
Spindle bore | mm | 100 (140 optional) | 100 (140 optional) |
Taper hole of spindle | - | Metric 1:20 | Metric 1:20 |
Range of spindle speeds | rpm | CCW: 6-750; CW: 10-775 | CCW: 6-750; CW: 10-775 |
No. of spindle speeds | steps | 18; 6 | 18; 6 |
Longitudinal feed speed | mm/r | 0.1-24.32 (64) | 0.1-24.32 (64) |
Cross feed speed | mm/r | 0.05-12.16 (64) | 0.05-12.16 (64) |
No. and range of metric thread | mm | 1-240 (50) | 1-240 (50) |
No. and range of inch thread | TPI | 14-1 (26) | 14-1 (26) |
No. and range of module thread | MP | 0.5-120 (53) | 0.5-120 (53) |
No. and range of dia. thread | DP | 28-1 (24) | 28-1 (24) |
Rapid traverse speed | mm/min | 4000 | 4000 |
Distance of spindle and tool plane | mm | 33 | 33 |
Tool post swing range | ° | ±90 | ±90 |
Max. travel of cross slide | mm | 500 | 500 |
Max. travel of top slide | mm | 200 | 200 |
Section of tool shank | mm | 32x32 | 32x32 |
Dia. of tailstock quill | mm | 100 | 100 |
Travel of tailstock quill | mm | 250 | 250 |
Taper hole of tailstock quill | MT6 | MT6 | |
Main motor power | kw | 11 | 11 |
Length | mm | 3670~8260 | 3670~8260 |
Width | mm | 1730 | 1730 |
Height | mm | 1450 | 1450 |
Accessories
Standard accessories:
3-jaw chuck
Steady rest (over 2M length)
Follow rest
Manual moving tailstock
Dead center
4-station tool post
Cooling system
Work lamp
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)
Steady rest (over 2M length)
Follow rest
Manual moving tailstock
Dead center
4-station tool post
Cooling system
Work lamp
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)
Optional accessories:
4-jaw independent chuck,
Face plate
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Quick changing tool post
Grinding attachment
Face plate
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Quick changing tool post
Grinding attachment
