Industrial Manufacturing BL-500C High Precision Gap-bed Lathe with Optional Voltage 2021
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | BL-500C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $11,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2000 | Range Of Spindle Speed(r.p.m): | 36 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Voltage: | Optional |
| Dimension(L*W*H): | 3632*975*1270 | Weight (KG): | 2500 KG |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | Hot Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Swing Over Bed: | 500mm | Max. Swing Over Cross Slide: | 300mm |
| Max. Swing Over Gap: | 710mm | Gap Length: | 240mm |
| Distance Between Centers: | 2000mm | Max. Turning Length: | 1950mm |
| Spindle Bore: | 105mm | Spindle Taper: | 113, 1:20 |
| Spindle Nose: | ISO 702/II No.8 | Spindle Speed Range (steps): | 36-1600 (12)rpm |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works |
| Showroom Location: | Canada, Italy, Chile, Bangladesh | Core Components: | Bearing, Pump, Gear |
| Spindle Bore(mm): | 52,80,105 | Max. Turned Length (mm): | 1950 Mm |
| Year: | 2021 | ||
Product Description
Product Description

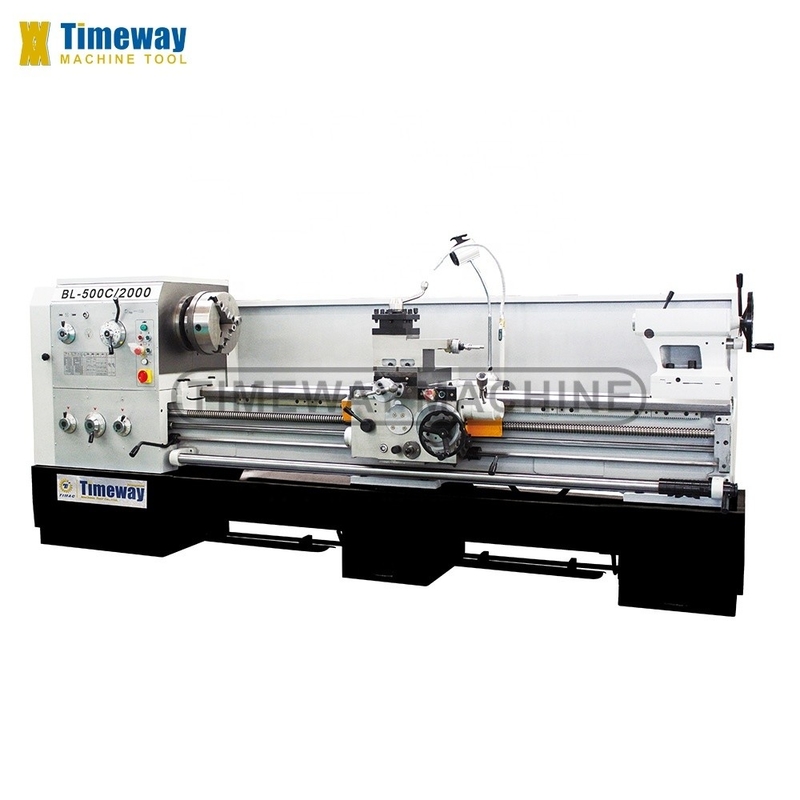

Gap-bed Lathe BL-500C
Features:
1.The series lathe is suitable for all kinds of turning work, such as internal and external turning, taper turning, and other rotary parts turning, end face turning, also turning all kinds of common thread: Inch, Metric, Module and D.P; perform drilling, reaming, tapping and groove broaching.
2. High torsional horizontal lathe bed, high quality cast iron manufacturing,guideway through the medium frequency quenching and precision grinding.
3. Saddle guideway paste PTFE guide soft belt, wear-resisting, vibration absorbing, good accuracy stable.
4. Spindle adopts three support structure, good rigidity, high precision, strong cutting.
Wide range of speed, the rationality of implementation speed.
5. The machine can cut directly thread metric and inch.
6. Gap-bed lathe can realize cutting all kinds of flat stocks and irregular shapes.
7. Equipped with complete the special parts for user to choose.
Spindle through hole diameter Φ105.
1.The series lathe is suitable for all kinds of turning work, such as internal and external turning, taper turning, and other rotary parts turning, end face turning, also turning all kinds of common thread: Inch, Metric, Module and D.P; perform drilling, reaming, tapping and groove broaching.
2. High torsional horizontal lathe bed, high quality cast iron manufacturing,guideway through the medium frequency quenching and precision grinding.
3. Saddle guideway paste PTFE guide soft belt, wear-resisting, vibration absorbing, good accuracy stable.
4. Spindle adopts three support structure, good rigidity, high precision, strong cutting.
Wide range of speed, the rationality of implementation speed.
5. The machine can cut directly thread metric and inch.
6. Gap-bed lathe can realize cutting all kinds of flat stocks and irregular shapes.
7. Equipped with complete the special parts for user to choose.
Spindle through hole diameter Φ105.
Specification
Specification | Unit | BL-500C |
Max. swing over bed | mm | 500 |
Max. swing over cross slide | mm | 300 |
Max. swing over gap | mm | 710 |
Gap length | mm | 240 |
Distance between centers | mm | 2000 |
Max. turning length | mm | 1950 |
Spindle bore | mm | 105 |
Spindle taper | - | 113, 1:20 |
Spindle nose | - | ISO 702/II No.8 |
Spindle speed range (steps) | rpm | 36-1600 (12) |
Accessories
Standard accessories:
3-jaw chuck 4-jaw chuck Face plate Steady rest Follow rest Taper turning attachment Changing gears Dead center Reduction sleeve Oil gun Coolant system Working lamp General tools Operation manual
Optional accessories:
Chasing dial indicator Liver center Digital readout system (DRO) Quick change tool-post Taper turning attachment

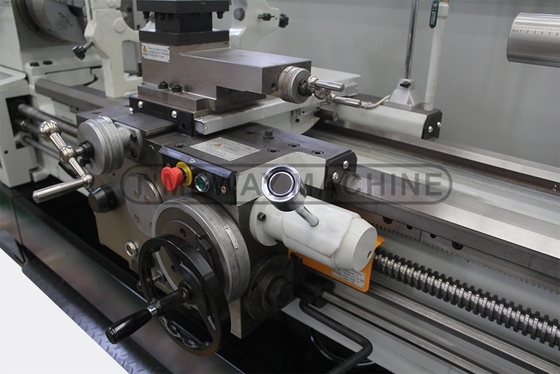

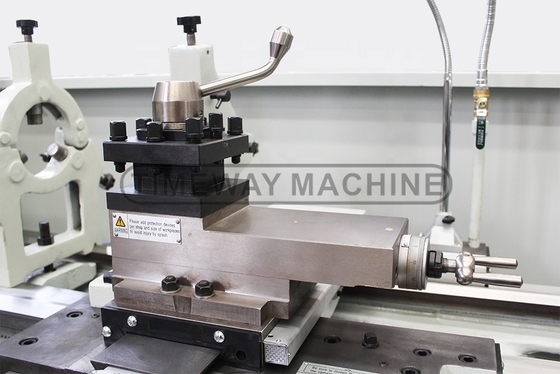

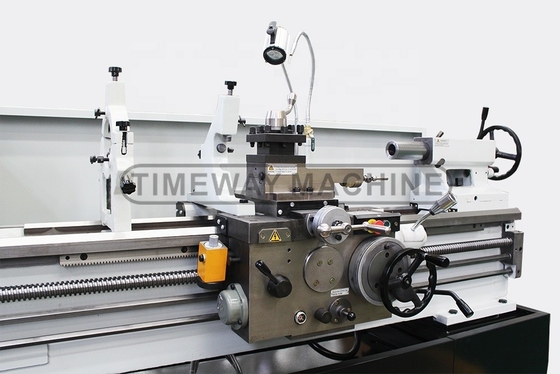

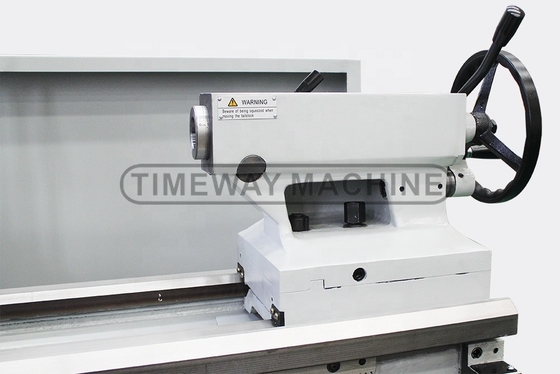

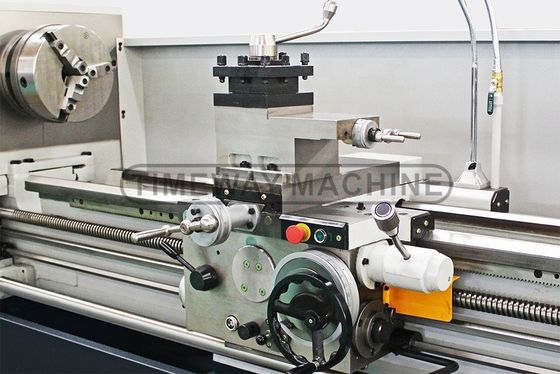

Detail Images
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
