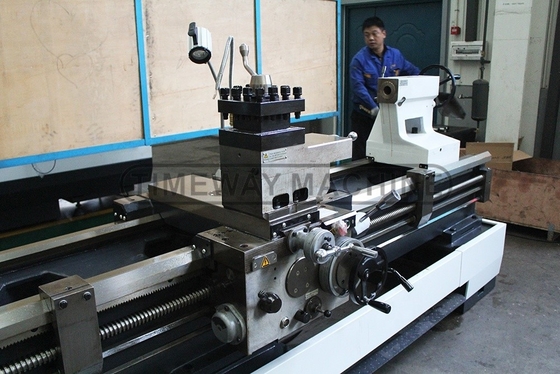

Steady rest and follow rest are standard equipped for the flat bed lathe.
 |
240mm Gap Length Manual Lathe Universal Gap-bed Lathe
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | BL-800B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 8 - 1400 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Voltage: | 380V |
| Dimension(L*W*H): | 4365*1340*1430 | Weight (KG): | 3700 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Swing Over Bed: | 800mm | Max. Swing Over Cross Slide: | 560mm |
| Max. Swing Over Gap: | 1000mm | Gap Length: | 240mm |
| Distance Between Centers: | 3000mm | Max. Turning Length: | 2850mm |
| Spindle Bore: | 82mm | Spindle Taper: | 90, 1:20 |
| Spindle Nose: | ISO 702/II No.8 | Top Slide Travel: | 145mm |
| Condition: | New | Spindle Bore(mm): | 82 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Home Use, Retail | Showroom Location: | Egypt, Canada, Algeria |
| Core Components: | Motor, Gearbox, PLC | Max. Turned Length (mm): | 2850 Mm |
| Year: | 2020 | ||
Product Description
Product Description

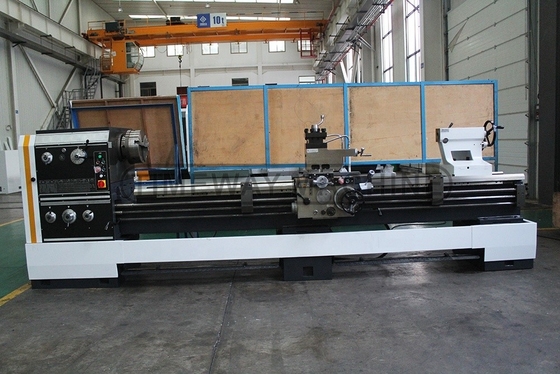

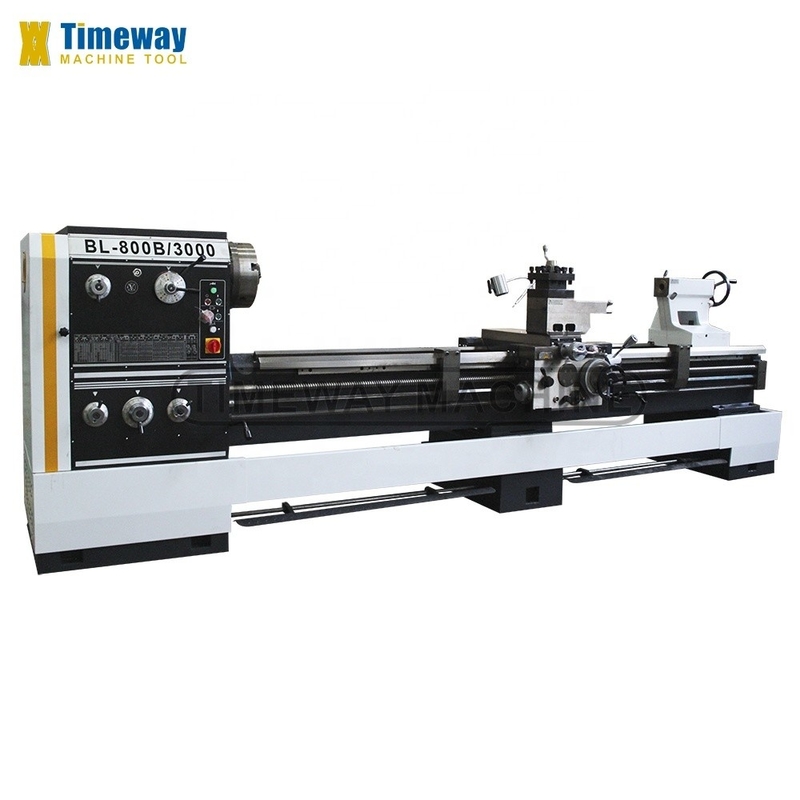

Gap-bed Lathe BL-800B
The series gap bed lathe is suitable for all kinds of turning work, such as internal and external turning, taper turning, and other rotary parts turning, end face turning, also turning all kinds of common thread,inch,Metric, Module and D.p perform drilling, reaming, tapping and groove broaching.
Specification
Specification | Unit | BL-800B |
Max. swing over bed | mm | 800 |
Max. swing over cross slide | mm | 560 |
Max. swing over gap | mm | 1000 |
Gap length | mm | 240 |
Distance between centers | mm | 3000 |
Max. turning length | mm | 2850 |
Spindle bore | mm | 82 |
Spindle taper | - | 90, 1:20 |
Spindle nose | - | ISO 702/II No.8 |
Top slide travel | mm | 145 |
Accessories
Standard accessories:
3-jaw chuck
4-jaw chuck
Face plate
Dead center
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Foundation bolts
Tool-box & tools
Operation manual
4-jaw chuck
Face plate
Dead center
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Foundation bolts
Tool-box & tools
Operation manual
Optional accessories:
Living center
Taper turning attachment
Drill chuck
Quick change tool holder
2/3 axis digital readout
Chuck cover
Leadscrew cover
Tool post cover
Driving plate

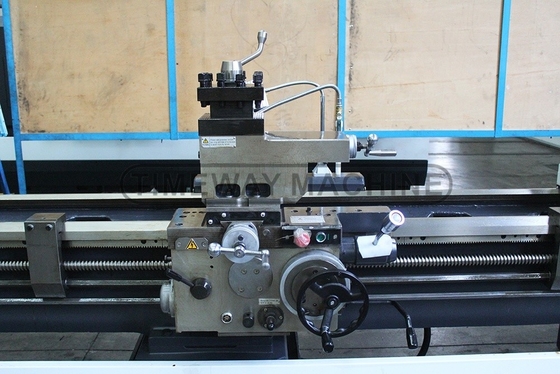

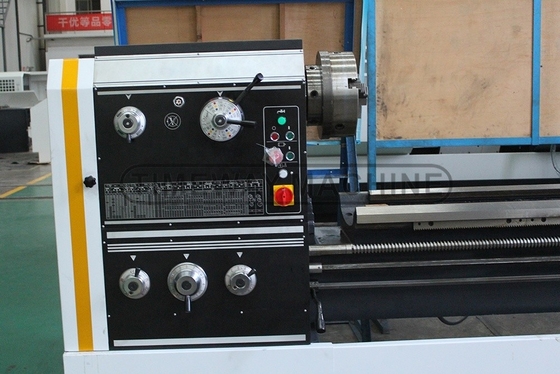

Machine Details
Standard 3-jaw lathe chuck
Manual tailstock
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized andcentralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
