High Precision 2000mm Universal Gap Bed Lathe CL-460 With 5.5kW Spindle Motor Power
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | CL-460 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,900.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2000 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Type: | Horizontal | Spindle Motor Power(kW): | 5.5 |
| Voltage: | 220V/380V/400V/415V | Dimension(L*W*H): | 325*108*137 |
| Weight (KG): | 1965 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Swing Over Bed: | 460mm |
| Swing Over Cross Slide: | 270mm | Swing In Gap: | 690mm |
| Distance Between Centers: | 2000mm | Valid Length Of Gap: | 165mm |
| Width Of Bed: | 300mm | Spindle Nose: | D1-6 |
| Spindle Bore: | 58mm | Taper Of Spindle Bore: | No.6 Morse |
| Max.travel Of Top Slide: | 128mm | Condition: | New |
| Spindle Bore(mm): | 58 | Showroom Location: | United States, Germany, Philippines, Saudi Arabia, Pakistan, Russia, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh, Japan |
| Core Components: | Bearing, Gear, Motor, Gearbox, Engine | Max. Turned Length (mm): | 1950 Mm |
| Year: | 2021 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other |
Product Description
Product Description

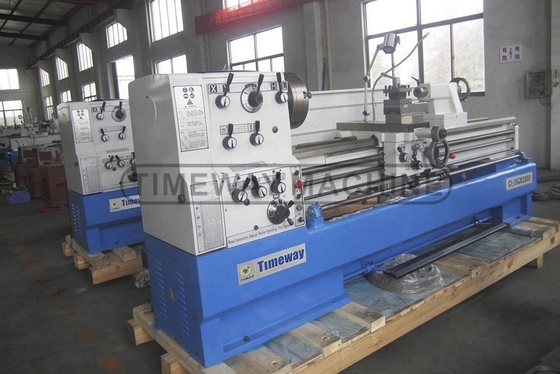

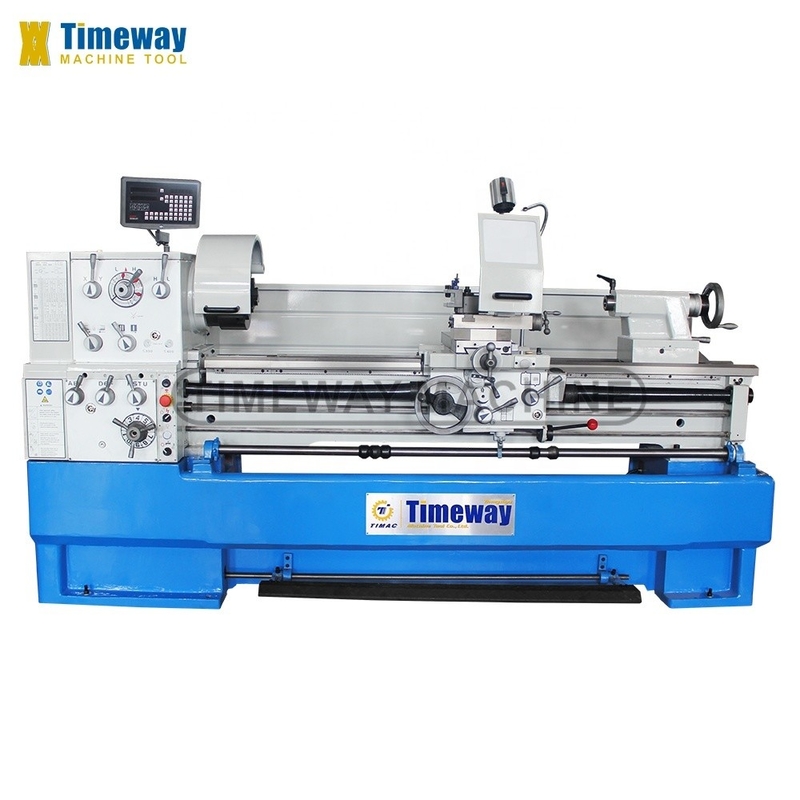

Gap-bed Lathe CL-460
Specification
Specification | Unit | CL-460 |
Swing over bed | mm | 460 |
Swing over cross slide | mm | 270 |
Swing in gap | mm | 690 |
Distance between centers | mm | 2000 |
Valid length of gap | mm | 165 |
Width of bed | mm | 300 |
Spindle nose | - | D1-6 |
Spindle bore | mm | 58 |
Taper of spindle bore | - | No.6 Morse |
Max.travel of top slide | mm | 128 |
Accessories
Standard accessories：

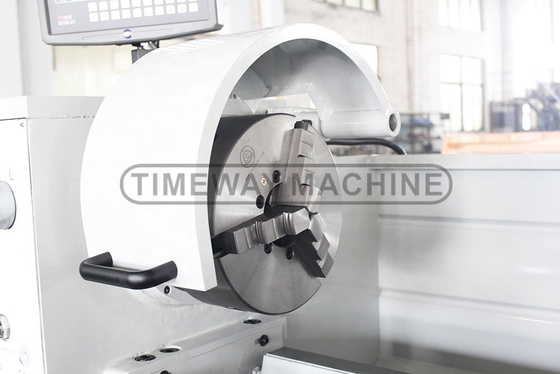

* 3 jaw chuck
* 4 jaw chuck
* Dead center
* Face plate
* Steady rest
* Follow rest
* Reduction sleeve
* Oil gun
* Coolant system
* Working light
* Chasing dial indicator
* 4 jaw chuck
* Dead center
* Face plate
* Steady rest
* Follow rest
* Reduction sleeve
* Oil gun
* Coolant system
* Working light
* Chasing dial indicator
Optional accessories：
* Quick change tool post
* 2/3 axis DRO
* Living center
* Taper turning attachment
* Chuck guard
* Leadscrew guard
* Tool post guard
* 2/3 axis DRO
* Living center
* Taper turning attachment
* Chuck guard
* Leadscrew guard
* Tool post guard
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized andcentralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
