The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
 |

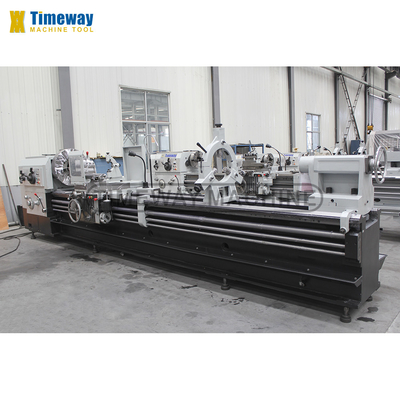

6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway/TIMAC |
| Model Number: | AL-1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $23,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 6000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Type: | Horizontal | Spindle Motor Power(kW): | 11 |
| Dimension(L*W*H): | 8260*1730*1450 | Weight (KG): | 8000 KG |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Marketing Type: | Hot Product 2023 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Heavy Duty Horizontal Lathe | Machine Type: | Horizontal Metal Turning Lathe Machine |
| CNC Or Not: | Normal Lathe Machine | After-sales Service Provided: | 1 Year (no Human-made Reason) |
| Distance Between Centers: | 6000mm | Color: | Customers' Request |
| Model: | AL-1000 | Spindle Speed: | 6-750rpm |
| Spindle Bore: | 100mm | Loading Capacity: | 3000kg |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction Works , Energy & Mining | Showroom Location: | Canada, Indonesia, India, Russia, Spain, South Africa, Kazakhstan |
| Core Components: | Bearing, Pump, Gear, Motor | Max. Turned Length (mm): | 5850 Mm |
| Port: | China Port | ||
Product Description
Product Description
Heavy Duty Horizontal Lathe
Features:
Specification
Specifications | Unit | AL-1000 |
Swing over bed | mm | 1000 |
Swing over carriage | mm | 680 |
Max. length of workpiece | mm | 1500-6000 |
Max. turning length | mm | 1350-5850 |
Span of guideway | mm | 600 |
Max. weight of workpiece | kg | 3000 |
Spindle nose | - | C11 (C15 optional) |
Spindle bore | mm | 100 (140 optional) |
Taper hole of spindle | - | Metric 1:20 |
Range of spindle speeds | rpm | CCW: 6-750; CW: 10-775 |
No. of spindle speeds | steps | 18; 6 |
Longitudinal feed speed | mm/r | 0.1-24.32 (64) |
Cross feed speed | mm/r | 0.05-12.16 (64) |
No. and range of metric thread | mm | 1-240 (50) |
No. and range of inch thread | TPI | 14-1 (26) |
No. and range of module thread | MP | 0.5-120 (53) |
No. and range of dia. thread | DP | 28-1 (24) |
Rapid traverse speed | mm/min | 4000 |
Distance of spindle and tool plane | mm | 33 |
Tool post swing range | ° | ±90 |
Max. travel of cross slide | mm | 500 |
Max. travel of top slide | mm | 200 |
Section of tool shank | mm | 32x32 |
Dia. of tailstock quill | mm | 100 |
Travel of tailstock quill | mm | 250 |
Taper hole of tailstock quill | - | MT6 |
Main motor power | kw | 11 |
Length | mm | 3670~8260 |
Width | mm | 1730 |
Height | mm | 1450 |
Accessories
Standard accessories:
3-jaw chuck
Steady rest (over 2M length)
Follow rest
Manual moving tailstock
Dead center
4-station tool post
Cooling system
Work lamp
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)
Steady rest (over 2M length)
Follow rest
Manual moving tailstock
Dead center
4-station tool post
Cooling system
Work lamp
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)
Optional accessories:
4-jaw independent chuck
Face plate
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Quick changing tool post
Grinding attachment
Face plate
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Quick changing tool post
Grinding attachment
