1.This series horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals.It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal and external threads, such as metric, inch, modulus and diametrical.
2. The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting; When finished, the roundness error is not more than 0.01mm, the cylinder degree error is not more than 0.03mm in the measuring length of 300mm.
 |

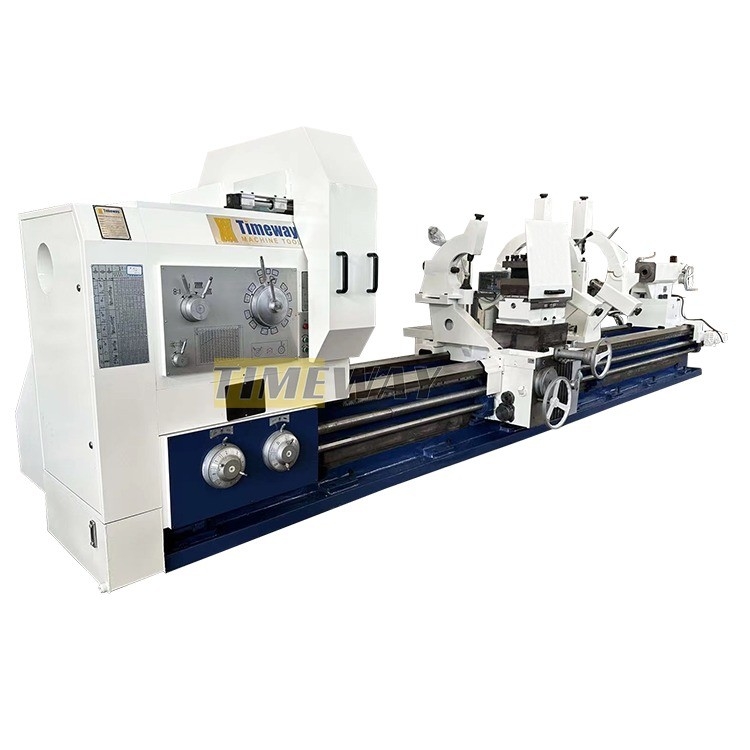

High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | AL-1800C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 5000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 | Dimension(L*W*H): | 8020*2665*2680 |
| Weight (KG): | 10000 KG | Warranty: | 1 Year |
| Key Selling Points: | High Safety Level | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Heavy Duty Horizontal Lathe |
| Machine Type: | Horizontal Metal Turning Lathe Machine | After-sales Service Provided: | 1 Year (no Human-made Reason) |
| Distance Between Centers: | 5000mm | Color: | Customers' Request |
| Model: | AL-1800C | Max. Swing Over Bed: | 1800mm |
| Spindle Speed: | 3.15-315rpm | Bed Width: | 970mm |
| Spindle Bore: | 130mm | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Canada, Turkey, Peru, India, Russia, South Korea, Chile, Romania, Nigeria, Australia | Core Components: | Bearing, Pump, Motor, Gearbox, Pressure Vessel, Engine |
| Max. Turned Length (mm): | 4800 Mm | ||
Product Description
Product Description

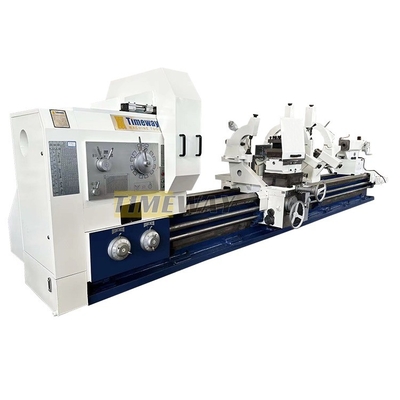

Heavy Duty Horizontal Lathe
Features：
Specification
Specification | Unit | AL-1800C | AL-1400C | AL-1600C | AL-1800C | |||||||
Capacity | Swing over bed | mm | 1800 | 1400 | 1600 | 1800 | ||||||
Swing over cross slide | m'm | 1410 | 1010 | 1210 | 1280 | |||||||
Max.length of workpiece | mm | 3000/4000/5000/6000/8000/10000/12000/14000 | ||||||||||
Max.length of turning | mm | 2800/3800/4800/5800/7800/9800/11800/13800 | ||||||||||
Width of bed | mm | 970 | ||||||||||
Max.torque of spindle | mm | 12590 | ||||||||||
Max.cutting force | mm | 45000 | ||||||||||
Max.force of logitudinal | mm | 18000 | ||||||||||
Max.weight of workpiece | mm | 10000 | ||||||||||
Spindle | Dia.of spindle bore | mm | 130 | |||||||||
Taper of spindle | - | metric140 | ||||||||||
No.of forward turning | - | 21 kinds | ||||||||||
No.of reverse turning | - | 12 kinds | ||||||||||
Spindle speed | Forward | rpm | 3.15-315 | |||||||||
Reverse | rpm | 3.5-291 | ||||||||||
Feed motion | No.of feeds per revolution | - | (Longitudinal/tranverse)56/56 | |||||||||
Feed per revolution | Longutudinal | mm/r | 0.1-12(0.004"-0.473"） | |||||||||
Tranverse | mm/r | 0.05-6(0.002"-0.236") | ||||||||||
Upper tool-post | mm/r | 0.025-3(0.001"-0.118") | ||||||||||
No.and range of metric thread | mm | 44kinds:1-120 | ||||||||||
No.and range of inch thread | TPI | 31kinds:28-1/4 | ||||||||||
No.and range of module thread | MP | 45kinds:0.5-60 | ||||||||||
No.and range of diametrical thread | DP | 38kinds:1/2-56 | ||||||||||
Tool post | Size of tool shank | mm | 45×45 | |||||||||
swing range of tool post | - | ±90º | ||||||||||
Max.travel of cross slide | mm | 650 | ||||||||||
Max.travel of top slide | mm | 300 | ||||||||||
Rapid of tool post | mm/min | Longitudianl:3740 Tranverse:1870 Top slide:935 | ||||||||||
Tailstock | Dia.of tailstock quill | mm | 220 | |||||||||
Travel of tailstock quill | mm | 300 | ||||||||||
Taper hole of tailstock quill | - | Morse No.6# | ||||||||||
Others | Main motor power | kw | 22 | |||||||||
Power of tool post rapid move motor | kw | 1.5 | ||||||||||
Power of cooling pump | kw | 0.15 | ||||||||||
Overall dimension | Length | mm | 6020/7020/8020/9020/11020/13020/15020/17020 | |||||||||
Width | mm | 1995 | ||||||||||
Height | m'm | 2680 | 2325 | 2525 | 2725 | |||||||
Accessories
Standard accessories:
4-jaw heavy duty independent chuck
Steady rest
Follow rest
Dead center
4-station tool post
Cooling system
Work lamp
Electric moving tailstock
Electric moving tailstock
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)
Optional accessories:
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Roller support
Grinding attachment
