82mm Spindle Bore Gap Bed Lathe Machine for Metal High Precision and Easy to Operate
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway/timac |
| Model Number: | BL-660B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 8 - 1400 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Dimension(L*W*H): | 4365*1340*1430 |
| Weight (KG): | 3700 KG | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Gap Bed Lathe Machine |
| Machine Type: | Horizontal Normal Lathe | Model: | BL-660B |
| Color: | Customers' Request | Max. Swing Over Bed: | 660mm |
| Distance Between Centers: | 2000/3000mm | Spindle Bore: | 82mm |
| Spindle Speed: | 8-1400rpm | Bed Width: | 240mm |
| Machine Weight: | 3300/3700kg | Condition: | New |
| Spindle Bore(mm): | 82 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Restaurant, Home Use, Retail, Printing Shops, Construction Works |
| Showroom Location: | Egypt, Russia, Kenya, South Korea, Tajikistan | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Engine |
| Max. Turned Length (mm): | 2850 Mm | ||
Product Description
Product Description

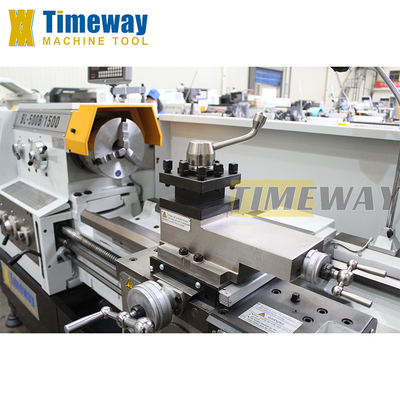

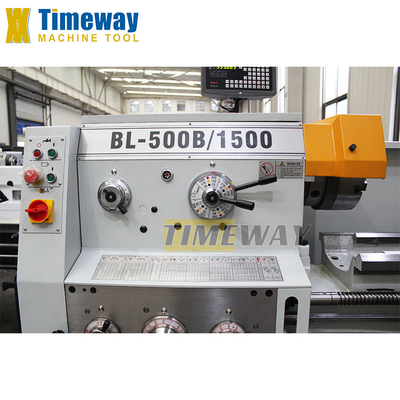

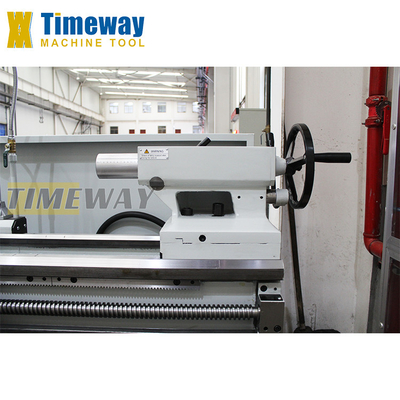

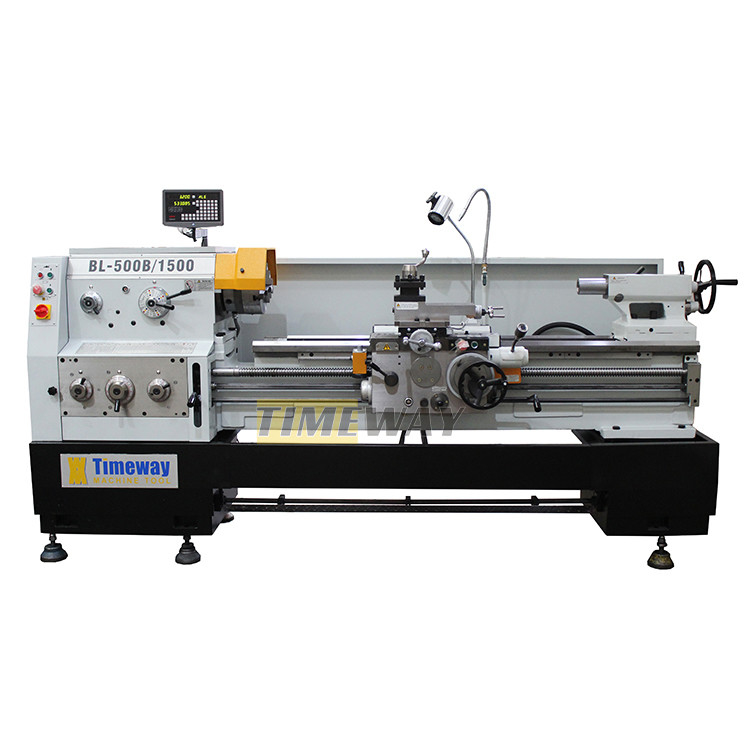

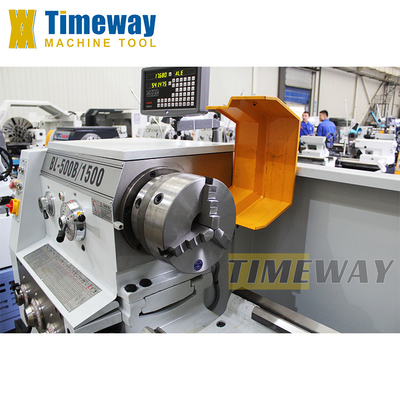

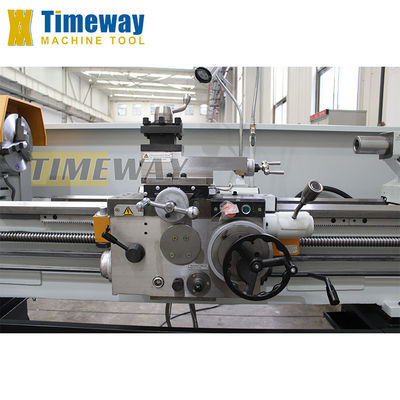

Precision Gap Bed Lathe
Specification
Specifications | Unit | BL-800C |
Max. swing dia. over bed | mm | 800 |
Max. swing dia. over cross slide | mm | 560 |
Max. swing dia. over gap | mm | 1000 |
Effective length in gap | mm | 240 |
Max. workpiece length | mm | 2000/3000 |
Max. turning length | mm | 1850/2850 |
Spindle bore diameter | mm | Φ105 |
Taper of spindle bore | Φ113 1:20 | |
Type of spindle nose | ISO 702/II No.8 | |
Spindle speeds | rpm | 30-1400 (12) |
Max. travel of upper toolpost | mm | 145 |
Max. travel of lower toolpost | mm | 320 |
Tool section | mm | 25x25 |
X-axis rapid feed | m/min | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed | m/min | 50HZ: 4.5; 60HZ: 5.4 |
X-axis feeds | mm/r | 0.027-1.07 (65) |
Z-axis feeds | mm/r | 0.63-2.52 (65) |
Metric threads | mm | 1-14 (22) |
Inch threads | TPI | 28-2 (25) |
Moudle threads | πmm | 0.5-7 (18) |
Diametric pitch threads | DP | 56-4 (24) |
Diameter of quill | mm | Φ90 |
Max. travel of quill | mm | 150 |
Taper of quill(Morse) | - | MT5 |
Main motor power | kw | 7.5 |
Rapid traverse motor power | kw | 0.3 |
Coolant pump motor power | kw | 0.12 |
Length | mm | 3365/4365 |
Width | mm | 1340 |
Height | mm | 1490 |
Machine weight | kg | 3000/3200 |
Accessories
Standard accessories:
3-jaw chuck
4-jaw chuck
Taper turning attachment
Face plate
Dead centers
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Foundation bolts
Tool-box & tools
Operation manual
4-jaw chuck
Taper turning attachment
Face plate
Dead centers
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Foundation bolts
Tool-box & tools
Operation manual
Optional accessories:
Living center
Taper turning attachment
Drill chuck
Quick change tool holder
2/3 axis digital readout
Chuck cover
Leadscrew cover
Tool post cover
Driving plate
Drill chuck
Quick change tool holder
2/3 axis digital readout
Chuck cover
Leadscrew cover
Tool post cover
Driving plate
