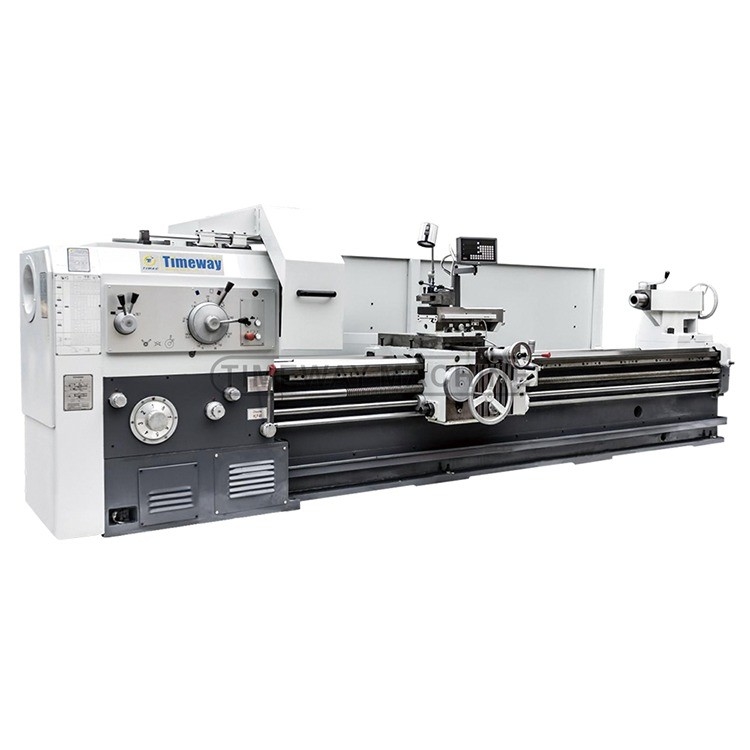

Horizontal Heavy Duty Lathe Machine with High Precision 3000 mm Max. Workpiece Length
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Certification: | CE ISO9001 |
| Model Number: | AL-2500H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,560.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 Mm | Range Of Spindle Speed(r.p.m): | 0.8 - 160 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 390 |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Voltage: | As Customer Requirement | Dimension(L*W*H): | 3800x1150x1880 |
| Weight (KG): | 3500 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Manual Lathe Machine |
| Machine Type: | Horizontal Metal Turning Lathe Machine | Product Name: | Manual Metal Lathe Machine |
| Keyword: | Metalworking Machine | Function: | Machining Metal |
| Precision: | High Precision | Product Type: | Horizontal Mini Lathe |
| Processing: | Metal Workpiece | CNC Or Not: | Nomal |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | None | Core Components: | Bearing, Pump, Gear, Gearbox, Engine |
| Spindle Bore(mm): | 105 Mm | Max. Turned Length (mm): | 3000 Mm |
| Year: | 2023 | Port: | China Port |
Product Description
Product Description
Features:
1.Stable performance: It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
2.Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
3.High rigidity overall bed with 600 mm bed span, which ensures the machine has strong stability and high precision, and bed loading capacity to 3000 kg.
1.Stable performance: It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
2.Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
3.High rigidity overall bed with 600 mm bed span, which ensures the machine has strong stability and high precision, and bed loading capacity to 3000 kg.
Specification
Specification | Unit | AL-1600H | AL-2000H | AL-2500H |
Max. swing over bed | mm | 1600 | 2000 | 2500 |
Max. swing over cross slide | mm | 1250 | 1600 | 2200 |
Distance between centers | mm | 3000~20000 | 3000~20000 | 3000~20000 |
Max. torque of chuck | N.m | 80000 | 80000 | 80000 |
Bed width | mm | 1600 (3 slideway) | 1600 (3 slideway) | 1600 (3 slideway) |
Loading capacity | tons | 32 | 32 | 32 |
Spindle taper | - | 75° | 75° | 75° |
Chuck diameter | mm | 1600 | 1600/1800 | 1600/1800/2000 |
Spindle speed range | rpm | 0.8-160 (stepless) | 0.8-160 (stepless) | 0.8-160 (stepless) |
Range of longitudinal feed | mm | 0.125-48 (18) | 0.125-48 (18) | 0.125-48 (18) |
Range of cross feed | mm | 0.063-24 (18) | 0.063-24 (18) | 0.063-24 (18) |
Metric thread | mm | 2-40 | 2-40 | 2-40 |
Inch thread | TPI | 1-14 | 1-14 | 1-14 |
Module thread | MP | 1.5-20 | 1.5-20 | 1.5-20 |
Max. travel of cross slide | mm | 725 | 725 | 800 |
Max. travel of top slide | mm | 600 | 600 | 600 |
Section of tool shank | mm | 70x70 | 70x70 | 70x70 |
Tailstock quill daimeter | mm | 300 | 300 | 300 |
Tailstock quill travel | mm | 300 | 300 | 300 |
Tailstock quill taper | - | 100, 1:7 | 100, 1:7 | 100, 1:7 |
Tailstock rapid feed speed | mm/min | 3000 | 3000 | 3000 |
Tailstock quill rapid feed speed | mm/min | 664 | 664 | 664 |
Main motor power | kw | 75 | 75 | 75 |
Machine length | mm | 13577~21577 | 13577~21577 | 13577~21577 |
Machine width | mm | 2479 | 2479 | 2515 |
Machine height | mm | 2280 | 2580 | 2655 |
