Customrized Heavy Duty Horizontal Lathe Machine with Large Loading Capacity of 3500 KG
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AL-1600H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $26,480.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 0.8 - 160 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 380mm |
| Type: | Horizontal | Voltage: | 110V/220V |
| Dimension(L*W*H): | 13577*2479*2280 | Weight (KG): | 3500 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 25000 | Spindle Taper: | BT50, BT40 |
| Cutting Torque: | 80000 N.m | Rapid Feed Speed(mm/min): | 0 - 3000 Mm/min |
| Feed Speed(mm/min): | 0 - 2000 Mm/min | Tool Post Stations: | 8, 4 |
| Name: | Manual Lathe Machine | Machine Type: | Horizontal Metal Turning Lathe Machine |
| Product Name: | Manual Metal Lathe Machine | Keyword: | Universal Metal Lathe |
| Function: | Machining Metal | Precision: | High Precision |
| Color: | Customrized | CNC Or Not: | Nomal |
| Processing: | Metal Workpiece | Distance Between Centers: | 1000mm/1500mm/2000mm/3000mm |
Product Description
Product Description
Heavy Duty Horizontal Lathe
Features:
1.Stable performance: It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
2.Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
3.High rigidity overall bed with 600 mm bed span, which ensures the machine has strong stability and high precision, and bed loading capacity to 3000 kg.
1.Stable performance: It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
2.Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
3.High rigidity overall bed with 600 mm bed span, which ensures the machine has strong stability and high precision, and bed loading capacity to 3000 kg.
Specification
Specification | Unit | AL-1600H | AL-2000H | AL-2500H |
Max. swing over bed | mm | 1600 | 2000 | 2500 |
Max. swing over cross slide | mm | 1250 | 1600 | 2200 |
Distance between centers | mm | 3000~20000 | 3000~20000 | 3000~20000 |
Max. torque of chuck | N.m | 80000 | 80000 | 80000 |
Bed width | mm | 1600 (3 slideway) | 1600 (3 slideway) | 1600 (3 slideway) |
Loading capacity | tons | 32 | 32 | 32 |
Spindle taper | - | 75° | 75° | 75° |
Chuck diameter | mm | 1600 | 1600/1800 | 1600/1800/2000 |
Spindle speed range | rpm | 0.8-160 (stepless) | 0.8-160 (stepless) | 0.8-160 (stepless) |
Range of longitudinal feed | mm | 0.125-48 (18) | 0.125-48 (18) | 0.125-48 (18) |
Range of cross feed | mm | 0.063-24 (18) | 0.063-24 (18) | 0.063-24 (18) |
Metric thread | mm | 2-40 | 2-40 | 2-40 |
Inch thread | TPI | 1-14 | 1-14 | 1-14 |
Module thread | MP | 1.5-20 | 1.5-20 | 1.5-20 |
Max. travel of cross slide | mm | 725 | 725 | 800 |
Max. travel of top slide | mm | 600 | 600 | 600 |
Section of tool shank | mm | 70x70 | 70x70 | 70x70 |
Tailstock quill daimeter | mm | 300 | 300 | 300 |
Tailstock quill travel | mm | 300 | 300 | 300 |
Tailstock quill taper | - | 100, 1:7 | 100, 1:7 | 100, 1:7 |
Tailstock rapid feed speed | mm/min | 3000 | 3000 | 3000 |
Tailstock quill rapid feed speed | mm/min | 664 | 664 | 664 |
Main motor power | kw | 75 | 75 | 75 |
Machine length | mm | 13577~21577 | 13577~21577 | 13577~21577 |
Machine width | mm | 2479 | 2479 | 2515 |
Machine height | mm | 2280 | 2580 | 2655 |
Detailed Images
Turning external surface
After the machine meets all geometric accuracy, we will test the bar on the horizontal lathe, and check the actual processing
accuracy (Roundness and cylindricity).

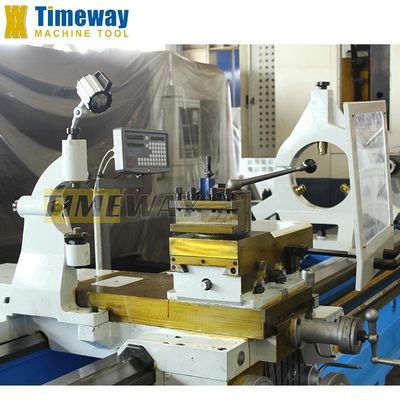

Tool post:
Manual 4-staions tool post comes standard, have strong clamping force and high rigidity.
The guard for the tool-post is optional, meet CE-standard.
The follow rest is suitable for turning thin-length bar, reduce effectively runout of the rotating bar
The guard for the tool-post is optional, meet CE-standard.
The follow rest is suitable for turning thin-length bar, reduce effectively runout of the rotating bar
Turning end surface
After all lathes are making all geometric accuracy test, we also machining the disc parts, and check the verticality of the cross
slide.
slide.
