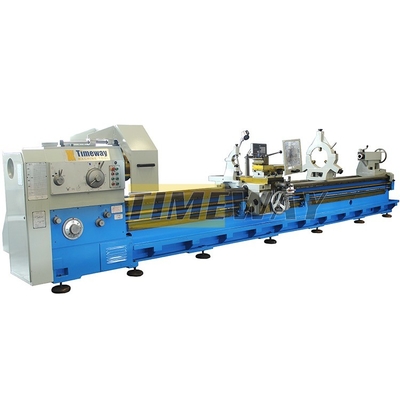

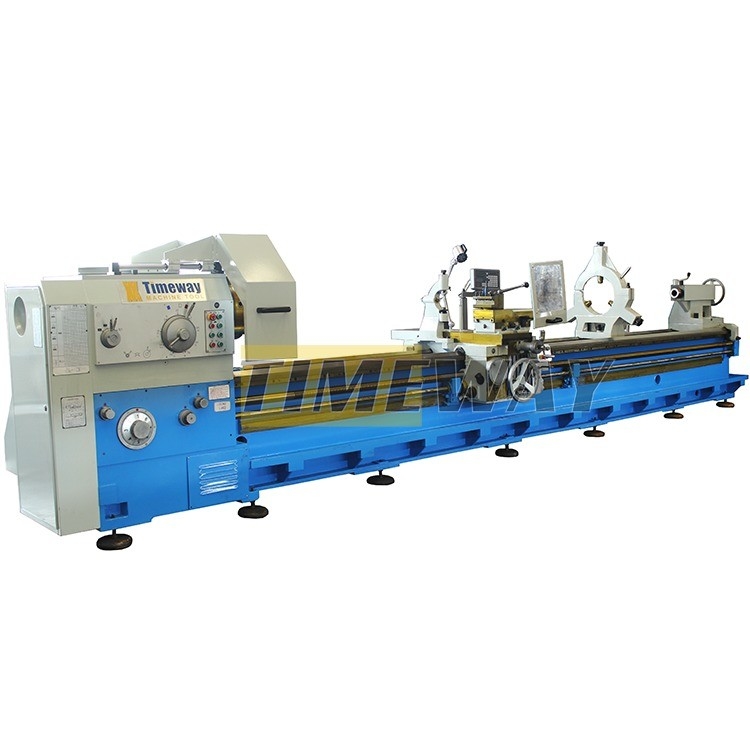

AL-630B Heavy Duty Horizontal Lathe Machine for Metal Workpiece Processing in 2023
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AL-630B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,850.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 750mm | Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 250 |
| Type: | Horizontal | Spindle Motor Power(kW): | 11 |
| Voltage: | 220/380/400/415V | Dimension(L*W*H): | 2598*1393*1537 |
| Weight (KG): | 2210 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Manual Lathe Machine |
| Machine Type: | Horizontal Metal Turning Lathe Machine | Product Name: | Machine Lathe |
| Keyword: | Universal Metal Lathe | Precision: | High Precision |
| Function: | Machining Metal | Processing: | Metal Workpiece |
| Color: | Customrized | CNC Or Not: | Nomal |
| Model: | AL-630B | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | None |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel, Engine | Spindle Bore(mm): | 52 M'm |
| Max. Turned Length (mm): | 600 Mm | Year: | 2023 |
| Port: | China Port | ||
Product Description
Product Description
Conventional Heavy Duty Horizontal Lathe
1. The side wall of bed is constructed with double-rib plates, and the shape of internal ribs is of box type and bevel ribs combination.
2. On apron, there is a device operated by a single lever, used for rapid traverse of the carriage.
3. Spindle’s braking and rotating direction change is controllled by hydraulic system, or by hand operation according to your choice.
4. The saddle guideway is glued by “TSF” soft belt wear resisting materials.
5. The horizontal gap bed lathe is equipped with automatic feeding mechanism.
6. The top slid can be used independently for turning short cone, or in combination with longitudinal feeding turing long taper surface.
2. On apron, there is a device operated by a single lever, used for rapid traverse of the carriage.
3. Spindle’s braking and rotating direction change is controllled by hydraulic system, or by hand operation according to your choice.
4. The saddle guideway is glued by “TSF” soft belt wear resisting materials.
5. The horizontal gap bed lathe is equipped with automatic feeding mechanism.
6. The top slid can be used independently for turning short cone, or in combination with longitudinal feeding turing long taper surface.
Specification
Item | Unit | AL-630B | AL-800B | AL-940B | |||
Capacities | Swing over bed | mm | 630 | 800 | 940 | ||
Swing over carriage | mm | 350 | 520 | 660 | |||
Max. length of workpiece | mm | 750, 1000, 1500, 2000, 3000, 4000, 5000, 6000, 7000, 9000, 10000, - | |||||
Max. turning length | mm | 600, 850, 1350, 1850, 2850, 3850, 4850, 5850, 6850, 8850, 9850, - | |||||
Span of guideway | mm | 550 | 550 | 550 | |||
Spindle | Spindle nose | C11 | |||||
Spindle hole | mm | 110 | |||||
Taper hole of spindle | 1:20/120 | ||||||
Range of spindle speeds | r/min | 7.5~1000 | 6~800 | 6~800 | |||
Number of spindle speeds | 18kinds | ||||||
Feed motion | Longitudinal and cross | r/min | 64; 0.1~24.32 | ||||
Cross-to-longitudinal feed rate | 1/2 | ||||||
Screw pitch of leadscrew | mm | 12 | |||||
Number and range of metric thread | mm | 50; 1~240mm | |||||
Number and range of inch thread | T.P.I | 26; 14~1 | |||||
Number and range of module thread | mm | 53; 0.5~120mm | |||||
Number and range of diametrical pitch thread | T.P.I | 24; 28~1 | |||||
Rapid traverse speed of carriage | mm/min | 4000 | |||||
Max. travel of cross slide | mm | 440 | 540 | 570 | |||
Max. travel of top slide | mm | 200 | |||||
Section of tool shank | mm | 32 | |||||
Tailstock | Diameter of tailstock quill | mm | 100 | ||||
Travel of tailstock quill | mm | 250 | |||||
Taper hole of tailstock quill | Morse 5 | ||||||
Other | Main motor power | kw | 11 | ||||
Machine mass | kg | 3200, 3400, 3700, 4200, 4700, 5800, 6800, 7800, 8800, 10800, 11800, - | 3400, 3600, 3900, 4400, 4900, 6000, 7000, 8000, 9000, 11000, 12000, - | 3900, 4100, 4400, 4900, 5400, 6500, 7500, 8500, 9500, 11500, 12500, - | |||
Machine overall dimension | Length | mm | 2958, 3275, 3725, 4225, 5225, 6275, 7355, 8355, 9275, 11275, 12275,- | ||||
Width | mm | 1393 | 1437 | 1430 | |||
Height | mm | 1537 | 1622 | 1690 | |||

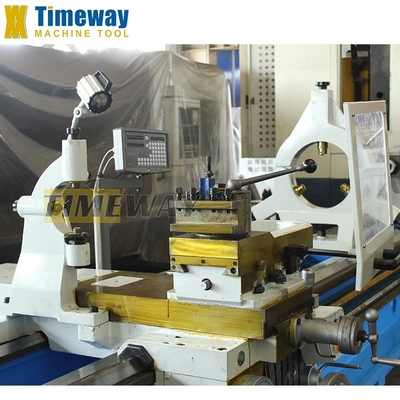

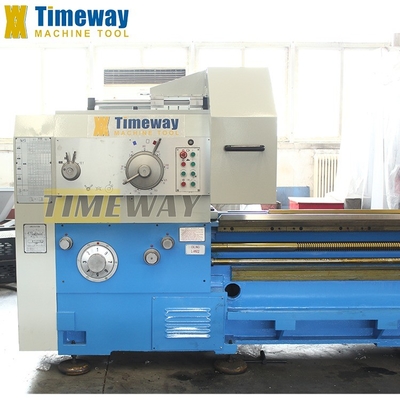

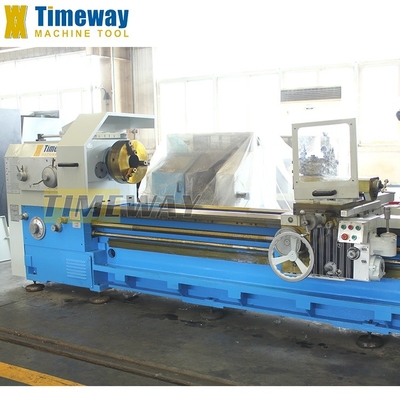

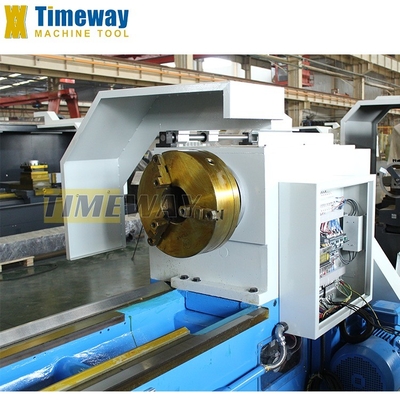

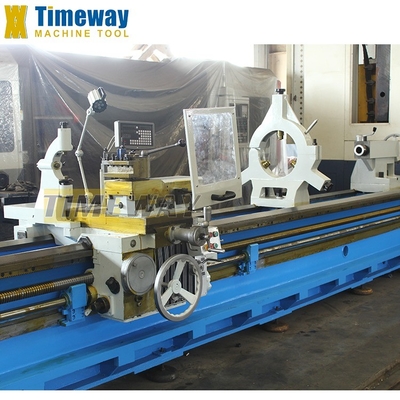

Detail Images
Company Profile
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
