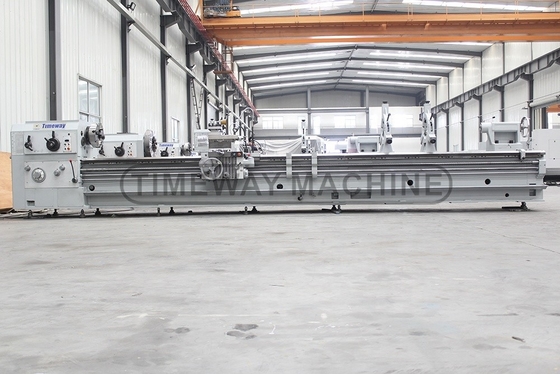

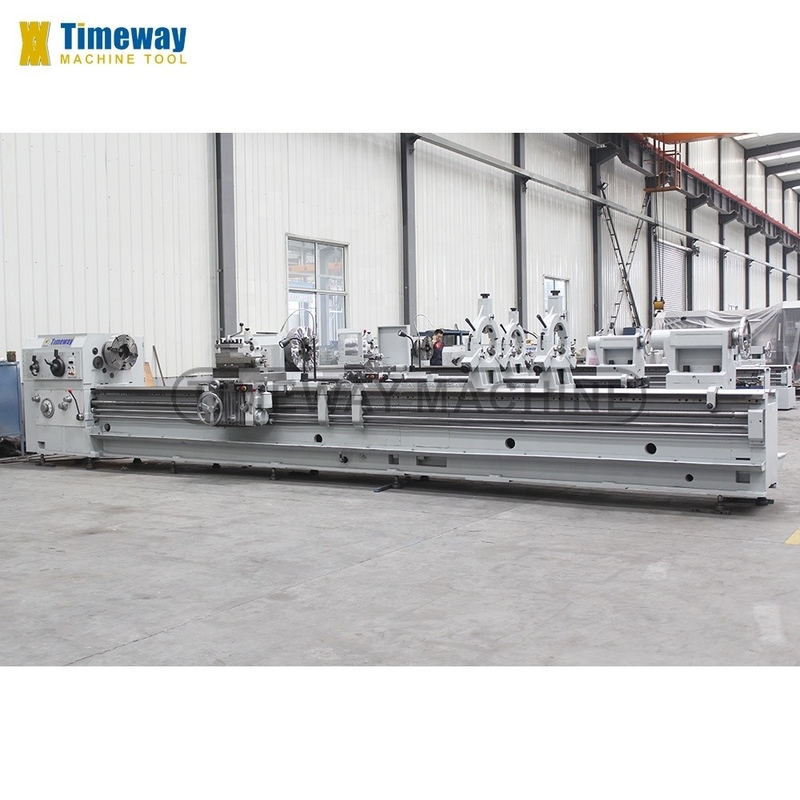

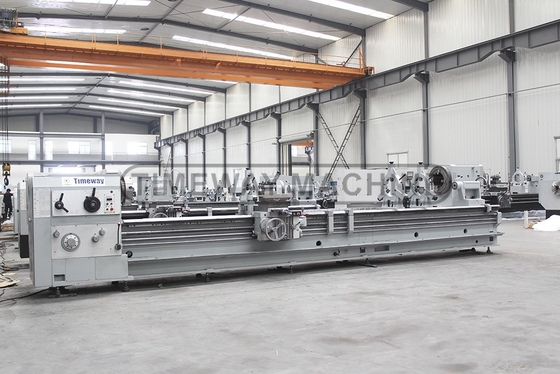

Timeway AL-1000 Heavy Duty Horizontal Lathe High Precision and 8000 KG Weight
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac |
| Model Number: | AL-1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $23,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 6000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Type: | Horizontal | Spindle Motor Power(kW): | 11 |
| Dimension(L*W*H): | 8260*1730*1450 | Weight (KG): | 8000 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Swing Over Bed: | 1000mm | Swing Over Carriage: | 680mm |
| Max. Length Of Workpiece: | 1500-6000mm | Max. Turning Length: | 1350-5850mm |
| Span Of Guideway: | 600mm | Max. Weight Of Workpiece: | 3000kg |
| Spindle Nose: | C11 (C15 Optional) | Spindle Bore: | 100 Mm(140 Optional) |
| Taper Hole Of Spindle: | Metric 1:20 | Range Of Spindle Speeds: | CCW: 6-750; CW: 10-775rpm |
| Condition: | New | Spindle Bore(mm): | 100 |
| Showroom Location: | United States, Germany, Philippines, Saudi Arabia, Pakistan, Russia, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh, Japan | Core Components: | Bearing, Gear, Motor, Gearbox, Engine |
| Max. Turned Length (mm): | 5850 Mm | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other |
| Port: | China Port | ||
Product Description
Product Description

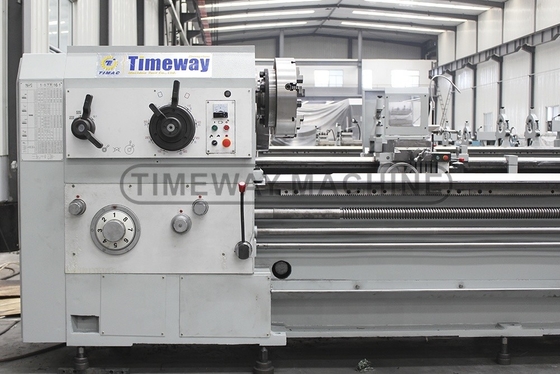

Heavy Duty Horizontal Lathe
Features：
The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
Specification
Specifications | Unit | AL-1000 |
Swing over bed | mm | 1000 |
Swing over carriage | mm | 680 |
Max. length of workpiece | mm | 1500-6000 |
Max. turning length | mm | 1350-5850 |
Span of guideway | mm | 600 |
Max. weight of workpiece | kg | 3000 |
Spindle nose | - | C11 (C15 optional) |
Spindle bore | mm | 100 (140 optional) |
Taper hole of spindle | - | Metric 1:20 |
Range of spindle speeds | rpm | CCW: 6-750; CW: 10-775 |
Accessories
Standard accessories：
3-jaw chuck

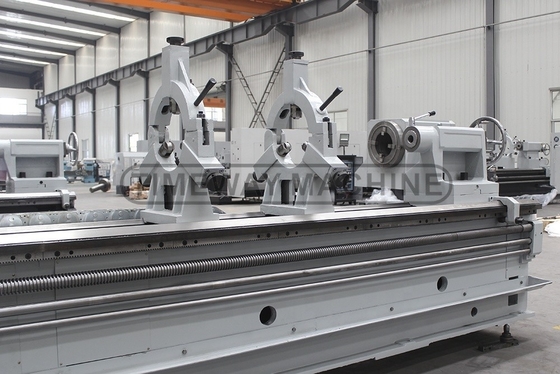

Steady rest (over 2M length)
Follow rest

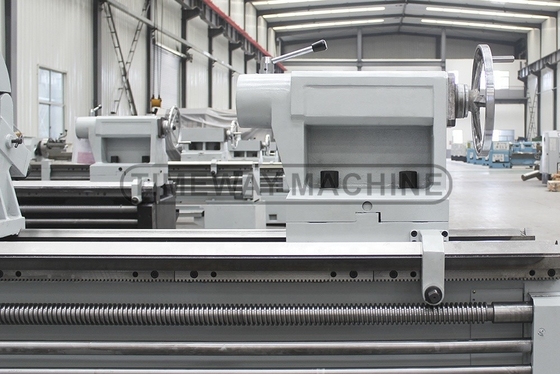

Manual moving tailstock
Dead center
4-station tool post
Cooling system
Work lamp
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)
Steady rest (over 2M length)
Follow rest
Manual moving tailstock
Dead center
4-station tool post
Cooling system
Work lamp
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)
Optional accessories：
4-jaw independent chuck
Face plate
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Quick changing tool post
Grinding attachment
Face plate
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Quick changing tool post
Grinding attachment
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized andcentralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
