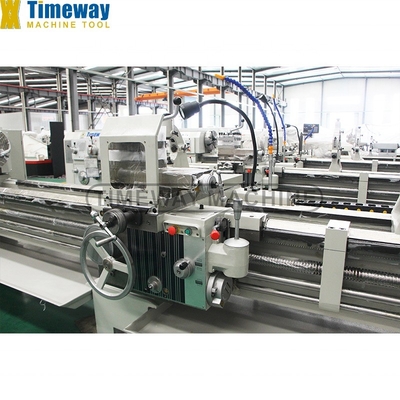

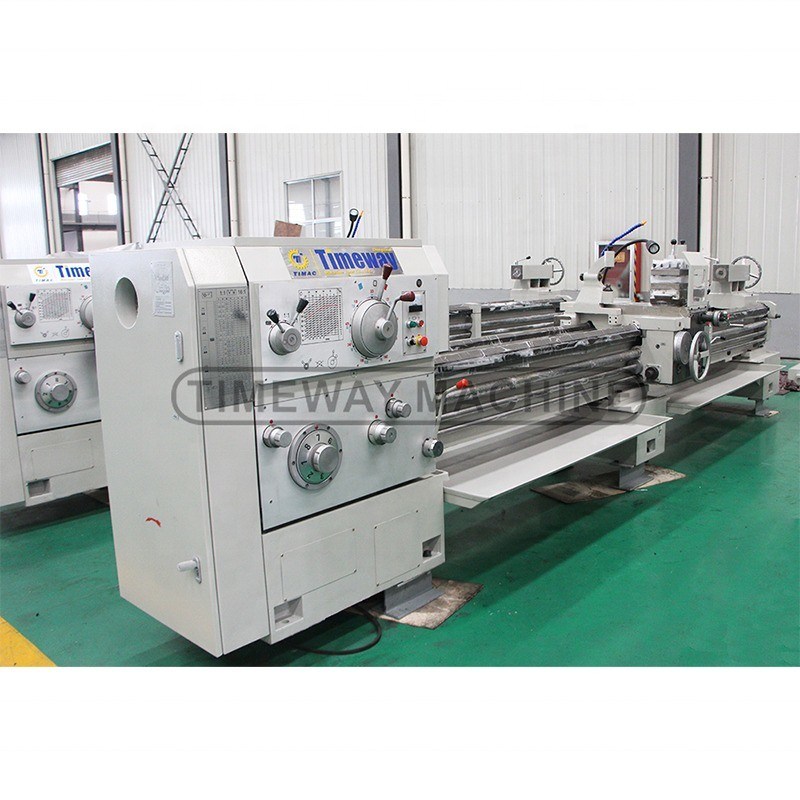

AL-630B Universal Metal Lathe Machine for Precision Light Duty Marketing Key Training
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-630B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |

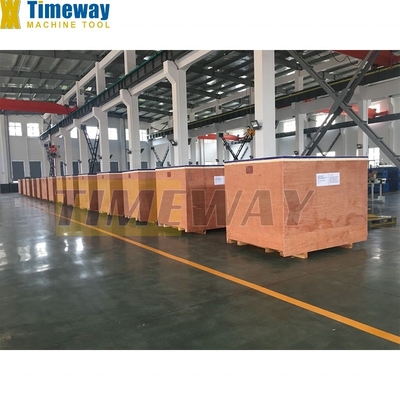

| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 630 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Type: | Horizontal | Weight (KG): | 2000 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Bench Lathe | Machine Type: | Horizontal Metal Turning Lathe Machine |
| After-sales Service Provided: | Service Machinery Overseas | Product Name: | Manual Metal Lathe Machine |
| Keyword: | Universal Metal Lathe | Function: | Machining Metal |
| Automatic Grade: | Normal | Product Type: | Bench Lathe Machine Tool |
| Precision: | High Precision | CNC Or Not: | Nomal |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | Egypt, Italy, Peru, Russia, South Korea, Romania, Nigeria, None |
| Core Components: | Engine | Max. Turned Length (mm): | 600 Mm |
| Port: | China Port | ||
Product Description
Products Description
AL-630B
Specification | Unit | AL-630B |
Max. swing over bed | mm | 630 |
Max. swing over cross slide | mm | 350 |
Distance between centers | mm | 750/1000/1500/2000/3000/4000/5000/6000/8000/10000 |
Max. turning length | mm | 600/850/1350/1850/2850/3850/4850/5850/7850/9850 |
Max. swing over gap (optional) | mm | 830 |
Gap length (optional) | mm | 300 |
Bed width | mm | 550 |
Loading capacity | kg | 2000 |
Spindle nose | - | C11 |
Spindle bore | mm | 100 |
Spindle taper | - | Metric 120 |
Spindle speed range | rpm | 7.5-1000 |
Spindle speed step | steps | 18 |
Longitudinal feed range | mm/r | 0.1-24.32 (64) |
Cross feed range | mm/r | 0.05-12.16 (64) |
Leadscrew pitch | mm | 12 |
Metric threads range (kinds) | mm | 1-240 (50) |
Inch threads range (kinds) | TPI | 14-1 (26) |
Module threads range (kinds) | mm | 0.5-120 (53) |
Diametrical threads range (kinds) | DP | 28-1 (24) |
Rapid feed speed | mm/min | 4000 |
Cross slide travel | mm | 440 |
Top slide travel | mm | 200 |
Tool section size | mm | 32x32 |
Tailstock quill diameter | mm | 100 |
Tailstock quill travel | mm | 250 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 11 |
Machine length | mm | 2958/3275/3725/4225/5225/6275/7355/8355/10275/12275 |
Machine width | mm | 1393 |
Machine height | mm | 1537 |
Positive Comments From Customers
Company Introduction

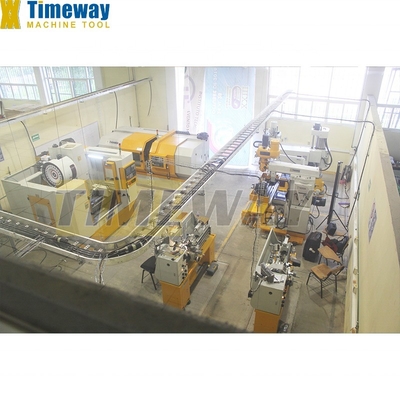

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
