AL 940B Metal Max Key Power Horizontal Manual Lathes for Global Technical Sales Support
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-940B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $23,000.00/sets 1-2 sets |

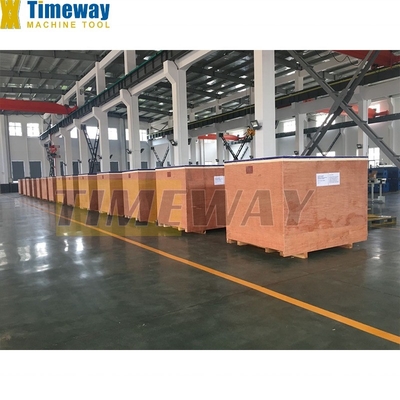

| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 940 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Type: | Horizontal | Weight (KG): | 6000 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Online Support | Name: | Bench Lathe |
| Product Name: | Manual Metal Lathe Machine | Machine Type: | Horizontal Metal Turning Lathe Machine |
| Keyword: | Universal Metal Lathe | Function: | Machining Metal |
| Automatic Grade: | Normal | Product Type: | Bench Lathe Machine Tool |
| Precision: | High Precision | CNC Or Not: | Nomal |
| Condition: | New | Applicable Industries: | Home Use, Retail, Construction Works |
| Showroom Location: | Egypt, Italy, Peru, Russia, South Korea, Romania, Nigeria | Core Components: | Bearing, Pump, Gear, PLC |
| Spindle Bore(mm): | 100 M'm | Max. Turned Length (mm): | 850 Mm |
| Port: | China Port | ||
Product Description
Products Description

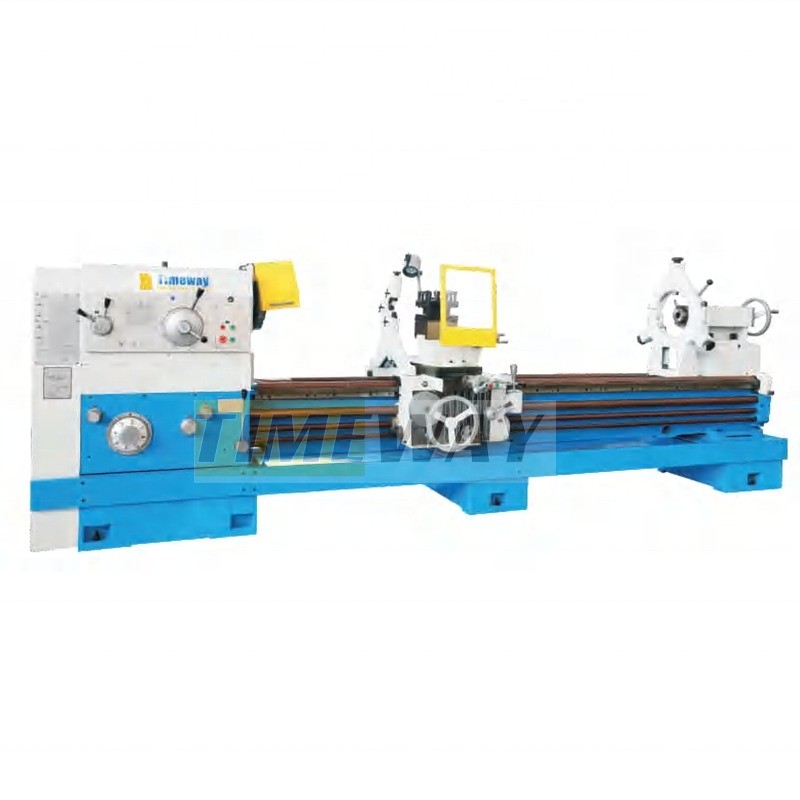

AL - 940B
Heavy Duty Horizontal Lathe:
Specification | Unit | AL-940B | ||
Max. swing over bed | mm | 940 | ||
Max. swing over cross slide | mm | 660 | ||
750/1000/1500/2000/3000/4000/5000/6000/8000/10000 | ||||
600/850/1350/1850/2850/3850/4850/5850/7850/9850 | ||||
Max. swing over gap (optional) | mm | 1140 | ||
Gap length (optional) | mm | 300 | ||
Bed width | mm | 550 | ||
Loading capacity | kg | 2000 | ||
Spindle nose | - | C11 | ||
Spindle bore | mm | 100 | ||
Spindle taper | - | Metric 120 | ||
Spindle speed range | rpm | 6-800 | ||
Spindle speed step | steps | 18 | ||
Longitudinal feed range | mm/r | 0.1-24.32 (64) | ||
Cross feed range | mm/r | 0.05-12.16 (64) | ||
Leadscrew pitch | mm | 12 | ||
Metric threads range (kinds) | mm | 1-240 (50) | ||
Inch threads range (kinds) | TPI | 14-1 (26) | ||
Module threads range (kinds) | mm | 0.5-120 (53) | ||
Diametrical threads range (kinds) | DP | 28-1 (24) | ||
Rapid feed speed | mm/min | 4000 | ||
Cross slide travel | mm | 570 | ||
Top slide travel | mm | 200 | ||
Tool section size | mm | 32x32 | ||
Tailstock quill diameter | mm | 100 | ||
Tailstock quill travel | mm | 250 | ||
Tailstock quill taper | - | MT5 | ||
Main motor power | kw | 11 | ||
Machine width | mm | 1430 | ||
Machine height | mm | 1690 | ||
Positive Comments From Customers
Company Introduction

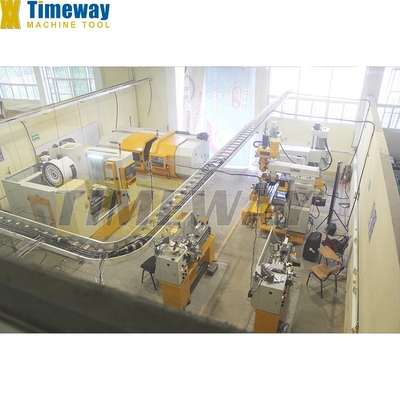

Factory Display：
