AL-800 Worldwide Standard Manual Lathes for Ordinary Light Duty Marketing Key Training
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,000.00/sets 1-2 sets |

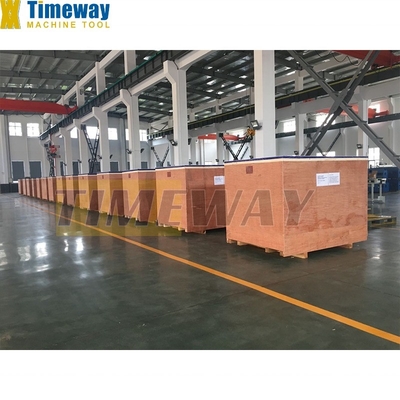

| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 800 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Type: | Horizontal | Weight (KG): | 5000 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Bench Lathe | Machine Type: | Horizontal Metal Turning Lathe Machine |
| After-sales Service Provided: | Online Support | Product Name: | Manual Metal Lathe Machine |
| Keyword: | Universal Metal Lathe | Function: | Machining Metal |
| Automatic Grade: | Normal | Product Type: | Bench Lathe Machine Tool |
| Precision: | High Precision | CNC Or Not: | Nomal |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | Egypt, Italy, Peru, Russia, South Korea, Romania, Nigeria |
| Core Components: | Engine | Max. Turned Length (mm): | 1350 Mm |
| Port: | China Port | ||
Product Description
Products Description

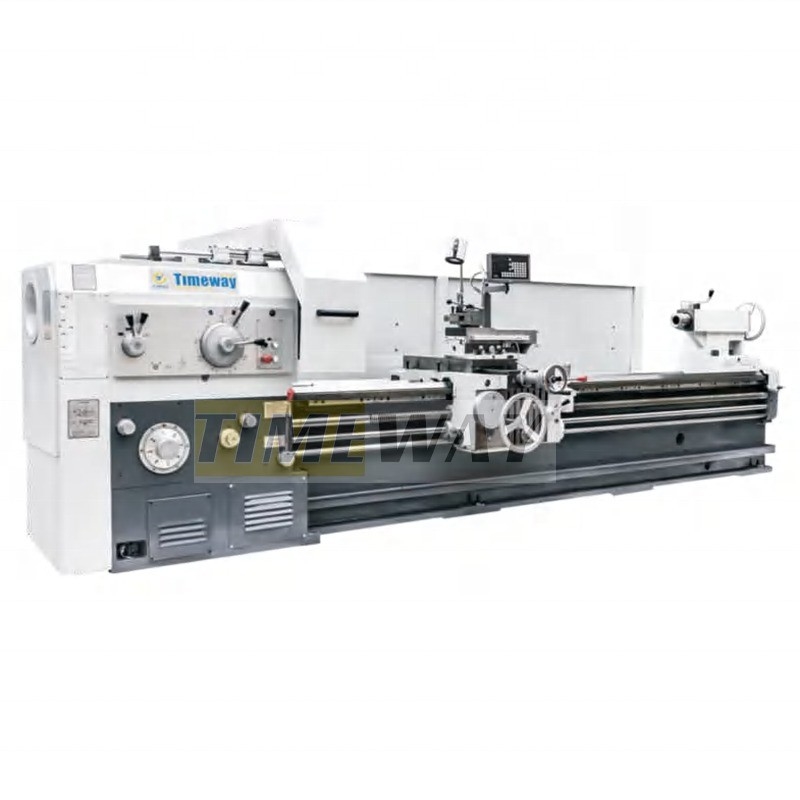

AL - 800
Heavy Duty Horizontal Lathe:
Specification | Unit | AL-800 |
Max. swing over bed | mm | 800 |
Max. swing over cross slide | mm | 480 |
Distance between centers | mm | 1500/2000/3000/4000/5000/6000 |
Max. turning length | mm | 1350/1850/2850/3850/4850/5850 |
Bed width | mm | 600 |
Loading capacity | kg | 3000 |
Spindle nose | - | C11 (C15 optional) |
Spindle bore | mm | 100 (140 optional) |
Spindle taper | - | Metric 1:20 |
Spindle speed range | rpm | CCW: 6-750; CW: 10-775 |
Spindle speed step | steps | CCW: 18; CW: 6 |
Longitudinal feed range | mm/r | 0.1-24.32 (64) |
Cross feed range | mm/r | 0.05-12.16 (64) |
Metric threads range (kinds) | mm | 1-240 (50) |
Inch threads range (kinds) | TPI | 14-1 (26) |
Module threads range (kinds) | MP | 0.5-120 (53) |
Diametrical threads range (kinds) | DP | 28-1 (24) |
Rapid feed speed | mm/min | 4000 |
Distance spindle center to tool base | mm | 33 |
Tool post swivel angle | ° | ±90° |
Cross slide travel | mm | 500 |
Top slide travel | mm | 200 |
Tool section size | mm | 32x32 |
Tailstock quill diameter | mm | 100 |
Tailstock quill travel | mm | 250 |
Tailstock quill taper | MT6 | |
Main motor power | kw | 11 |
Machine length | mm | 3670/3985/5165/6220/7400/8260 |
Machine width | mm | 1730 |
Machine height | mm | 1450 |
Machine height | mm | 1622 |
Positive Comments From Customers
Company Introduction

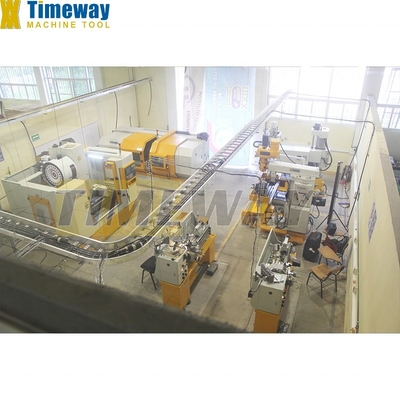

Factory Display：
