Precision and Efficiency Professional Installation Training for AL-1400B Manual Lathe
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-1400B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $23,000.00/sets 1-2 sets |

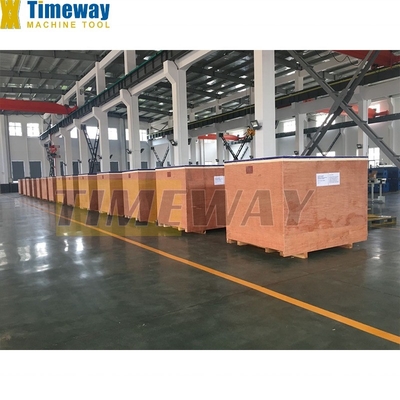

| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1400 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Type: | Horizontal | Weight (KG): | 8000 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Bench Lathe | Machine Type: | Horizontal Metal Turning Lathe Machine |
| After-sales Service Provided: | Online Support | Product Name: | Manual Metal Lathe Machine |
| Keyword: | Universal Metal Lathe | Function: | Machining Metal |
| Automatic Grade: | Normal | Precision: | High Precision |
| Product Type: | Bench Lathe Machine Tool | CNC Or Not: | Nomal |
| Condition: | New | Spindle Bore(mm): | 130 |
| Applicable Industries: | Home Use, Retail, Construction Works | Showroom Location: | Italy, Peru, Russia, South Korea, Romania, Nigeria |
| Core Components: | Bearing, Pump, Gear, PLC, Pressure Vessel | Max. Turned Length (mm): | 12000 Mm |
| Port: | China Port | ||
Product Description
Products Description

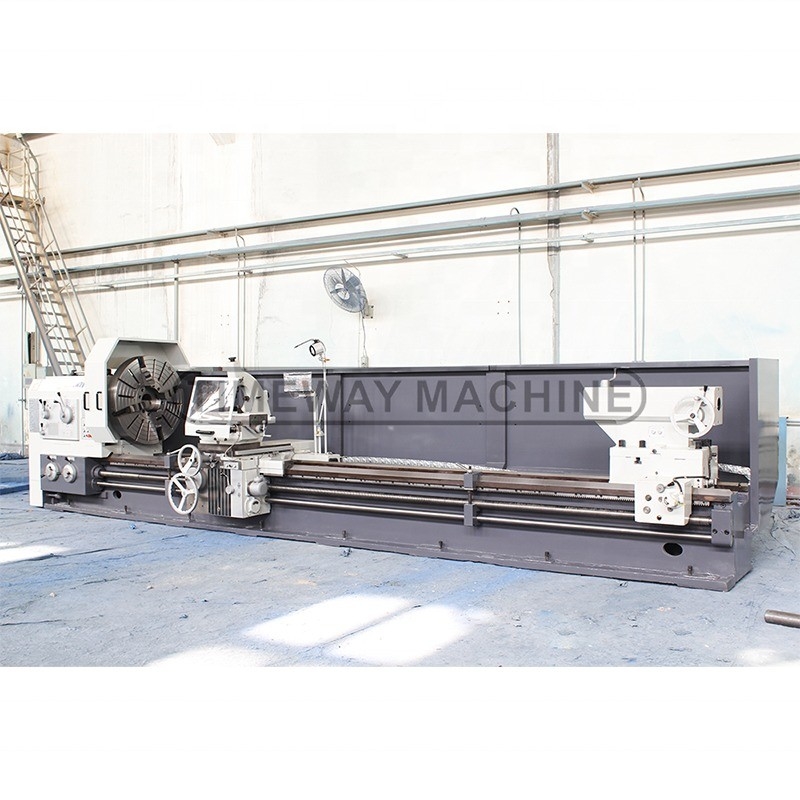

AL - 1400B
Heavy Duty Horizontal Lathe:
Specification | Unit | AL-1400B |
Max. swing over bed | mm | 1400 |
Max. swing over cross slide | mm | 1015 |
Distance between centers | mm | 1500/2000/3000/4000/5000/6000/8000/10000/12000 |
Max. turning length | mm | 1300/1800/2800/3800/4800/5800/7800/9800/11800 |
Bed width | mm | 755 |
Loading capacity | kg | 6000 |
Spindle nose | - | A2-15 (8xM22) |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | CCW: 3.15-315, CW: 3.5-291 |
Spindle speed step | steps | CCW: 21, CW: 12 |
X/Z-axis feed kinds | kinds | 56/56 |
Feed range | mm | Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3 |
Metric threads range (kinds) | mm | 1-120 (44) |
Inch threads range (kinds) | TPI | 28-1/4 (31) |
Module threads range (kinds) | MP | 0.5-60 (45) |
Diametrical threads range (kinds) | DP | 1/2-56 (38) |
Distance spindle center to tool base | mm | 48 |
Tool post swivel angle | ° | ±90° |
Cross slide travel | mm | 580 |
Top slide travel | mm | 300 |
Tool section size | mm | 45x45 |
Rapid feed speed | mm/min | Longitudinal: 3740; Cross: 1870; Top tool-post: 935 |
Tailstock quill diameter | mm | 160 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | MT6 |
Main motor power | kw | 22 |
Machine length | mm | 4600/5100/6100/7100/8100/9100/11100/13100/15100 |
Machine width | mm | 2150 |
Machine height | mm | 1950 |
Machine height | mm | 1622 |
Positive Comments From Customers
Company Introduction

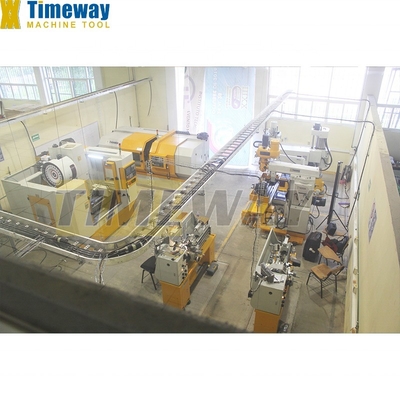

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
