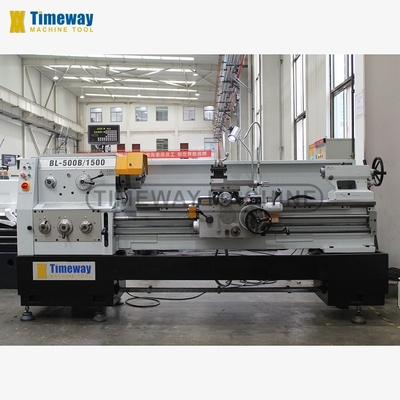

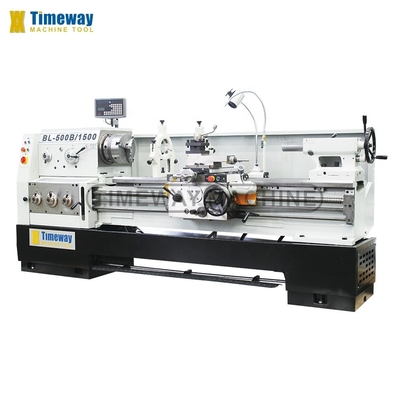

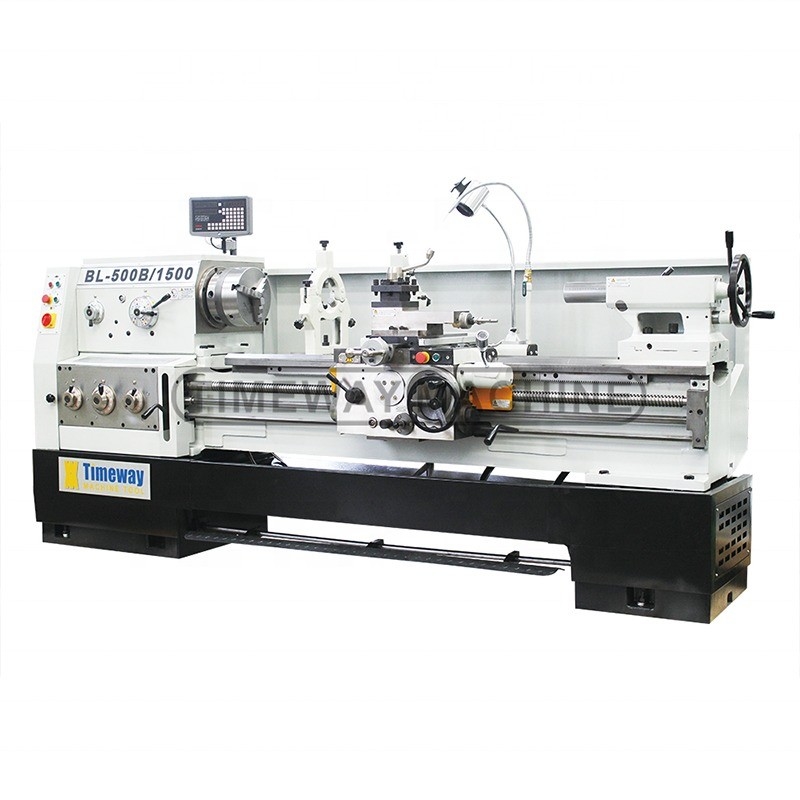

BL-500B Bench Lathe Machine Tool Professional Testing for Multifunctional Performance
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | BL-500B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 500 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Type: | Horizontal | Weight (KG): | 2050 KG |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Bench Lathe | Machine Type: | Horizontal Metal Turning Lathe Machine |
| Product Name: | Manual Metal Lathe Machine | Keyword: | Universal Metal Lathe |
| Function: | Machining Metal | Product Type: | Bench Lathe Machine Tool |
| Precision: | High Precision | Processing: | Metal Workpiece |
| Key Word: | Horizontal Manual Lathe Machine | Color: | Customrized |
| Condition: | New | Spindle Bore(mm): | 82 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Italy, Peru, Russia, South Korea, Romania, Nigeria |
| Max. Turned Length (mm): | 3000 Mm | Core Components: | Bearing, Pump, Gear, Motor, Other, PLC, Pressure Vessel, Engine |
| Port: | China Port | ||
Product Description
Products Description
BL - 500B
Gap-bed Lathe:
Specification | Unit | BL-500B |
Max. swing over bed | mm | 500 |
Max. swing over cross slide | mm | 300 |
Max. swing over gap | mm | 710 |
Gap length | mm | 240 |
Distance between centers | mm | 750/1000/1500/2000/3000 |
Max. turning length | mm | 700/950/1450/1950/2950 |
Spindle bore | mm | Φ82 |
Spindle taper | - | Φ90, 1:20 |
Spindle nose | - | ISO 702/II No.8 |
Spindle speed range (steps) | rpm | 9-1600 (24) |
Top slide travel | mm | 145 |
Cross slide travel | mm | 320 |
Tool section size | mm | 25x25 |
X-axis rapid feed speed | m/min | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed speed | m/min | 50HZ: 4.5; 60HZ: 5.4 |
X-axis feed range | mm/r | 0.012-2.73 (93) |
Z-axis feed range | mm/r | 0.028-6.43 (93) |
Metric threads range (kinds) | mm | 0.5-224 (48) |
Inch threads range (kinds) | TPI | 72-1/8 (46) |
Module threads range (kinds) | MP | 0.5-112 (42) |
Diametrical threads range (kinds) | DP | 56-1/4 (45) |
Tailstock quill diameter | mm | Φ75 |
Tailstock quill travel | mm | 150 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 7.5 |
Rapid feed motor power | kw | 0.3 |
Coolant pump motor power | kw | 0.12 |
Machine length | mm | 2382/2632/3132/3632/4632 |
Machine width | mm | 975 |
Machine height | mm | 1230 |
Machine weight | kg | 2050/2100/2300/2500/2900 |
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
