BL 660B Gap-bed Lathe Max. Length of Workpiece mm 660 Enhancing Production Efficiency
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | BL-660B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $11,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 660 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Type: | Horizontal | Weight (KG): | 2150 KG |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Manual Lathe Machine | Machine Type: | Horizontal Metal Turning Lathe Machine |
| After-sales Service Provided: | Online Support | Product Name: | Manual Metal Lathe Machine |
| Keyword: | Universal Metal Lathe | Function: | Machining Metal |
| Automatic Grade: | Normal | Product Type: | Flat Bed Lathe |
| Precision: | High Precision | CNC Or Not: | Nomal |
| Condition: | New | Spindle Bore(mm): | 82 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Italy, Peru, Russia, South Korea, Romania, Nigeria |
| Core Components: | Bearing, Pump, Gear, Motor, Other, PLC, Pressure Vessel, Engine | Max. Turned Length (mm): | 3000 Mm |
Product Description
Products Description
BL - 660B
Gap-bed Lathe:
Specification | Unit | BL-660B |
Max. swing over bed | mm | 660 |
Max. swing over cross slide | mm | 420 |
Max. swing over gap | mm | 870 |
Gap length | mm | 240 |
Distance between centers | mm | 750/1000/1500/2000/3000 |
Max. turning length | mm | 700/950/1450/1950/2950 |
Spindle bore | mm | Φ82 |
Spindle taper | - | Φ90, 1:20 |
Spindle nose | - | ISO 702/II No.8 |
Spindle speed range (steps) | rpm | 9-1600 (24) |
Top slide travel | mm | 145 |
Cross slide travel | mm | 310 |
Tool section size | mm | 25x25 |
X-axis rapid feed speed | m/min | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed speed | m/min | 50HZ: 4.5; 60HZ: 5.4 |
X-axis feed range | mm/r | 0.012-2.73 (93) |
Z-axis feed range | mm/r | 0.028-6.43 (93) |
Metric threads range (kinds) | mm | 0.5-224 (48) |
Inch threads range (kinds) | TPI | 72-1/8 (46) |
Module threads range (kinds) | MP | 0.5-112 (42) |
Diametrical threads range (kinds) | DP | 56-1/4 (45) |
Tailstock quill diameter | mm | Φ75 |
Tailstock quill travel | mm | 150 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 7.5 |
Rapid feed motor power | kw | 0.3 |
Coolant pump motor power | kw | 0.12 |
Machine length | mm | 2382/2632/3132/3632/4632 |
Machine width | mm | 975 |
Machine height | mm | 1270 |
Machine weight | kg | 2150/2200/2400/2600/3000 |
Positive Comments From Customers
Company Introduction

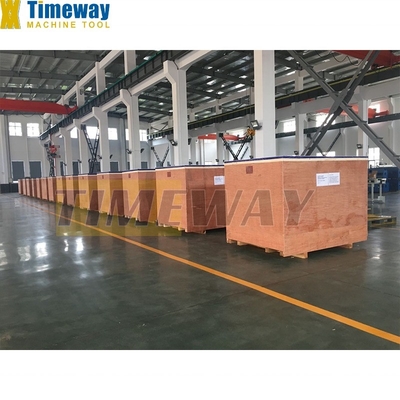

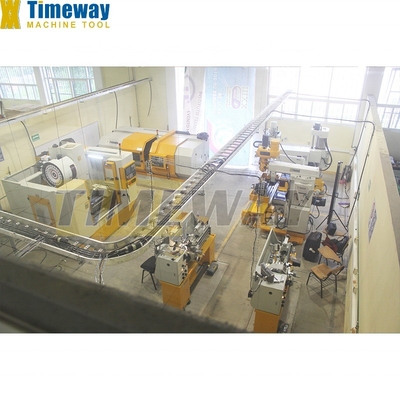

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
