Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
 |
CL-460 Gap-bed Lathe with Advanced Cooling System Perfect Spare Parts Supply 1966 KG
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | CL-460 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $8,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 460 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Type: | Horizontal | Weight (KG): | 1966 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Bench Lathe | Machine Type: | Horizontal Metal Turning Lathe Machine |
| After-sales Service Provided: | Online Support | Product Name: | Manual Metal Lathe Machine |
| Keyword: | Universal Metal Lathe | Function: | Machining Metal |
| Automatic Grade: | Normal | Product Type: | Bench Lathe Machine Tool |
| Precision: | High Precision | CNC Or Not: | Nomal |
| Condition: | New | Spindle Bore(mm): | 58 |
| Showroom Location: | United States, Germany, Philippines, Saudi Arabia, Pakistan, Russia, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh, Japan | Core Components: | Bearing, Gear, Motor, Gearbox, Engine |
| Max. Turned Length (mm): | 2000 Mm | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other |
| Port: | China Port | ||
Product Description
Products Description

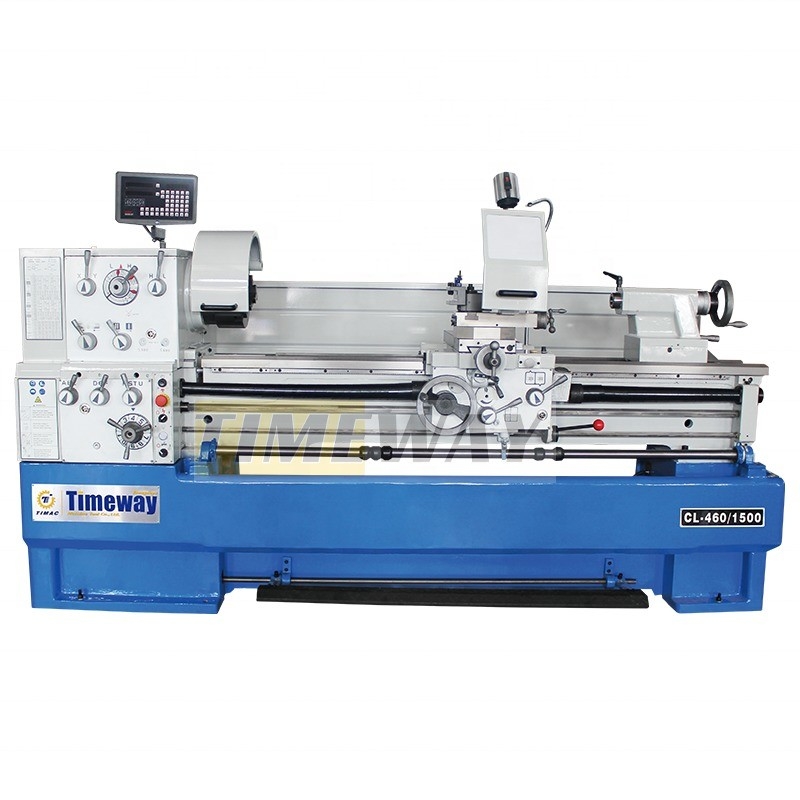

CL - 460
Gap-bed Lathe:
Specification | Unit | CL-460 |
Max. swing over bed | mm | 460 |
Max. swing over cross slide | mm | 270 |
Max. swing over gap | mm | 690 |
Distance between centers | mm | 1000/1500/ 2000 |
Gap length | mm | 165 |
Bed width | mm | 300 |
Spindle nose | - | D1-6 |
Spindle bore | mm | 58 |
Spindle taper | - | MT6 |
Spindle speed range (steps) | rpm | 25-2000 (12) |
Top slide travel | mm | 128 |
Cross slide travel | mm | 285 |
Tool section size | mm | 25x25 |
Leadscrew | - | 40x4T.P.I or pitch 6mm |
Longitudinal feed range | mm/rev | 0.031-1.7 (42) |
Cross feed range | mm/rev | 0.014-0.784 (42) |
Metric threads range (kinds) | mm | 0.1-14 (41) |
Inch threads range (kinds) | TPI | 2-112 (60) |
Diametrical threads range (kinds) | DP | 4-112 (50) |
Module threads range (kinds) | MP | 0.1-7 (34) |
Tailstock quill diameter | mm | 60 |
Tailstock quill travel | mm | 130 |
Tailstock quill taper | - | MT4 |
Main motor power | kw | 5.5 |
Coolant pump power | kw | 0.1 |
Machine dimensions (LxWxH) | cm | 220/275/325x108x137 |
Packing size (LxWxH) | cm | 225/280/330x112x162 |
Net weight | kg | 1645/1810/1965 |
Gross weight | kg | 1910/2115/2295 |
Positive Comments From Customers
Company Introduction

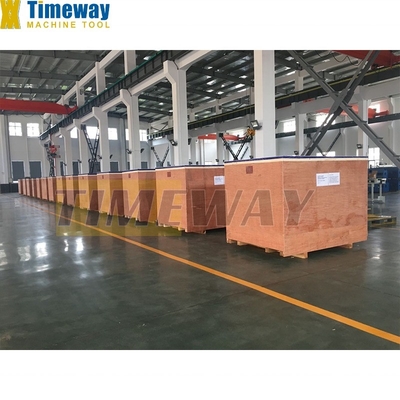

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
