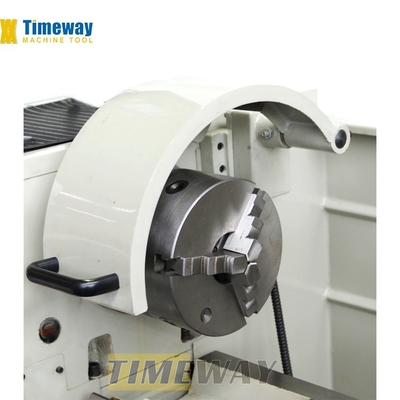

>> Chuck guard for protecting operator is optional.
 |
High Precision Machine Competitive Lathe torno Gap-bed Lathe Mini Lathe 1930*760*1500
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | CM-400V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,560.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 550 - 3000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 187 |
| Type: | Horizontal | Spindle Motor Power(kW): | 3.3kw |
| Voltage: | 220V/380V/400V/415V | Dimension(L*W*H): | 1930*760*1500 |
| Weight (KG): | 1600 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Manual Lathe Machine |
| Machine Type: | Horizontal Normal Lathe | Product Name: | Manual Metal Lathe Machine |
| Keyword: | Metal Lathe | Function: | Machining Metal |
| Precision: | High Precision Machine | Processing: | Metal Workpiece |
| Key Word: | Horizontal Manual Lathe Machine | Color: | Customrized |
| Distance Between Centers: | 1500mm | Condition: | New |
| Spindle Bore(mm): | 52 | Showroom Location: | United States, Germany, Philippines, Saudi Arabia, Pakistan, Russia, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh, Japan |
| Core Components: | Bearing, Gear, Motor, Gearbox, Engine | Max. Turned Length (mm): | 1500 Mm |
| Year: | 2021 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other |
| Port: | China Port | ||
Product Description
Conventional Gap-Bed Lathe
Feature:
* Precision ground and supersonic frequency hardened bed ways.
* The spindle is supported with precision roller bearing;
* Headstock gears are made of high quality steel, ground and hardened;
* Removable gap is provided for larger diameter work;
* Easy operating gear box has various feeds and thread cutting function;
* Precision ground and supersonic frequency hardened bed ways.
* The spindle is supported with precision roller bearing;
* Headstock gears are made of high quality steel, ground and hardened;
* Removable gap is provided for larger diameter work;
* Easy operating gear box has various feeds and thread cutting function;
Products Description
3-jaw chuck | Living center |
4-jaw chuck | Taper turning attachment |
Face plate | Drill chuck |
Dead centers | Quick change tool holder |
Thread chasing dial | 2/3 axis digital readout |
Splash guard | Chuck cover |
Oil gun | Leadscrew cover |
Work lamp | Tool post cover |
Cooling system | Driving plate |
Steady rest | |
Follow rest | |
Change gears | |
Reducing sleeve | |
Foot brake | |
Foundation bolts | |
Tool-box & tools | |
Operation manual |
Specifications | Unit | CM-400 | CM-400V |
Swing over bed | mm | 410 | 410 |
Swing over cross slide | mm | 255 | 255 |
Swing in gap diameter x width | mm | 580 | 580 |
Height of center | mm | 205 | 205 |
Distance between centers | mm | 1000/ 1500 | 1000/ 1500 |
Width of bed | mm | 250 | 250 |
Cutting tool max section | mm | 20x20 | 20x20 |
Total travel of cross slide | mm | 210 | 210 |
Total travel of top slide | mm | 140 | 140 |
Spindle bore | mm | 52 | 52 |
Spindle morse taper in bore | - | D1-6 | D1-6 |
Lead screw thread | TPI | 4 | 4 |
Spindle speeds range (steps) | rpm | 45-1800 (16) | 30-550 or 550-3000 (stepless) |
Threads imperial pitches | TPI | 2-72 (45) | 2-72 (45) |
Threads metric pitches | mm | 0.1-14 (39) | 0.1-14 (39) |
Longitudinal feeds | mm/rev | 0.05-1.7 | 0.05-1.7 |
Cross feeds | mm/rev | 0.025-0.85 | 0.025-0.85 |
Range of module pitches | MP | 0.3-3.5 (18) | 0.3-3.5 (18) |
Range of diametral pitches | DP | 8-44 (21) | 8-44 (21) |
Tailstock quill diameter | mm | 50 | 50 |
Total travel of tailstock quill | mm | 120 | 120 |
Taper in tailstock quill | - | MT4 | MT4 |
Spindle drive motor | kw | 3.3/2.2 | 3.3/2.2 |
Coolant pump motor | w | 90 | 90 |
Packing size (LxWxH) | mm | 2060/2560x900x1640 | 2060/2560x900x1640 |
Net weight | kg | 1300/1550 | 1350/1600 |
Gross weight | kg | 1500/1750 | 1555/1755 |
Machine Details
Machine features:

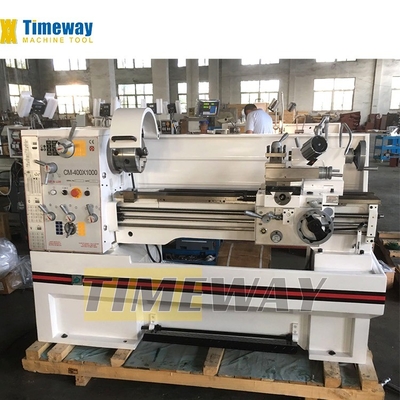

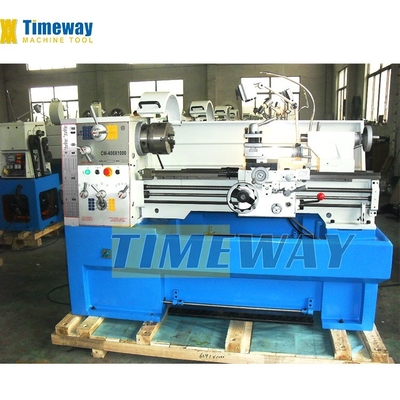

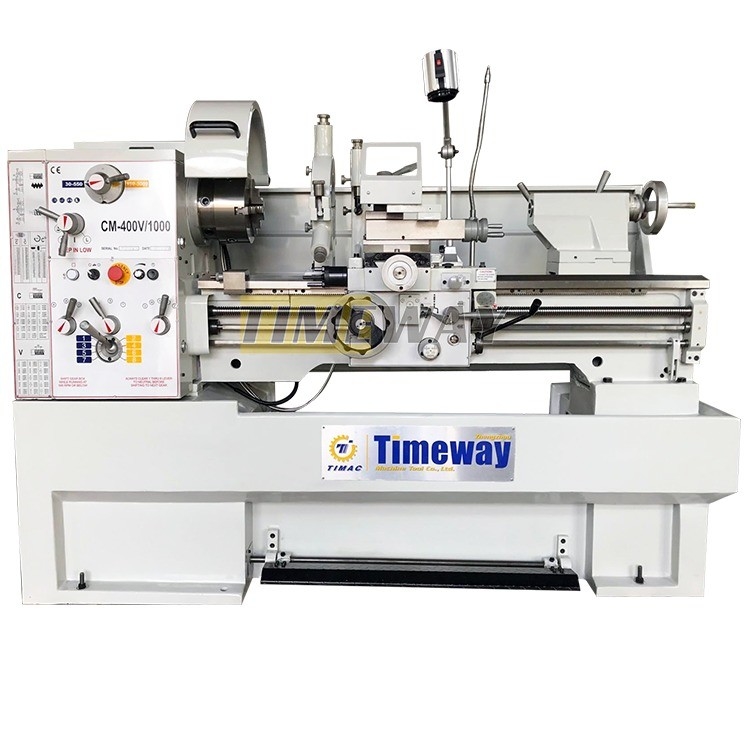

This series universal center lathe is a fantastic model for small to medium size turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. Increasing the application area of this model significantly. For reducing the non-productive time, this model is also can equipped with 2 or 3 axis digital readout.
Inductive hardened, polished grey cast-iron machine bed.
Electro mechanical foot brake reduces downtime significantly.
State-of-the-art main spindle bearing with high quality angular ball bearings.
Easy, smooth and precisely adjustable speed and feed settings.
Hardened, polished gears and shafts, also in feed gear unit.
Centrally located, logical switches for feeds and threads with leadscrew and feed rod.

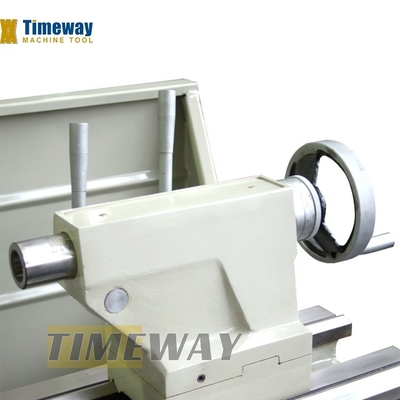

Adjustable tailstock for taper turning, handwheel feature adjustable scale(0.02mm).
The removeable bridge allows machining of workpieces with a big diameter.
Head stock gears are made of high quality steel ground and hardened more than HRC 50.
==================================
>> 3-jaw manual chuck comes standard;
==================================
>> The lathe rails are hardened and ground;
>> Finish X and Z-axis automatic feeding;
>> Tool post guard is optional.
==================================
>> The steady rest and follow rest come standard for gap lathe machine.
==================================

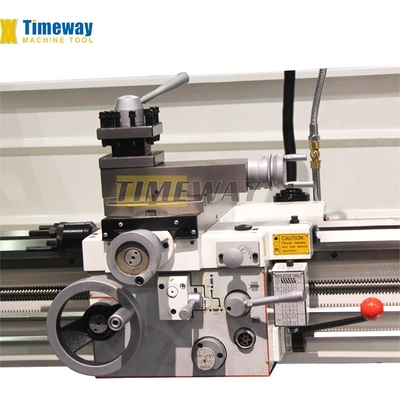

>> Standard 4-station tool post, USA-type quick change tool post is available.
==================================
>> 2 & 3-axis DRO is optional;
>> Foot brake can realize quickly stopping the spindle;
>> Z-axis screw guard and sizing device come optional.
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts (only for CNC horizontal lathe):
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
Why Choose Us
Renishaw laser interferometer (only for CNC horizontal lathe)：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
