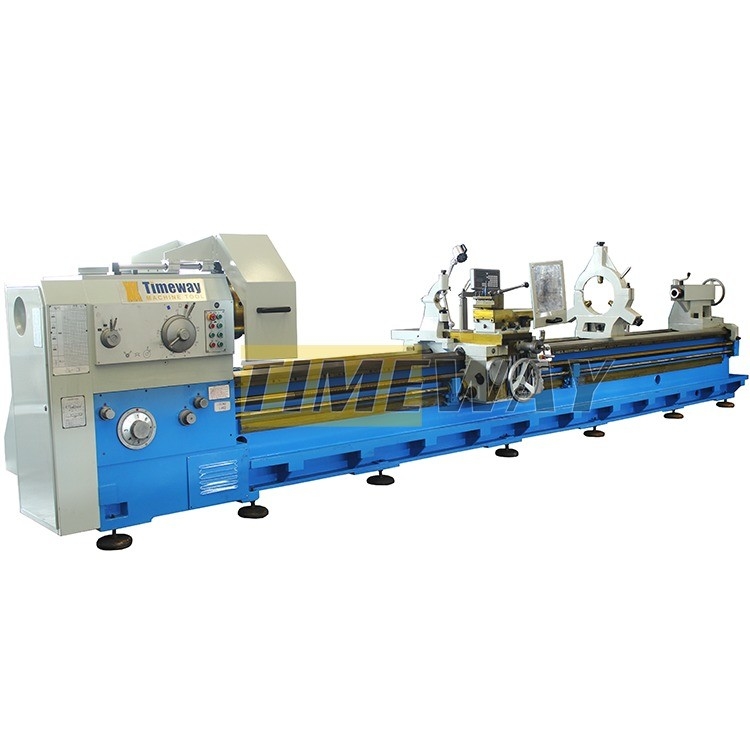

630mm Swing Over Bed Horizontal Lathe for Versatile Metalworking Operations
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | AL-630B/750 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $23,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 750 | Range Of Spindle Speed(r.p.m): | 7.5 - 1000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 11 | Voltage: | 380V |
| Dimension(L*W*H): | 2958*1393*1537mm | Weight (KG): | 6300 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2023 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Manual Metal Lathe Machine | Machine Type: | Horizontal Normal Lathe |
| Model: | AL-630B/750 | Color: | Customized Option |
| Swing Over Bed: | 630mm | Spindle Bore: | 100mm |
| Distance Between Centers: | 750/1000/1500/2000/3000mm | CNC Or Not: | Normal Lathe Machine |
| Motor Power: | 11kw | After-sales Service Provided: | 1 Year |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Home Use, Retail | Showroom Location: | Egypt, Canada, South Korea, Chile, Algeria, South Africa |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox | Max. Turned Length (mm): | 600 Mm |
| Port: | China Port | ||
Product Description
Products Description

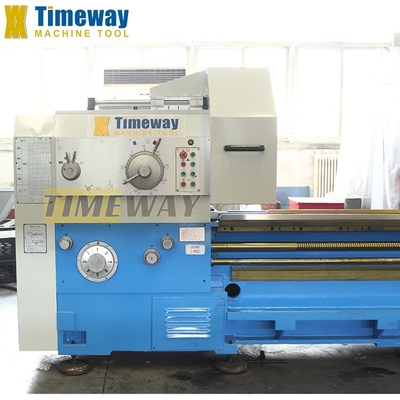

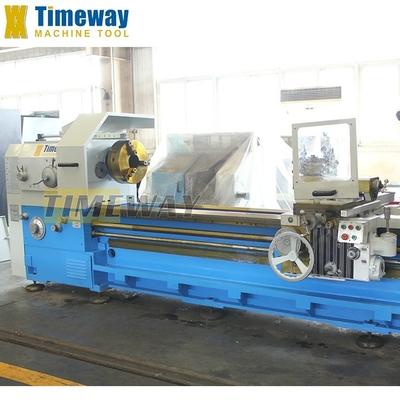

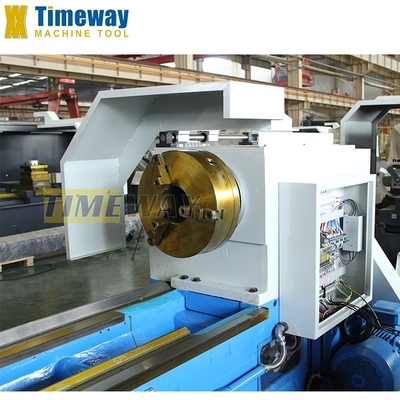

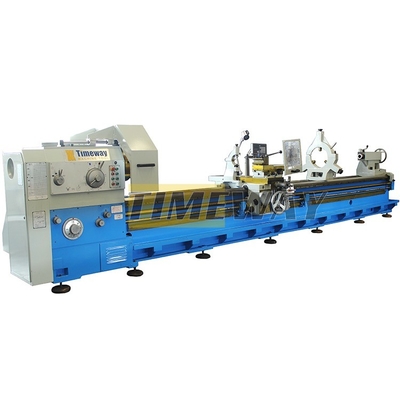

Heavy Duty Horizontal Lathe AL-630B
Technical Parameter
Specifications | Unit | AL-630B | AL-800B | AL-940B | ||
Swing over bed | mm | 630 | 800 | 940 | ||
Swing over carriage | mm | 350 | 520 | 660 | ||
Max. length of workpiece | mm | 500/1000/1500/2000/3000/4000/5000/6000/8000/10000 | ||||
Max. turning length | mm | 600/850/1350/1850/2850/3850/4850/5850/7850/9850 | ||||
Swing over gap (optional) | mm | 830 | 1000 | 1140 | ||
Effective width of gap (optional) | mm | 300 | 300 | 300 | ||
Span of guideway | mm | 550 | 550 | 550 | ||
Max. weight of workpiece | kg | 2000 | 2000 | 2000 | ||
Spindle nose | C11 | C11 | C11 | |||
Spindle bore | mm | 100 | 100 | 100 | ||
Taper hole of spindle | Metric 120 | Metric 120 | Metric 120 | |||
Range of spindle speeds | r/min | 7.5-1000 | 6-800 | 6-800 | ||
No. of spindle speeds | steps | 18 | 18 | 18 | ||
Longitudinal feed speed | mm/r | 0.1-24.32 (64) | 0.1-24.32 (64) | 0.1-24.32 (64) | ||
Cross feed speed | mm/r | 0.05-12.16 (64) | 0.05-12.16 (64) | 0.05-12.16 (64) | ||
Screw pitch of leadcsrew | mm | 12 | 12 | 12 | ||
No. and range of metric thread | mm | 1-240 (50) | 1-240 (50) | 1-240 (50) | ||
No. and range of inch thread | 14-1 (26) | 14-1 (26) | 14-1 (26) | |||
No. and range of module thread | mm | 0.5-120 (53) | 0.5-120 (53) | 0.5-120 (53) | ||
No. and range of dia. thread | 28-1 (24) | 28-1 (24) | 28-1 (24) | |||
Rapid traverse speed | mm/min | 4000 | 4000 | 4000 | ||
Max. travel of cross slide | mm | 440 | 540 | 570 | ||
Max. travel of top slide | mm | 200 | 200 | 200 | ||
Section of tool shank | mm | 32x32 | 32x32 | 32x32 | ||
Dia. of tailstock quill | mm | 100 | 100 | 100 | ||
Travel of tailstock quill | mm | 250 | 250 | 250 | ||
Taper hole of tailstock quill | MT5 | MT5 | MT5 | |||
Main motor power | kw | 11 | 11 | 11 | ||

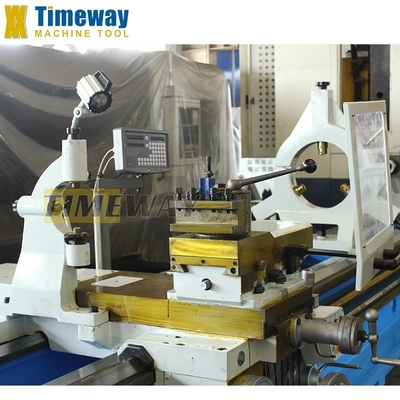

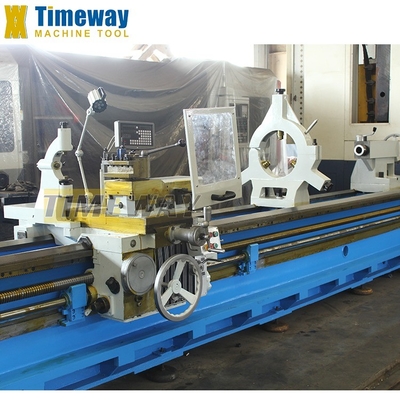

Accessories
Standard accessories: Optional accessories:
· 4-jaw independent chuck · Steady rest (over 3M length) · Follow rest (over 3M length) · Electric moving tailstock · Dead center of tailstock · 4-station tool post · Cooling system · Work lamp · Tools & tool-box · Leveling wedge and bolts · Operation manual (English) | · Face plate · 2 or 3-axis digital indicator · Chuck guard · Tool-post guard · Rear splash guard · Quick changing tool post |
