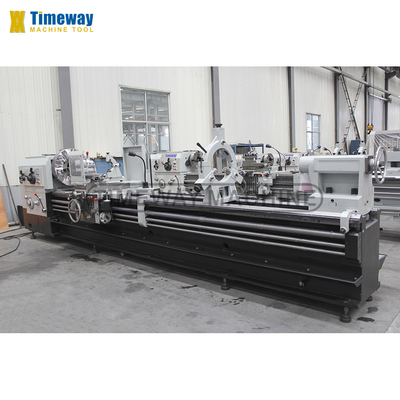

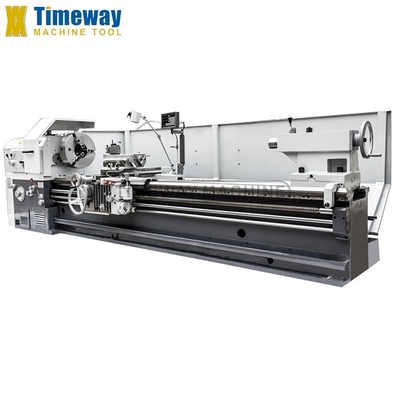

Universal Horizontal Heavy Duty Lathe Machine with Distance Between Centers of 1500mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-800/2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2000 | Range Of Spindle Speed(r.p.m): | 6 - 750 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 11 | Voltage: | 380V 50HZ 3PH Or Negotiable |
| Dimension(L*W*H): | 3985*1730*1450mm | Weight (KG): | 10000 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Horizontal Turning Lathe Machine | Machine Type: | Horizontal Normal Lathe |
| CNC Or Not: | Normal Lathe Machine | Swing Over Bed: | 1000mm |
| Distance Between Centers: | 1500/2000/3000/ 4000/5000/6000mm | Color: | Customized Option |
| After-sales Service Provided: | 1 Year | Model: | AL-800/2000 |
| Motor: | 11KW | Spindle Bore: | 100mm |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Garment Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction Works | Showroom Location: | Saudi Arabia, Indonesia, Thailand, Kenya, South Korea, Colombia, Romania, South Africa, Nigeria |
| Core Components: | Gear, Motor, Gearbox | Max. Turned Length (mm): | 2000 Mm |
Product Description
Products Description
Features:
1.Stable performance: It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
2.Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
3.High rigidity overall bed with 600 mm bed span, which ensures the machine has strong stability and high precision, and bed loading capacity to 3000 kg.
4.High rigidity and high precision spindle: The machine tool spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-way angular contact ball bearing. Improve accuracy and increase rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
5.Top slide can turn short cone by automatic feed or by hand, top slide and longitudinal feed are combined to turn the long conical surface.
1.Stable performance: It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
2.Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
3.High rigidity overall bed with 600 mm bed span, which ensures the machine has strong stability and high precision, and bed loading capacity to 3000 kg.
4.High rigidity and high precision spindle: The machine tool spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-way angular contact ball bearing. Improve accuracy and increase rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
5.Top slide can turn short cone by automatic feed or by hand, top slide and longitudinal feed are combined to turn the long conical surface.
Specification
Specification | Unit | AL-800 | ||
Swing over bed | mm | 800 | ||
Swing over cross slide | mm | 480 | ||
Max.length of workpiece | mm | 1000/1500/2000/3000/4000/5000/6000/7000/8000 | ||
Max.turning length | mm | 850/1350/1850/2850/3850/4850/5850/6850/7850 | ||
Width of bed | mm | 600 | ||
Max.weight of workpiece | kg | 3000 | ||
Spindle nose | C11 (optional:15) | |||
Dia.of spindle hole | mm | 100 (optional:140) | ||
Taper hole of spindle | mm | 1:20 / 150 | ||
Spindle speed(forward) | r/min | 18kinds, 5.5-750 | ||
Spindle speed(reverse) | r/min | 6kinds, 10-775 | ||
Longitudianl feed range | mm/r | 64kinds, 0.1-24.32 | ||
Cross feed range | mm/r | 64kinds, 0.05-12.16 | ||
Screw pitch of leadscrew | mm | 12 | ||
No.& range of metric threads | mm | 50kinds, 1-240 | ||
No.& range of inche threads | T.P.I. | 26kinds, 14-1 | ||
No.& range of module threads | mm | 63kinds, 0.5-120 | ||
No.& range of diametrical pitch threads | D.P. | 24kinds, 28-1 | ||
Rapid traverse speeed of carriage | mm/min | 4000 | ||
Distance between spindle centerline and tool resting plane | mm | 33 | ||
Section of toolshank | mm | 32 | ||
Swing range of toolpost | ±90º | |||
Max.travel of top slide | mm | 200 | ||
Max.travel of cross slide | mm | 500 | ||
Tailstock | Dia.of tailstock quill | mm | 100 | |
Travel of tailstock quill | mm | 250 | ||
Taper hole of tailstock quill | Morse 6 | |||
Power | Main motor power | kw | 11 | |
Power of rapid move motor | kw | 1.1 | ||
Power of cooling pump | kw | 0.9 | ||
Length | mm | 3180/3670/3985/5165/5220/7400/8260/10220 | ||
Width | mm | 1630 | ||
Height | mm | 1450 | ||
Accessories
· 3-jaw chuck · Steady rest (over 2M length) · Follow rest (over 2M length) · Manual moving tailstock · Dead center of tailstock · 4-station tool post · Cooling system · Work lamp · Tools & tool-box · Leveling wedge and bolts · Operation manual (English) | · 4-jaw independent chuck · Face plate · 2 or 3-axis digital indicator · Chuck guard · Too-post guard · Rear splash guard · Quick changing tool post |
Detailed Images

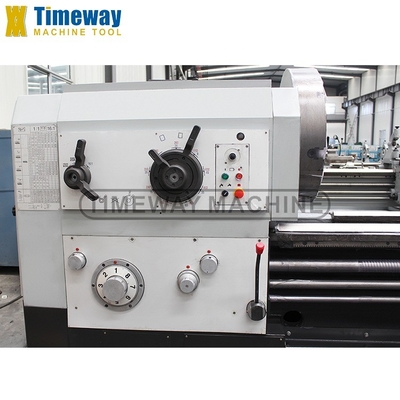

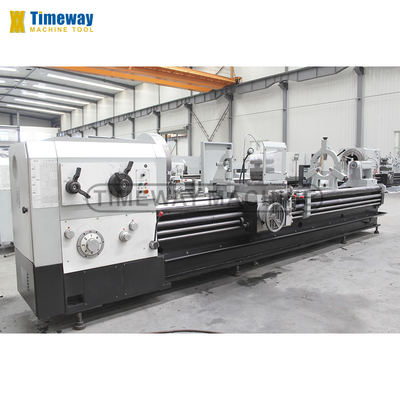

Spindle box:
The heavy duty lathe have 18 steps forward spindle speed 6-750 r/min; and also have 6 steps reverse 10-775 r/min. Wide spindle speed meet various processing requirements.
Spindle & Lathe chuck:
The 3-jaws chuck comes standard for the horizontal lathe, and the 4-jaws chuck and the face plate comes optional. The lathe chuck adopts C11-type spindle nose connection, convenient and fast. Pull-push spindle guard comes optional, finish stopping the spindle when it is opened.

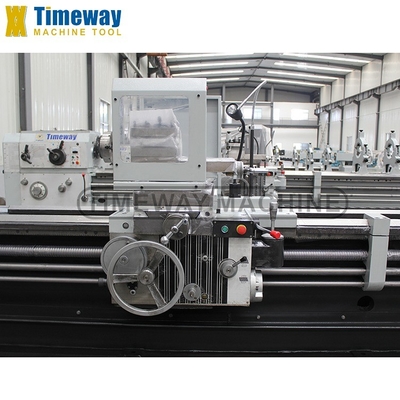

Tool-post guard (optional):
Foldable protection guard for the tool-post can effectively protect the safety of the worker, and does not hinder tool change.

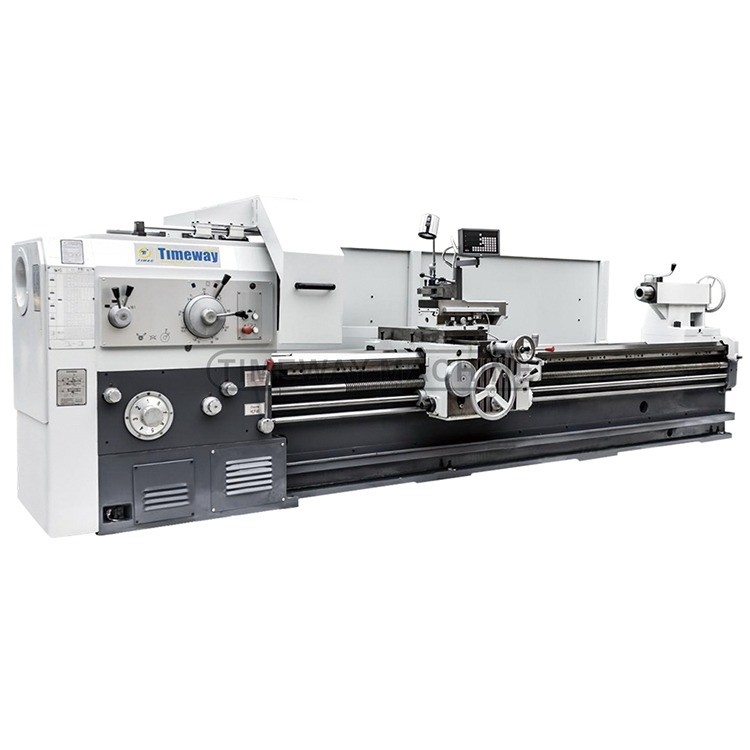

2-axis/ 3-axis DRO:
Regarding to customers' requirement, the DRO is available to operate the lathe machine more directly.
