Max. Turned Length 1450mm High Precision Gap-bed Lathe with Easy Handling and Swing 800mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | BL-800B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 9 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Weight (KG): | 2100 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Gap Bed Lathe Machine | Model: | BL-800B |
| Max. Swing Over Bed: | 800mm | Max.swing Over Cross Slide: | 300mm |
| Distance Between Centers: | 1500mm | Spindle Speed: | 9-1600rpm |
| Spindle Bore: | 82mm | Gap Length: | 240mm |
| CNC Or Not: | Nomal | After-sales Service Provided: | 1 Year |
| Condition: | New | Spindle Bore(mm): | 82 |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Retail, Energy & Mining | Showroom Location: | Turkey, Brazil, Peru, Colombia |
| Core Components: | Bearing, Gear, Motor, Gearbox, Engine | Max. Turned Length (mm): | 1450 Mm |
Product Description
Summary
The series gap bed lathe is suitable for all kinds of turning work, such as internal and external turning, taper turning, and other rotary parts turning, end face turning, also turning all kinds of common thread,inch,Metric, Module and D.p perform drilling, reaming, tapping and groove broaching.
Product Description

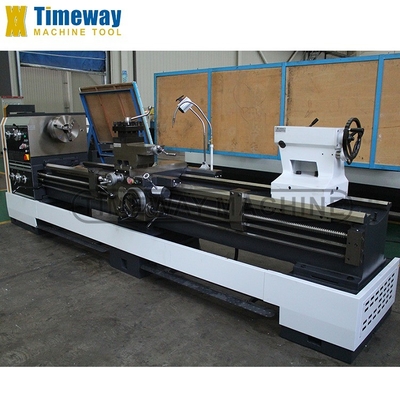

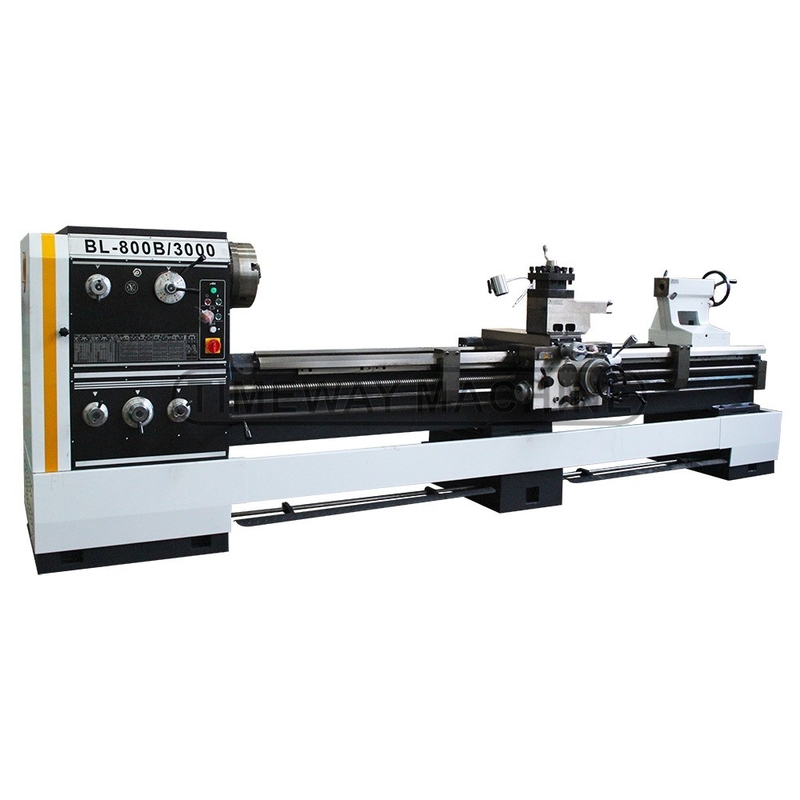

Gap-bed Lathe
Specification
SPECIFICATION | UNIT | BL-800B |
Max. swing over bed | mm | 800 |
Max. swing over cross slide | mm | 560 |
Max. swing over gap | mm | 1000 |
Gap length | mm | 240 |
Distance between centers | mm | 2000/3000 |
Max. turning length | mm | 1850/2850 |
Spindle bore | mm | Φ82 |
Spindle taper | - | Φ90, 1:20 |
Spindle nose | - | ISO 702/II No.8 |
Spindle speed range (steps) | rpm | 8-1400(24) |
Top slide travel | mm | 145 |
Cross slide travel | mm | 320 |
Tool section size | mm | 25x25 |
X-axis rapid feed speed | m/min | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed speed | m/min | 50HZ:4.5; 60HZ: 5.4 |
X-axis feed range | mm/r | 0.012-2.73(93) |
Z-axis feed range | mm/r | 0.028-6.43(93) |
Metric threads range (kinds) | mm | 0.5-224(48) |
Inch threads range (kinds) | TPI | 72-1/8(46) |
Module threads range (kinds) | MP | 0.5-112(42) |
Diametrical threads range (kinds) | DP | 56-4 (24) |
Tailstock quill diameter | mm | Φ90 |
Tailstock quill travel | mm | 150 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 7.5 |
Rapid feed motor power | kw | 0.3 |
Coolant pump motor power | kw | 0.12 |
Machine length | mm | 3365/4365 |
Machine width | mm | 1340 |
Machine height | mm | 1430 |
Machine weight | kg | 330/3700 |
Accessories
STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
3-jaw chuck | quick change tool post |
4-jaw chuck | 2/3-axis digital readout |
face plate | live center |
dead center | taper turning attachment |
steady rest | chuck guard |
follow rest | |
thread chasing dial | |
change gears | |
reducing sleeve |

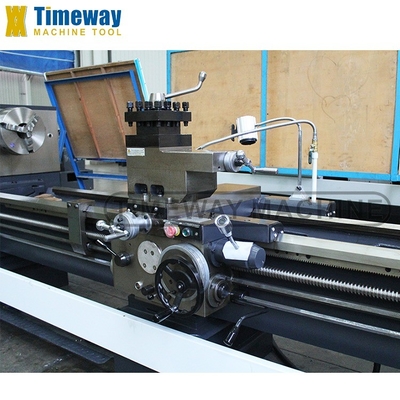

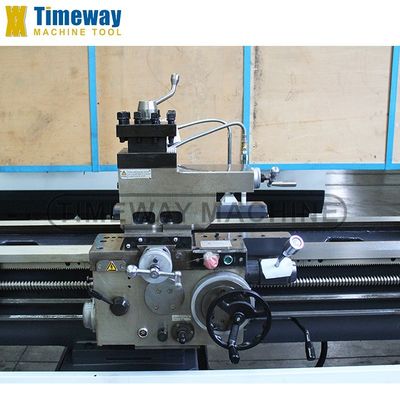

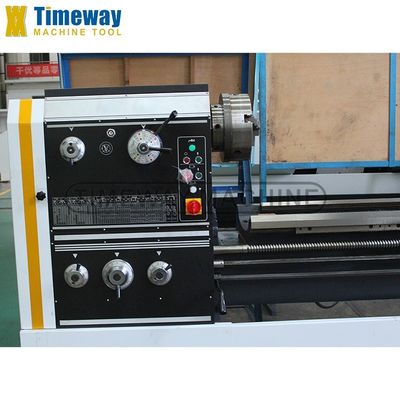

Detailed Images

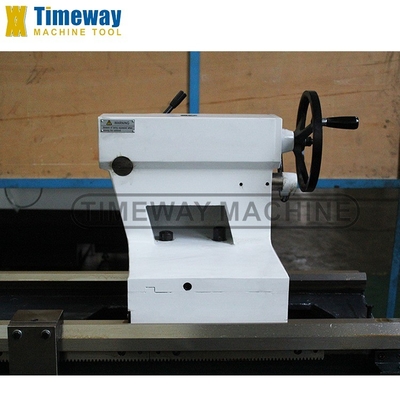

Manual tailstock
One-Stop Shopping
You can click on the picture to view the products you are interested in
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
