* Precision ground and supersonic frequency hardened bed ways.
* The spindle is supported with precision roller bearing.
* Headstock gears are made of high quality steel, ground and hardened.
* Removable gap is provided for larger diameter work.
* Easy operating gear box has various feeds and thread cutting function.
 |

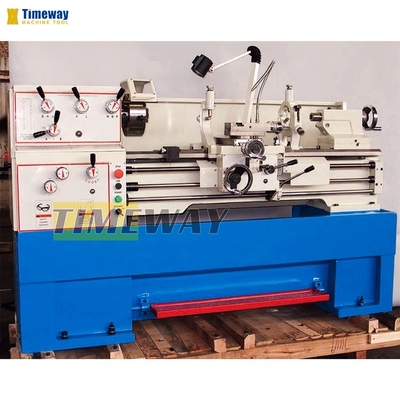

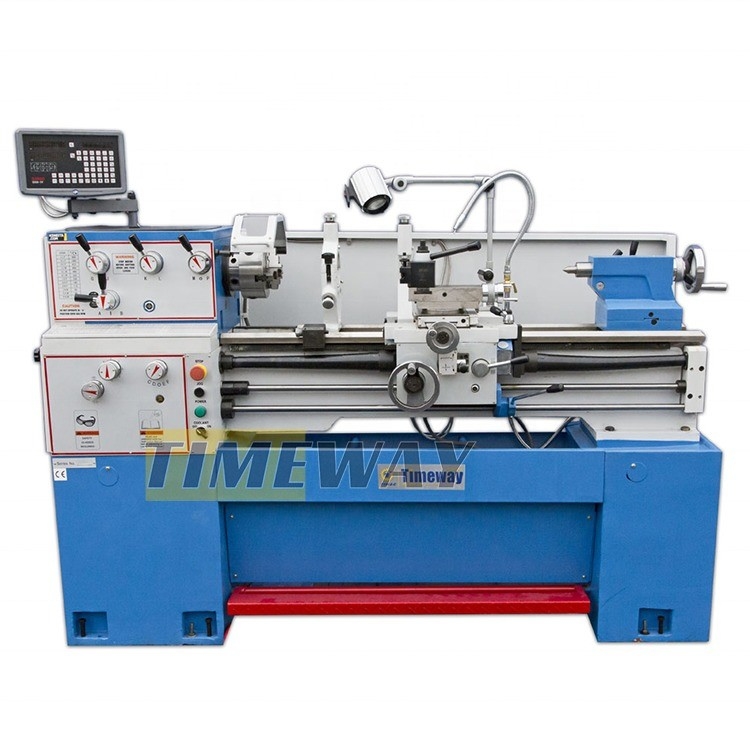

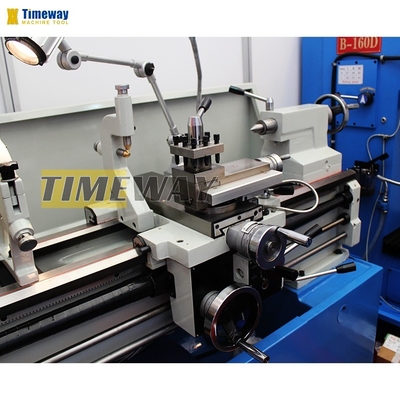

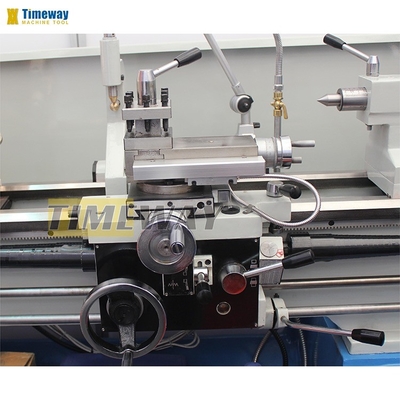

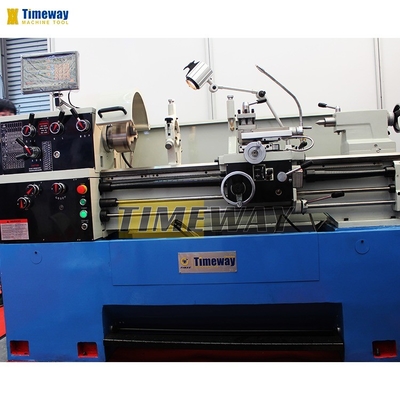

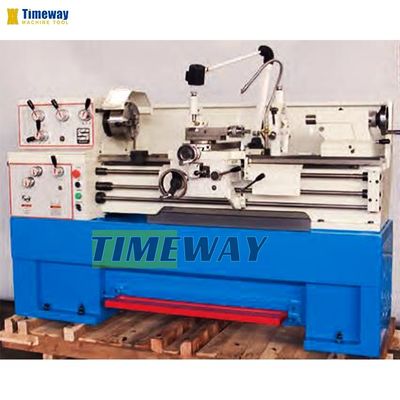

Manual Precision Gear Head Metal Engine Lathe with Range of Spindle Speed 40 1800 r.p.m
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY/TIMAC |
| Model Number: | T-1440W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000mm | Range Of Spindle Speed(r.p.m): | 40 - 1800 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 1.5/2.4 | Dimension(L*W*H): | 1940*760*1520 |
| Weight (KG): | 1200 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Mini Lathe Machine |
| Machine Type: | Horizontal Normal Lathe | Color: | Customers' Request |
| CNC Or Not: | Nomal | Distance Between Centers: | 1000mm |
| Model: | T-1440W | Max. Swing Over Bed: | 356mm |
| Spindle Speed: | 40-1800rpm | Spindle Bore: | 40mm |
| Main Motor: | 1.5/2.4kw | Condition: | New |
| Spindle Bore(mm): | 40 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction Works |
| Showroom Location: | Egypt, Canada, Russia, Algeria, Romania, Kyrgyzstan, Japan, Australia | Core Components: | Motor, Gearbox, PLC |
| Max. Turned Length (mm): | 1000 Mm | Port: | China Port |
Product Description
Product Description
Precision Gear Head Engine Lathe
T-1440W
Features:
Specification
Specification | Unit | T-1440W |
Max.swing over bed | mm | 356 |
Max.swing over cross slide | mm | 210 |
Max.swing in gap | mm | 508 |
Distance between centers | mm | 1000 |
Spindle nose | D4 | |
Spindle bore | mm | 40 |
Spindle bore taper | M.T.#5 | |
Spindle speed | rpm | 45-1800(12steps) |
Longitudinal feed range | mm/rev | 0.043-0.653 |
Cross feed range | mm/rev | 0.015-0.220 |
Metric threads | mm | 0.4-7 |
Inch threads | TPI | 4-112 |
Tailstock bore taper | M.T.#3 | |
Main motor | kw | 1.5/2.4 |
Net weight/Gross weight | kg | 1200/1300 |
Packing dimension(LxWxH) | mm | 1940x760x1520 |
Accessories
Standard Accessories:
3 jaw chuck
changing gears
dead centers
reductions sleeve
oil gun
coolant system
working light
dead centers
reductions sleeve
oil gun
coolant system
working light
Optional Accessories:
4 jaw chuck
face plate
steady rest
follow rest
chasing dial indicator
liver center
Digital readout system(DRO)
quick change
tool post & holders
tool post & holders
taper turning attachment
