>> Main transmission is driven by AC motor, main drive speed changing with 16steps is controlled by solenoid valves. All gears in the gear-box adopt high frequency quenching process.
>>Worktable adopts the type of rolling guideway, so large loading capacity of worktable and high turning precision.
 |
1250mm Turning Lathe Manual Vertical Lathe Machine with Max. Turned Length of 1000mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | VL1250E/1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $58,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Type: | VERTICAL | Spindle Motor Power(kW): | 22 |
| Voltage: | 380V | Dimension(L*W*H): | 2360*2300*3580mm |
| Weight (KG): | 8300 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Single Column Vertical Lathe |
| Machine Type: | Single Column Vertical Lathe | CNC Or Not: | Normal Lathe Machine |
| Model: | VL1250E/1000 | Max. Turning Diameter: | 1250mm |
| Motor Power: | 22kw | Max. Height Of Workpiece: | 1000mm |
| Max. Weight Of Workpiece: | 5000kg | Worktable Diameter: | 1010mm |
| Machine Weight: | 8300kg | Condition: | New |
| Spindle Bore(mm): | Other | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Home Use, Retail |
| Showroom Location: | Egypt, Canada, Peru, Russia, Algeria | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Engine |
| Max. Turned Length (mm): | 1000 Mm | Port: | China Port |
Product Description
Products Description

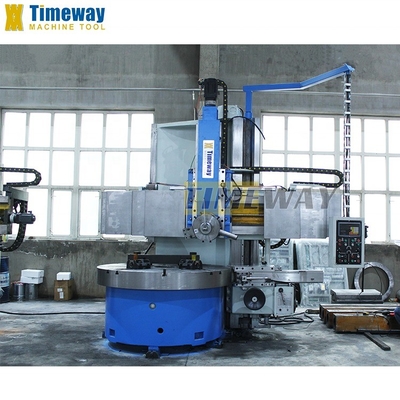

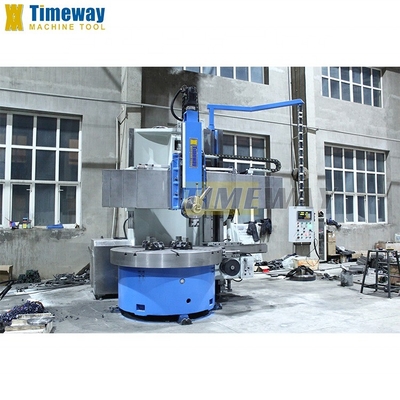

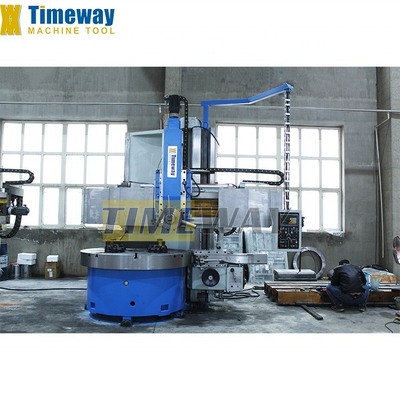

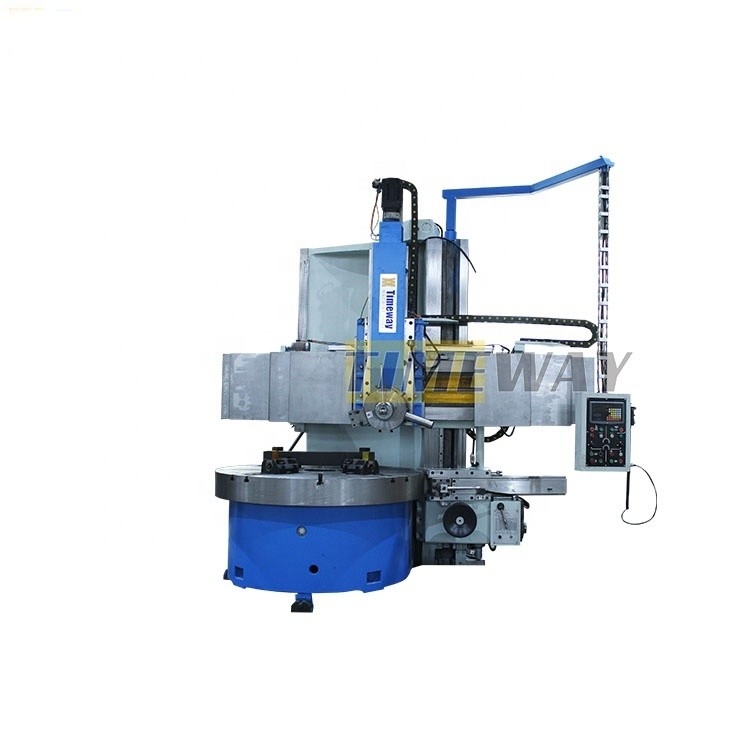

Single Column Vertical Lathe
- Operating panel - Hydraulic system - Lubrication system - Tool holder (1pc) - Work lamp - Tool box & tools - Level wedges & foundation bolts - Boring tool holder (1pc) - Manual pentagon toolpost - Chuck jaws (4pcs) - Pilot lamp - Operation Manuals (English) | - 2 axes DRO - Chip conveyor - Side tool-post |
Specifications | Unit | VL1250E |
Max. swing diameter | mm | 1250 |
Max. turning diameter | mm | 1250 |
Max. height of workpiece | mm | 1000 |
Max. weight of workpiece | kg | 5000 |
Main motor power | kw | 22 |
Worktable diameter | mm | 1010 |
Max. torque of worktable | KN.m | 17.5 |
Worktable speed range | rpm | 6.3-200(16) |
Vertical tool-post feed speed | mm/min | 0.8-86(12) |
Tool-post rapid feed speed | mm/min | 1800 |
Vertical tool-post swivel angle | ° | ±30° |
Vertical tool-post cross travel | mm | -28-733 |
Vertical tool post vertical travel | mm | 650 |
Side tool-post cross travel | mm | 630 |
Side tool-post vertical travel | mm | 900 |
Max. cutting force of vertical tool-post | KN | 20 |
Max. cutting force of side tool-post | KN | 20 |
Machine net weight | kg | 8300 |
Machine dimension (LxWxH) | cm | 236x230x358 |

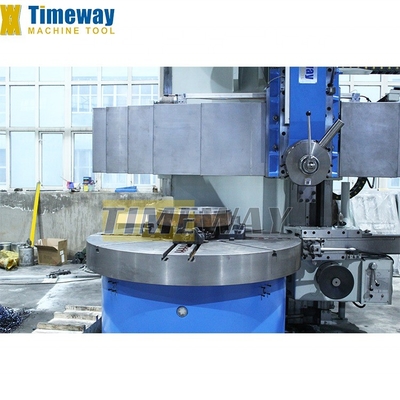

Machine Details
This machine is suitable for mechanical processing of all industries. It can be used for rough and finish processing of
inside and outside cylinder, cone surface, end face, grooving and cutting, as well as boring internal hole.
inside and outside cylinder, cone surface, end face, grooving and cutting, as well as boring internal hole.
===================================
===================================
>> Vertical tool-post is equipped with five station tool-post, and adopts high precision rat-gear disk positioning, side tool-post is equipped with four-station tool-post. Both tool-posts adopt hydraulic balance.
>>Horizontal and Vertical feed of vertical tool-post use the sliding screw driving; vertical and horizontal feed of side tool-post adopt gear-rack driving.
>>Both tool-post are driven by 3-ph AC motor, the type of guideway is sliding guide rail, and the guideway paste high
strength PTFE soft belt.
>>Horizontal and Vertical feed of vertical tool-post use the sliding screw driving; vertical and horizontal feed of side tool-post adopt gear-rack driving.
>>Both tool-post are driven by 3-ph AC motor, the type of guideway is sliding guide rail, and the guideway paste high
strength PTFE soft belt.
===================================

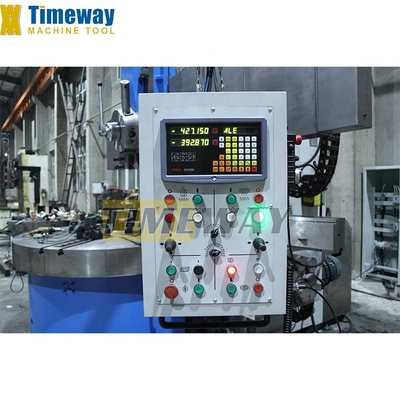

>> The machine uses PLC control, high reliability, electrical wiring in accordance with the process execution.
===================================
>> The foundation part is whole casting structure, using high strength and low stress cast iron material, annealing after
casting, aging treatment after rough machining. The column guide rail adopt grinding processing, beam guide and ram
guide adopt grinding processing after the intermediate frequency quenching
casting, aging treatment after rough machining. The column guide rail adopt grinding processing, beam guide and ram
guide adopt grinding processing after the intermediate frequency quenching
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts (only for CNC lathe):
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
