11kw Spindle Motor Power Swing 630mm Mental Horizontal Lathe for Heavy Duty Sales
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | AL-630B/4000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 4000 | Range Of Spindle Speed(r.p.m): | 7.5 - 1000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 11 | Voltage: | 380V |
| Dimension(L*W*H): | 2958*1393*1537mm | Weight (KG): | 6300 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2023 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Manual Metal Lathe Machine | Machine Type: | Horizontal Normal Lathe |
| Model: | AL-630B/4000 | Color: | Customized Option |
| Swing Over Bed: | 630mm | Spindle Bore: | 100mm |
| Distance Between Centers: | 4000mm | CNC Or Not: | Normal Lathe Machine |
| Motor Power: | 11kw | After-sales Service Provided: | 1 Year |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Home Use, Retail | Showroom Location: | Egypt, Canada, South Korea, Chile, Algeria, South Africa |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox | Max. Turned Length (mm): | 4000 Mm |
| Port: | China Port | ||
Product Description
Products Description

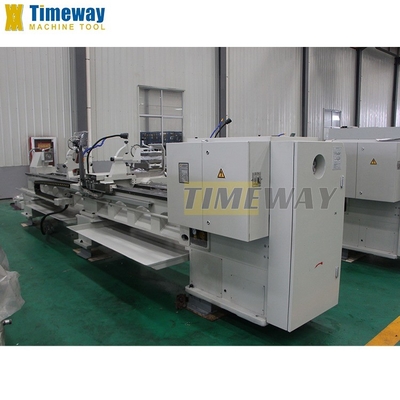

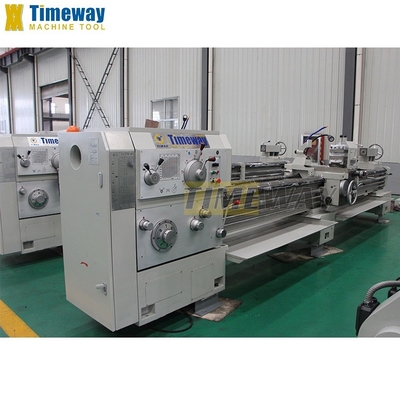

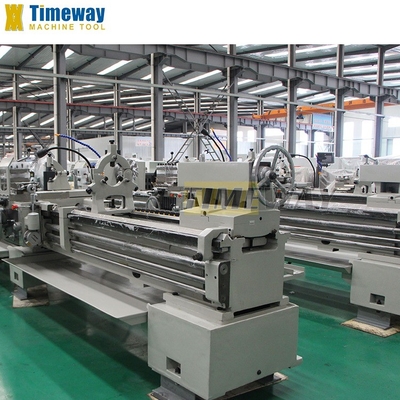

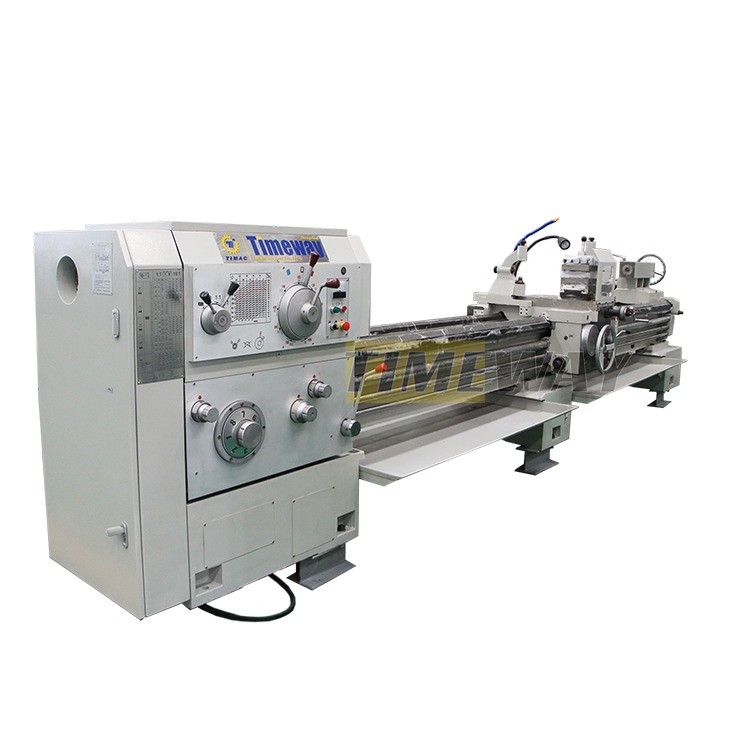

Heavy Duty Horizontal Lathe AL-630B
Technical Parameter
Specifications | Unit | AL-630B | AL-800B | AL-940B | ||
Swing over bed | mm | 630 | 800 | 940 | ||
Swing over carriage | mm | 350 | 520 | 660 | ||
Max. length of workpiece | mm | 500/1000/1500/2000/3000/4000/5000/6000/8000 | ||||
Max. turning length | mm | 600/850/1350/1850/2850/3850/4850/5850/7850 | ||||
Swing over gap (optional) | mm | 830 | 1000 | 1140 | ||
Effective width of gap (optional) | mm | 300 | 300 | 300 | ||
Span of guideway | mm | 550 | 550 | 550 | ||
Max. weight of workpiece | kg | 2000 | 2000 | 2000 | ||
Spindle nose | - | C11 | C11 | C11 | ||
Spindle bore | mm | 100 | 100 | 100 | ||
Taper hole of spindle | - | Metric 120 | Metric 120 | Metric 120 | ||
Range of spindle speeds | r/min | 7.5-1000 | 6-800 | 6-800 | ||
No. of spindle speeds | steps | 18 | 18 | 18 | ||
Longitudinal feed speed | mm/r | 0.1-24.32 (64) | 0.1-24.32 (64) | 0.1-24.32 (64) | ||
Cross feed speed | mm/r | 0.05-12.16 (64) | 0.05-12.16 (64) | 0.05-12.16 (64) | ||
Screw pitch of leadcsrew | mm | 12 | 12 | 12 | ||
No. and range of metric thread | mm | 1-240 (50) | 1-240 (50) | 1-240 (50) | ||
No. and range of inch thread | - | 14-1 (26) | 14-1 (26) | 14-1 (26) | ||
No. and range of module thread | mm | 0.5-120 (53) | 0.5-120 (53) | 0.5-120 (53) | ||
No. and range of dia. thread | - | 28-1 (24) | 28-1 (24) | 28-1 (24) | ||
Rapid traverse speed | mm/min | 4000 | 4000 | 4000 | ||
Max. travel of cross slide | mm | 440 | 540 | 570 | ||
Max. travel of top slide | mm | 200 | 200 | 200 | ||
Section of tool shank | mm | 32x32 | 32x32 | 32x32 | ||
Dia. of tailstock quill | mm | 100 | 100 | 100 | ||
Travel of tailstock quill | mm | 250 | 250 | 250 | ||
Taper hole of tailstock quill | - | MT5 | MT5 | MT5 | ||
Main motor power | kw | 11 | 11 | 11 | ||
Accessories
Standard accessories: Optional accessories:
· 4-jaw independent chuck · Steady rest (over 3M length) · Follow rest (over 3M length) · Electric moving tailstock · Dead center of tailstock · 4-station tool post · Cooling system · Work lamp · Tools & tool-box · Leveling wedge and bolts · Operation manual (English) | · Face plate · 2 or 3-axis digital indicator · Chuck guard · Tool-post guard · Rear splash guard · Quick changing tool post |
Company Video
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

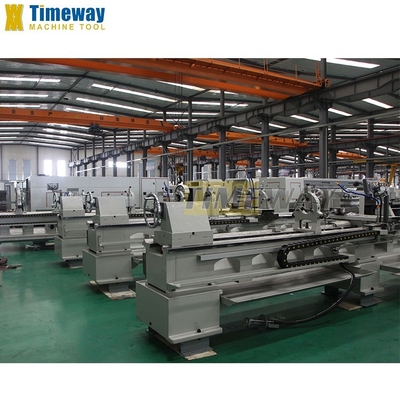

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
